Filter Press Feed Pump

A Filter Press Feed Pump is a type of industrial pump specifically designed to supply slurry or liquid material to a filter press machine. Filter presses are used for separating solids from liquids, sometimes called particulate matter (PM), in various industrial processes, such as wastewater treatment, mining, chemical processing, and food production.

The feed pump plays a crucial role in delivering the slurry to the filter press chambers under pressure, facilitating the filtration process.  The correct selection of a filter press feed pump is essential, as it needs to

1.       With stand wear from the slurry being transported to ensure longevity

2.       Deliver the required pressure suitable for the materials being processed to ensure sufficient filtration and water extraction

3.       Ensure flow capacity meets the design of the press

4.       Operate as efficiently as possible

North Ridge Pumps supplies a comprehensive range of pumps for varying industrial applications - view pumps for filter press feed applications here.

Importance of Filter Press in Industrial Processes

Filter pressing in industrial processes is a process whereby excess water is removed from slurries or sludges separating concentrated solid particles.  As industries actively work towards reducing their environmental impact, utilising a filter press is beneficial for a number of reasons:

• Reduces waste disposal: By removing and collecting nonrequired particles in a fluid, the volume of waste is reduced and the resulting ‘cake’ can then be disposed of in line with local protocols.

  One of the most significant expenses in waste disposal comes from using tankers to transport liquid waste, which can cost between £10 and £25 per cubic meter of water – around £750 per tanker. Waste disposal costs can be vastly reduced by treating wastewater on-site and avoiding the need for tankering waste with the resultant waste water disposed of utilising existing sewer networks (providing discharge consent is obtained) at a much lower cost.

• Saves water: By recycling filtered water within processes, there is less demand for freshwater resources.  This is particularly important for mining where water is required in large quantities and mines are located in remote areas often far from fresh water sources, or where small towns may be located which are heavily reliant on nearby reservoirs or lakes meaning there is little spare resource.

• Complies with environmental requirements: By effectively separating solids from liquids, filter press applications help in maintaining compliance with local discharge limits and environmental standards.

How a Filter Press Works

There are three ways filter presses work:

Polishing – to remove small impurities from liquids such as small particles consisting of sediment, water and microbial contamination. Examples of everyday use include fuel polishing.

Fixed volume or batch–filter presses are designed to hold a specific quantity of solids and must be started and stopped to remove the separated solid waste known as cake, sludge or filter cake

Variable volume - also known as diaphragm or membrane plate where membrane plates filter the cake more effectively than other methods reaching a dry content of between 30-80%. Filtration time is also reduced by up to 50%.

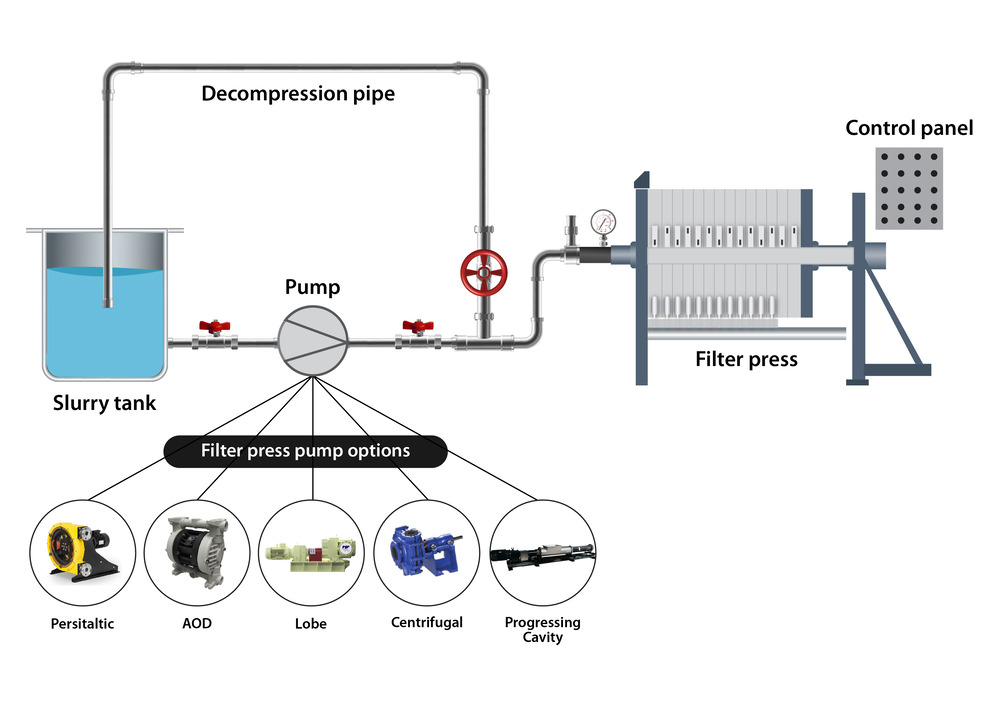

How Filter Press Feed Pumps Work

Filter press feed pumps operate by utilising mechanical energy to create fluid flow and pressure. The process begins when the slurry is fed into the pump’s inlet. The pump then increases the pressure of the slurry, forcing it through the filter press chambers. This high pressure is necessary to overcome the resistance of the filter media and the build-up of solid cake within the chambers.

The operation can be broken down into two primary phases: the filling phase and the filtration phase. During the filling phase, the feed pump operates at a high flow rate but with lower pressure to quickly fill the filter press chambers with slurry. Once the chambers are filled, the pump transitions to the filtration phase, where it operates at a lower flow rate but much higher pressure. This pressure forces the liquid component of the slurry through the filter cloths or plates, leaving the solid particles behind.

Benefits of Using Filter Press Feed Pumps

Filter presses are workhorses in various industries, but achieving optimal performance hinges on a crucial component – the filter press feed pump. These pumps play a far more significant role than simply delivering slurry such as;

• Increased Efficiency: A properly selected feed pump ensures a consistent and controlled flow of slurry into the filter press chambers. This eliminates fluctuations that can compromise cake formation and filtration efficiency. Modern pumps equipped with variable speed drives can dynamically adjust their output based on real-time pressure and volume demands. This optimisation minimises energy consumption and ensures the filter press operates at its peak efficiency.

• Minimises Downtime and Costs: Traditional pumps can be prone to clogs and breakdowns, leading to costly downtime for your processing operation. Modern feed pumps are designed for durability and reliability, featuring wear-resistant materials and efficient non clogging operation. This translates to fewer disruptions, reduced maintenance needs, and ultimately, greater productivity and lower overall operating costs.

• Maximises Productivity and Output: By ensuring a smooth and consistent feed, filter press feed pumps directly impact output. This means increased processing capacity, and higher filter cake yields, and reduced water discharge and associated disposal costs.

Beyond these core benefits, advanced feed pumps offer additional advantages:

• Reduced Environmental Impact: Energy-efficient pumps minimise the environmental footprint of filtration processes.

• Versatility: Modern feed pumps can handle diverse slurry types, ensuring compatibility with various applications.

Investing in a well-suited filter press feed pump is an investment in efficiency, productivity, and overall cost savings. By ensuring a smooth, controlled flow of slurry, these pumps mean fully optimised filter press processes.

Factors to Consider When Choosing a Filter Press Feed Pump

Selecting the optimal filter press feed pump is vital for efficient and cost-effective filtration. Here are some key factors to consider:

1. Pump Capacity and Pressure:

Capacity: Match the pump's flow rate to your filter press's processing requirements. A pump with insufficient capacity will lead to bottlenecks and hamper filtration efficiency. Conversely, an oversized pump can be wasteful and inefficient.

Pressure: The pump should deliver adequate pressure to overcome the resistance of the filter media and achieve optimal cake formation. Insufficient pressure can result in poor separation and lower quality filter cakes.

As filter presses begin to fill, it is important that outlet pressure can increase, and flow decrease for maximum press efficiency.

2. Compatibility with Filter Press Systems:

Size and Connection: Ensure the pump's physical dimensions and connection points are compatible with your existing filter press.

Slurry Characteristics: Consider the specific properties of your slurry, such as viscosity and solids content. The pump should be designed to handle these characteristics effectively. For example, abrasive slurries might require a pump with wear-resistant materials.

Variable Speed: As presses fill, pumps should be reduced in speed without suffering damage from overheating. Extra fan cooling of motors will help protect motors from wear.

3. Reliability and Durability:

Downtime is costly. Choose a pump with a reputation for reliability and minimal maintenance requirements. Look for features like robust construction, wear-resistant materials, and efficient cleaning mechanisms.

Design: Peristaltic pumps make an excellent choice for filter presses as their non clog design and lack of valves ensure wear is minimised and they remain easy to maintain. AOD pumps which are a lower initial investment and offer high flows can clog more easily due to the presence of internal valves, and Progressing cavity pumps can prove difficult to maintain.

Dry Running: If sludges or slurries contain large quantities of dry matter, dry running of pumps is a potential hazard. Having a design resistant to dry run damage should be considered in such scenarios.

Replacement parts: Consider the availability of spare parts and after-sales support for prompt maintenance and repairs if they are needed.

Control Systems: Consider pumps offering user-friendly control systems for ease of operation and monitoring.

Types of Filter Press Feed Pumps

Centrifugal pumps, diaphragm pumps, peristaltic pumps and lobe pumps are the four main types of pumps used for filter press feed applications, each with its own advantages and limitations. Here's a breakdown:

Centrifugal Pumps:

Pros: Widely available, cost-effective solution for low to medium viscosity slurries. Efficiently handle large volumes at moderate pressures.

Cons: Not suitable for high viscosity or shear-sensitive slurries. Can be susceptible to cavitation at high pressures. May require additional equipment to achieve hthe igh pressures needed for some filter press applications.

Diaphragm Pumps:

Pros: Excellent for handling viscous, abrasive, and shear-sensitive slurries. Self-priming capability allows for dry running. Offer good pressure control and can handle solids.

Cons: Generally higher initial cost compared to centrifugal pumps. Flow rates may be lower than centrifugal pumps for equivalent power. Diaphragms require periodic replacement, adding to maintenance costs, and if not selected correctly the pump itself will act as a filter due to the presence of balls and valves evident in its design.

Peristaltic Pumps:

Pros: Ideal for the gentle pumping of shear-sensitive materials and slurries containing large solids. Excellent self-priming capability. Offer high containment and minimise contamination risk due to closed-loop design. Easy to maintain with only one wearing part and is of non clog design.

Cons: Limited flow rates compared to other pump types. Higher initial investment cost.

Lobe Pumps

Pros: High Flow design

Cons: High Initial investment cost, limited pressure generating and solid handling capability, low self priming ability.

Choosing the right pump type depends on your specific needs. Consider factors such as:

Slurry characteristics (viscosity, solids content, shear sensitivity)

• Required flow rate and pressure

• Budgetary constraints

• Maintenance requirements

Progressing Cavity Pumps

Progressing cavity pumps are highly effective in filter press applications as they have the ability to handle high flows and pressures. These pumps operate by using a helical rotor within a stator, creating cavities that move fluid progressively from the inlet to the outlet, ensuring a consistent and pulsation-free flow.

One of the significant advantages of progressing cavity pumps in a filter press process is their variable speed range capability, which allows them to efficiently manage abrasive slurries at different viscosities. Additionally, they are self priming and can handle dry matter and accommodate large solids or non-flowing mixtures. This flexibility makes them suitable for a variety of applications where other pump types might struggle.

A downside of progressing cavity pumps is that their maintenance can be a challenge due to the complexity of the rotor-stator mechanism which can wear out over time.  This is especially important when handling abrasive materials.  In addition, the seals require monitoring and may need flushing in order to prevent contamination, and ensure smooth long-term operation.  These steps add to the system's complexity and maintenance needs, and should to be factored into the operational costs of the process.

In some cases, a combination of pump types might be the best solution. For example, a centrifugal pump could be used for initial filling, and a diaphragm pump could handle the final pressing stage.

As an independent pump specialist, we can help you determine the optimal pump type for your specific filter press application.

AOD Vs  Peristaltic Pumps for Filter Press Applications

Two pump types often take centre stage when it comes to filter press applications; Air-operated double diaphragm (AODD) pumps and peristaltic pumps. Both offer unique advantages depending on your needs.

The Benefits of AODD Pumps in Filter Press Pumping:

• They excel at handling abrasive, viscous, and even shear-sensitive slurries. Their positive displacement design ensures consistent flow regardless of solids content.

• AODDs are heavy duty and can generate significant pressures to make efficient cake formation and better separation.

• Self priming and dry running capability means that operational fluctuations can be managed with ease.

• They can handle harsh operating environments, low temperatures, and require less frequent servicing compared to some peristaltic pumps.

• Generally, AODD pumps offer a lower initial investment compared to peristaltic pumps. However, operating costs may be slightly higher due to compressed air usage.

• ATEX and Hygienic options depending on your application

Disadvantages of AODD Pumps:

• While AODDs can handle some shear-sensitive materials, they may not be ideal for highly delicate slurries where minimal agitation is crucial.

• The stability and efficiency of an AODD pump depends on the compressed air supply, and requires the air supply to be at an equal or greater pressure than the liquid being pumped.  This may limit their use to low pressure applications.

• Over time AODD pumps can start to act like filters as solids increase or remains within the pump – reducing efficiency.

• The design features balls and seats which can become eroded meaning increased maintenance costs and potential downtime.

Peristaltic Pumps:

• Simple design and easy to maintain.  They do not utilise valves or seals, which can often be a point of failure in alternative pump designs.

• Great for applications requiring minimal product shearing. Their low pressure and closed-loop design prevents contamination and ensures gentle handling of delicate materials.

• Compatible with most chemical applications

• Peristaltic pumps have excellent self-priming capabilities, making them ideal for applications where the pump inlet might be located above the liquid level.

Limitations of Peristaltic Pumps:

• As peristaltic pumps typically operate at lower flows compared to AODD pumps, their use may be limited.

• Higher initial investment but lower maintenance costs when compared to an AODD pump.

Which Industries are Filter Press Feed Pumps Used In?

Filter press feed pumps play a crucial role in numerous applications, ensuring smooth and efficient separation of solids from liquids. Here's a glimpse into how these pumps are used in various industries:

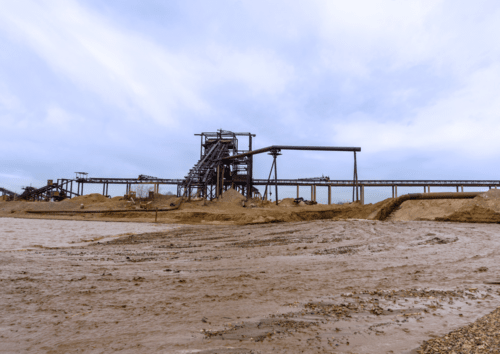

Mining and Metallurgy: In the mining and processing of minerals, filter press feed pumps handle heavy slurries containing crushed ore, sand, and metal concentrates. They ensure consistent delivery of these materials to the filter press for efficient dewatering and extraction of valuable minerals.

Chemical Processing: Chemical manufacturing often involves processes like precipitation and crystallisation, which generate slurries requiring solid-liquid separation. Filter press feed pumps deliver these slurries to the filter press for efficient recovery of valuable chemical products and separation of unwanted solids. For example, they might be used in processes like dewatering sludge generated during wastewater treatment processes.

Food and Beverage Industry: Filter press pumps are silent heroes in food & beverage production. They ensure a smooth flow of liquids with solids (fruit juices, sugar syrups) into filter presses. There, separation occurs, resulting in clearer, purer final products (juices, syrups, wine, beer). From clarifying broths to extracting oils, these pumps contribute to efficient, high-quality food & beverage production.

Beyond these examples, filter press feed pumps are also used in:

Wastewater Treatment: Dewatering sludge generated during wastewater treatment processes.

Pharmaceutical Production: Separating solids from bio products during fermentation and purification processes.

Textile Processing: Dewatering fabrics after dyeing and washing processes.

These are just a few examples of how filter press feed pumps contribute to efficient and cost-effective solid-liquid separation across a wide range of industries. By ensuring a consistent and controlled feed, they enable filter presses to operate at peak performance.
