North Ridge Pumps 11 March 2022

Piping - P&ID Symbols

Below you will find a selection of P&ID symbols for use with equipment. All these images are free to use.

We also have P&ID symbols available for; equipment, heat exchangers, instrumets, valves, and vessels.

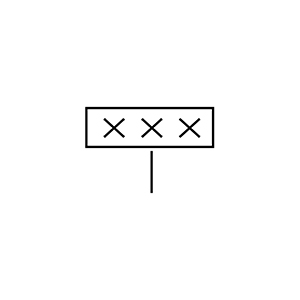

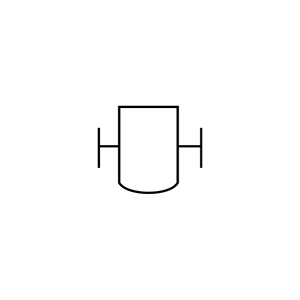

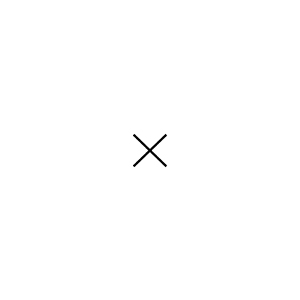

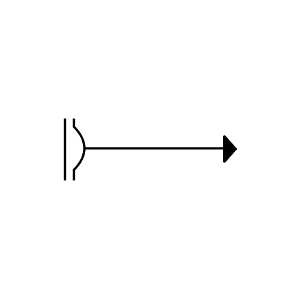

Basket StrainerBasket Strainer PID SymbolBreatherBreather PID SymbolBurstingBursting PID SymbolButt WeldButt Weld PID Symbol

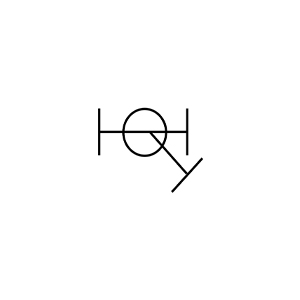

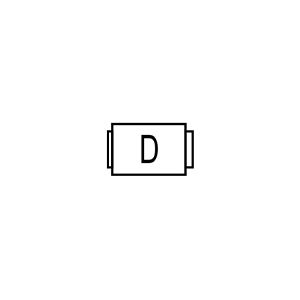

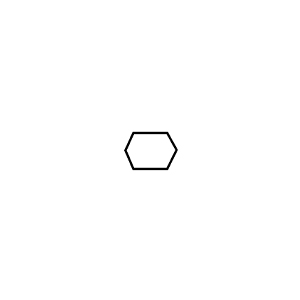

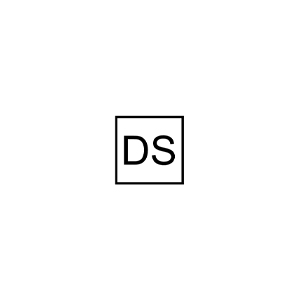

DesuperheaterDesuperheater PID SymbolDetonation ArresterDetonation Arrester PID SymbolDiverter ValveDiverter Valve PID SymbolDouble ContainmentDouble Containment PID Symbol

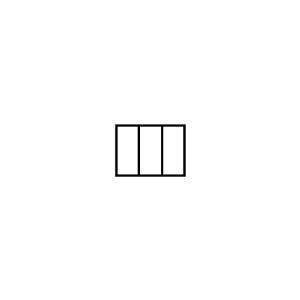

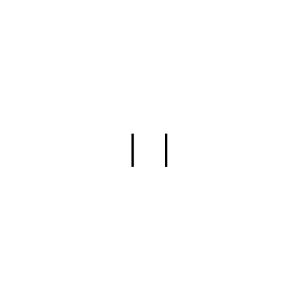

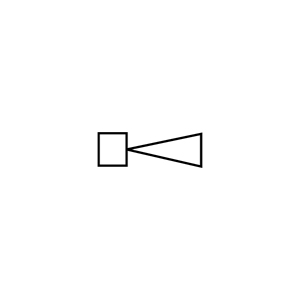

Drain SilencerDrain Silencer PID SymbolDuplex StrainerDuplex Stainer PID SymbolEjector or EductorEjector or Eductor PID SymbolElectronically InsulatedElectronically Insulated PID Symbol

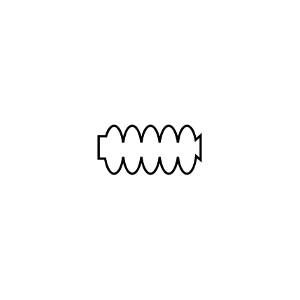

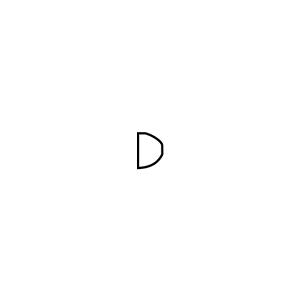

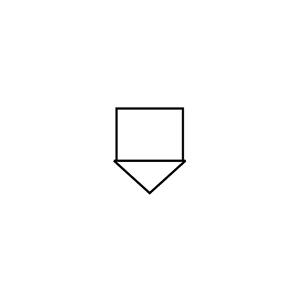

End CapEnd Cap 2 PID SymbolEnd CapEnd Cap PID SymbolExhaust HeadExhaust Head PID SymbolExpansion JointExpansion Joint PID Symbol

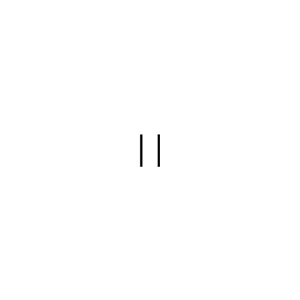

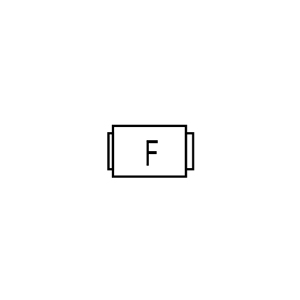

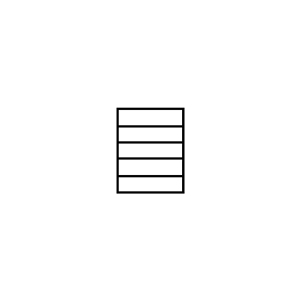

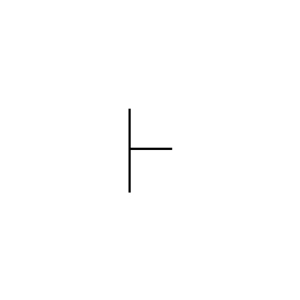

Flame ArresterFlame Arrester PID SymbolFlame ArresterFlame Arrestor 2 PID SymbolFlangeFlange 2 PID SymbolFlangeFlange PID Symbol

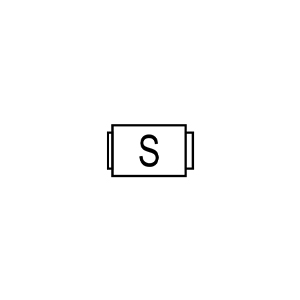

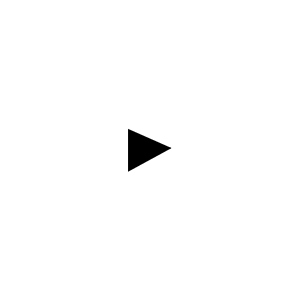

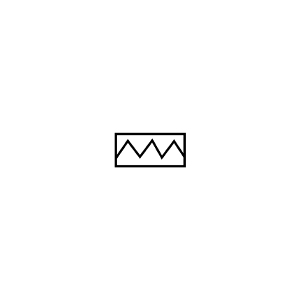

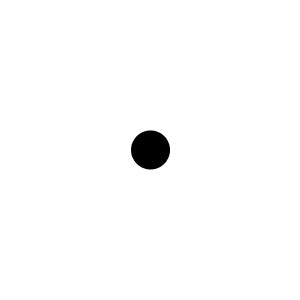

Inline MixerInline Mixer PID SymbolInline SilencerInline Silencer PID SymbolMechanical LinkMechanical Link PID SymbolMid-ArrowMid-Arrow PID Symbol

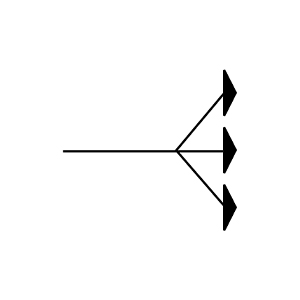

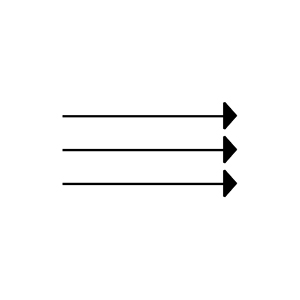

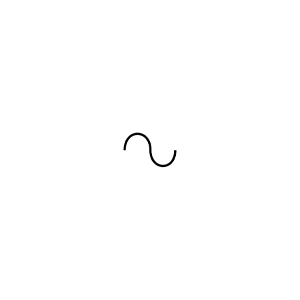

Multi-LinesMulti-Lines PID SymbolNuclearNuclear PID SymbolOne to ManyOne to Many PID SymbolOpen VentOpen Vent PID Symbol

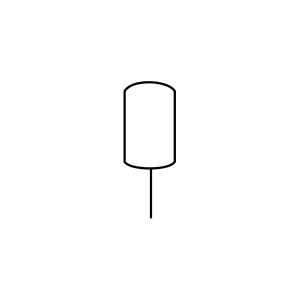

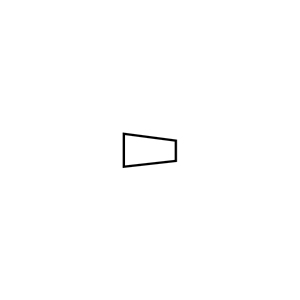

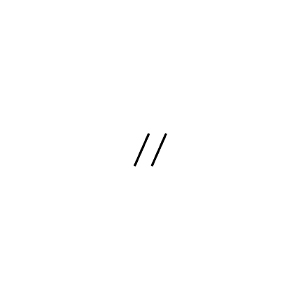

PneumaticPneumatic PID SymbolPulsation DampenerPulsation Dampener PID SymbolReducerReducer PID SymbolRemovable SpoolRemovable Spool PID Symbol

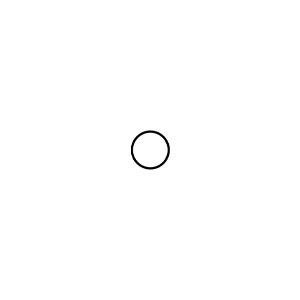

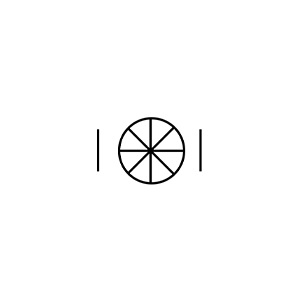

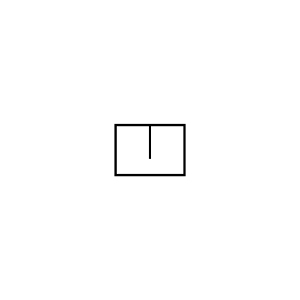

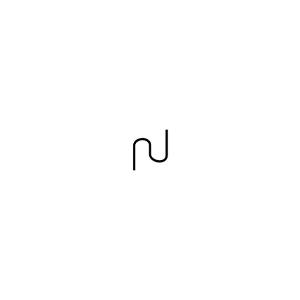

Rotary ValveRotary Valve PID SymbolSeparatorSeparator PID SymbolSiphonSiphon PID SymbolSoldered or SolventSoldered or Solvent PID Symbol

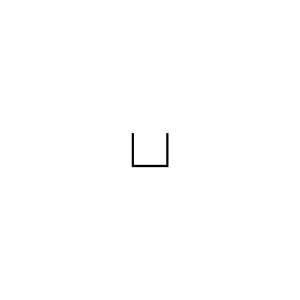

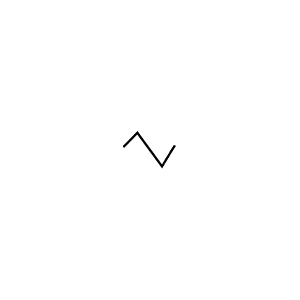

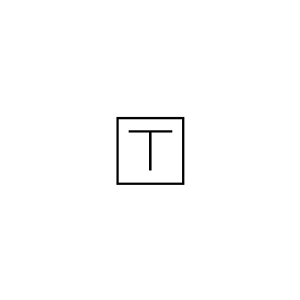

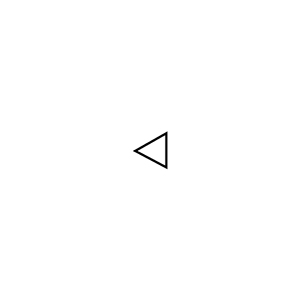

Sonic SignalSonic Signal PID SymbolSteam TrapSteam Trap PID SymbolTop to TopTop to Top PID SymbolTriangle SeparatorTriangle Separator 2 PID Symbol

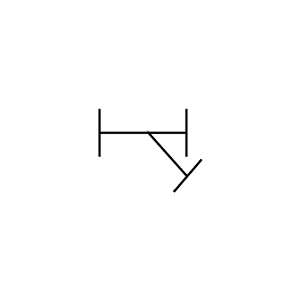

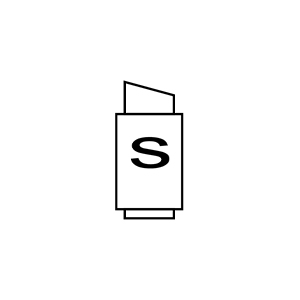

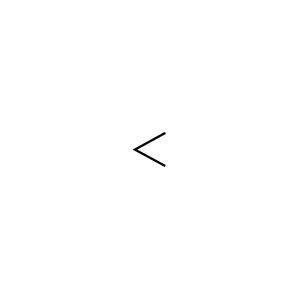

Triangle SeparatorTriangle Separator PID SymbolTundishTundish PID SymbolVent SilencerVent Silencer PID SymbolY Type StrainerY Type Strainer PID Symbol


Download the Piping P&ID Symbols PDF
