IMO Spare Parts

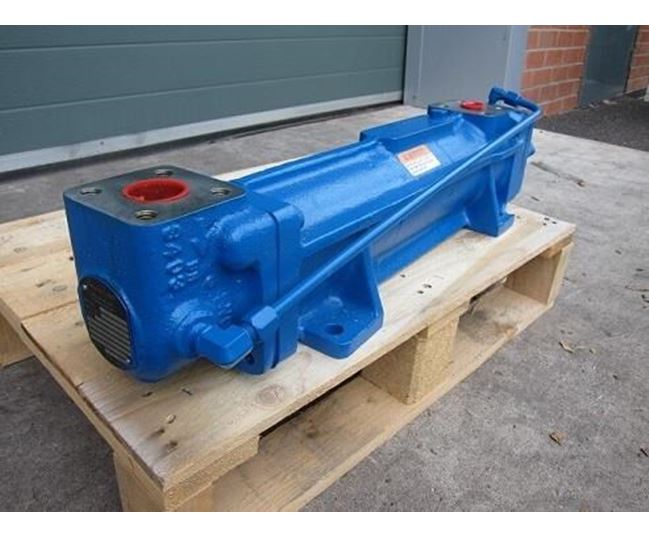

IMO Pumps have been manufacturing pumps since the 1920s, they are a leading manufacturer of positive displacement triple screw pumps and gear pumps. Manufacturing adheres to ISO 9001 management systems and they have been awarded TS 16949 certification.

They supply pumps for various industries, including; crude oil refineries, chemical, marine, oil and gas, power generation and many more. Fluids being pumped must have lubricating properties for the pump to function correctly, common fluids include; low sulphur gas oil, marine diesel, heavy fuel oil and jet fuel.

North Ridge Pumps have a great deal of experience supplying spare parts for Imo pumps and supplying exact replacement pumps or dimensionally interchangeable pumps from alternative manufacturers.

Below are some of the common models we supply spare parts for.

ABF 125-3N4M	ACG 045 K6 IVBPP
ACD 025 L6 IVBP T45Q	ACG 045 K7 NVBP
ACE 025 N2 NTBP	ACG 045 K5 ITB
ACE 025/032 XX-XVXX	ACG 045 K5/NTBP
ACE 025 L3 NTBP	ACG 052 K5 NTBP
ACE 025 N3 NQBP	ACG 052 K7 NTBP
ACE 025 N3 NTBP	ACG 052 N5 NTBP
ACE 032 L3 NVBP	ACG 052 N7 NTBP
ACE 038 K2 NVBP	ACG 052 N7 NVBP
ACE 038 N3 NTBP	ACG 052 N5
ACE 038 D3 NTBP	ACG 060 K5 IVBP
ACE 038 K2 NTBP	ACG 060 XX IVBP
ACE 038 K3 NQBP	ACG 060 XX XVXX
ACE 038 K3 NTBP	ACG 060 XXIVBP
ACE 038 K3 NVBP	ACG 060 N7 NTBP
ACE 038 N1 ITBO	ACG 06x5xVxx
ACE 38 N2 NTBP	ACG 070 K5 IVBP
ACE 032 L3 NQBP	ACG 070 K7 NTBP
ACF 090 K4 IRBP	ACG 070N6 IVBO
ACF 090-3N3F	ACG-52-2 N3
ACF 090 N4 IRBP	ACP 038 N3NVBP
ACF 110 L4 IRBO	ACP 045K
ACF-110-3N2F	ACP 045N
ACF-90-3N2F

Contact North Ridge Pumps for IMO-related enquiries

FAQS

What spare parts do you supply?

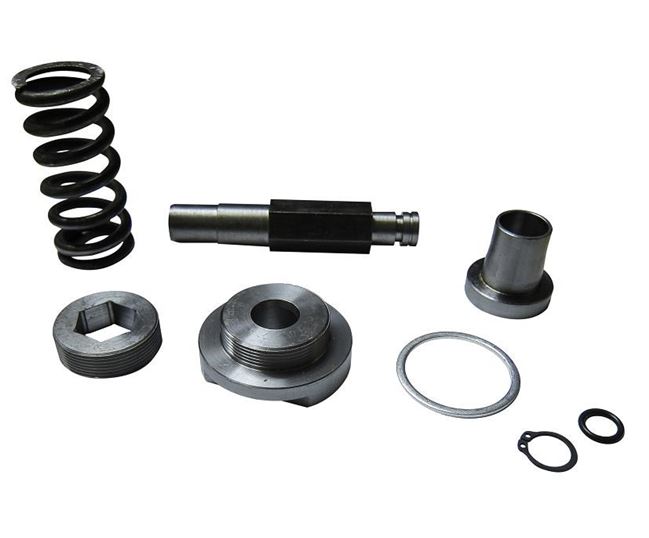

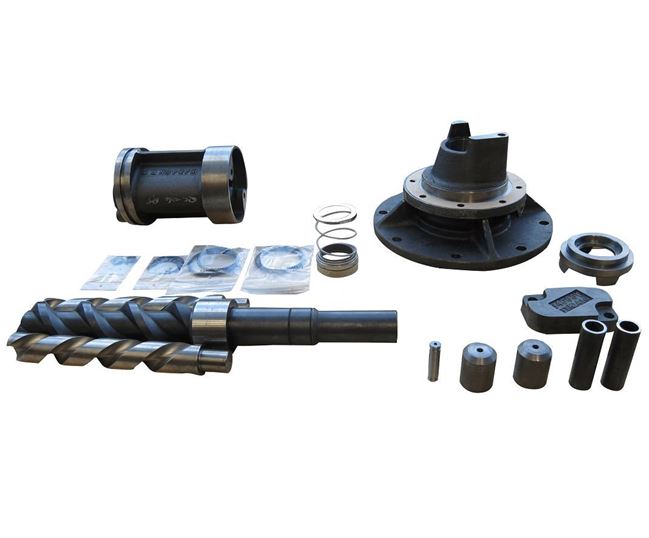

We supply all parts associated with Imo screw pumps, these include; driving screws, idler screws, screw sets, casings, mechanical seals, o-rings and gaskets. Any parts labelled on the drawing and parts list are available for purchase, either individually or as part of a kit. Various overhaul kits are available for minor to major overhauls.

How do I identify what spare parts I need for my pump?

The pump needs to be disassembled and inspected as part of a maintenance program to correctly identify any damaged parts. The drawing and parts list then need to be viewed to find the correct part description and position number.

What information do you require to provide a quotation for spare parts?

The basic information required to obtain a quotation includes; the pump model number, serial number if available, description or name of the part and the position number of the part if available. This information allows us to correctly identify the parts required and to identify the correct materials.

My pump needs to be repaired frequently, is there something wrong?

Premature pump failure can be an indication of system problems or incorrect pump selection. Common causes of premature pump failure include; incompatibility of the pump materials with the fluid, incorrect pipework size, incorrect type of pump and incorrect size of pump. We can help identify the cause of your pump failure if you provide the following information; description of the application, fluid being pumped, viscosity, temperature, flow rate required, pressure required, inlet conditions and bore of pipework.

Should I purchase spare parts and repair my pump or purchase a complete new pump?

This depends on several factors; how frequently are spare parts required? how long has the pump been in operation? and the price of the required spare parts versus the cost of a complete new pump. For example, if a new casing, screw set and mechanical seal are required, then it is more cost effective to purchase a complete new pump as a large proportion of the high value parts are required. If the pump is wearing frequently and prematurely, then this may be an indication that the wrong type or size of pump is installed. It is a good idea to talk to us in this situation as we may be able to identify the issue with your pump or system and select a more suitable pump for your requirements.

I am not happy with the pump I currently have, can you provide an alternative?

Yes, we can help. We can select an alternative type, size or brand of pump if you provide the following information; description of the application, fluid being pumped, viscosity, temperature, flow rate required, pressure required, inlet conditions and bore of pipework. Using a different type or size of pump that is more suited to your application could help reduce your running and maintenance costs.

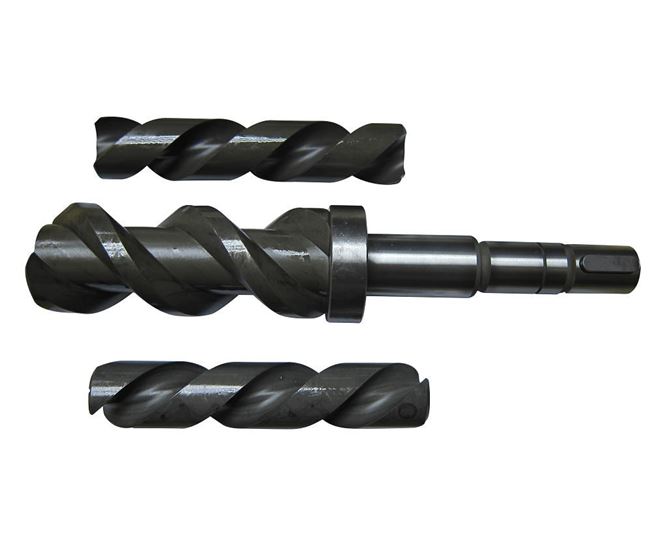

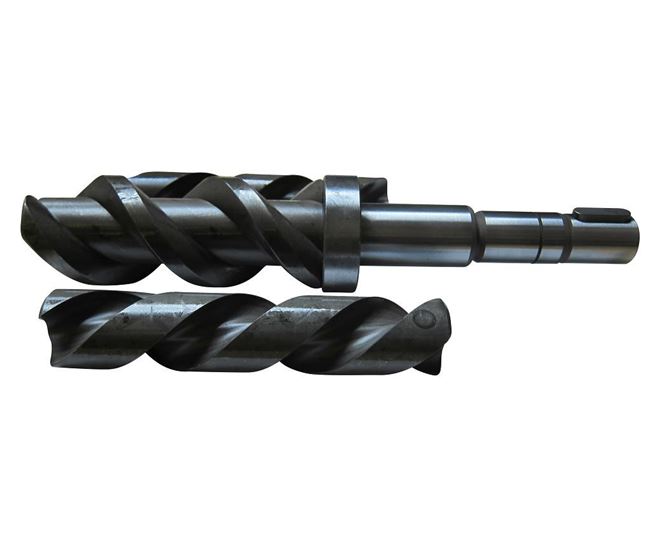

What Parts are in an G012 Rotor Set Kit?

This kit contains the power rotor or driving spindle, 2 idler rotors, a shaft key and balancing piston. They are sold as a set as the parts must intermesh and have very small clearances. They are sold as a set individually (G012) or included as part of a major overhaul kit with gaskets and seals in the G054 Major Kit. An overview can be seen in our IMO Spare Part coding PDF above
