Product code: EQUAFLUX 51

North Ridge Equaflux 51 Pulsation Dampener

Pump Type - Accessories

Max Head - 80M

Pump Materials - AISI316, PP, PPS-V, PVDF

Max Temp - 95°C

Max Viscosity - 15,000 cst

Max Solid Passage - 0.5mm

Self Priming - N

Inlet/Outlet Sizes - 12mm to 19mm

Max Suction Lift - 0

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

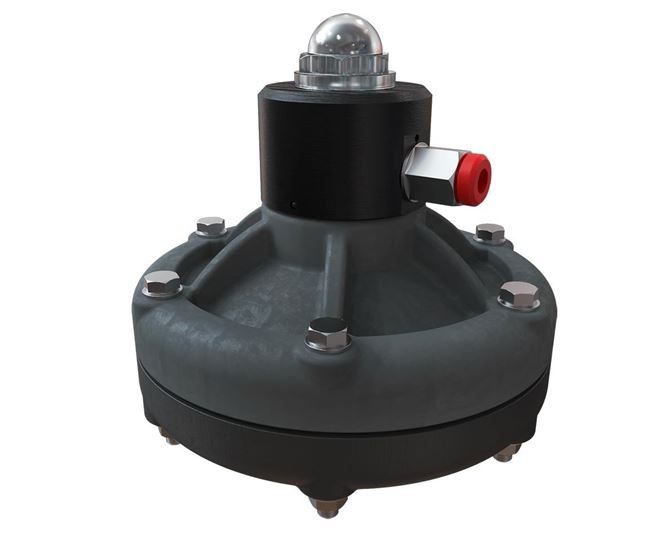

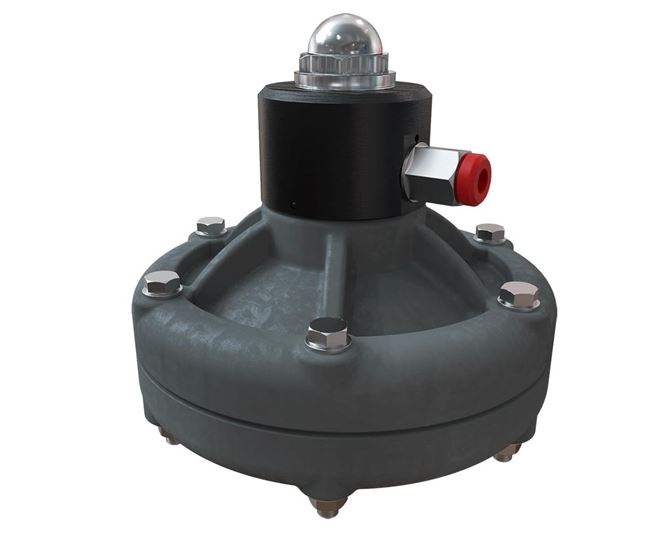

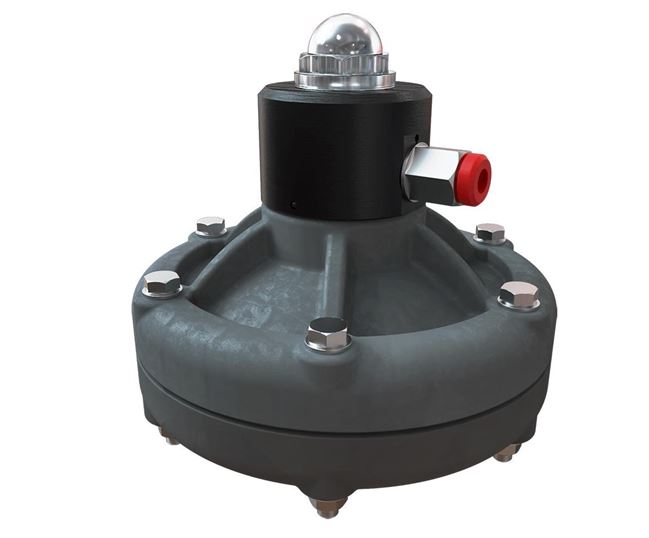

EQUAFLUX 51 Pulsation Dampener

Maximum air supply pressure	8 Bar
Inlet/Outlet Sizes	G 3/4” to G 1/2”
Operating Temperature	Up to 65°C (PP) Up to 95°C (PVDF, PPS-V, AISI 316)

The EQUAFLUX 51 pulsation dampener is installed downstream of the pump to reduce pulsations and create a smooth and laminar flow. The casing can be manufactured in many materials, including; polypropylene, PVDF, PPS-V and stainless steel 316. The diaphragms come in PTFE as standard, the combinations of material options make this pulsation dampener suitable for use with a wide range of fluids.

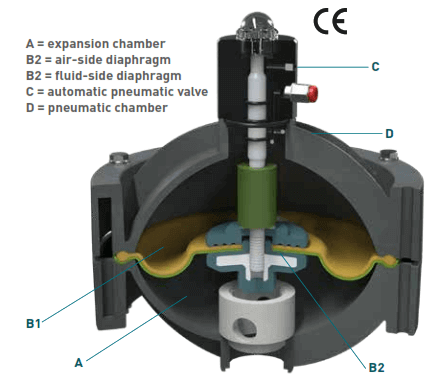

A pulsation dampener works by creating an area of low pressure that absorbs the pulsations emitted by the pump. A diaphragm is fitted that has a cushion of compressed air, this flexes and absorbs the pulsations. The EQUAFLUX 51 is connected to the air line and fed with compressed air, the diaphragm and air work in conjunction and automatically adjust the pressure to minimise pulsations in the pipework. Pulsation Dampener Sectional Drawing

This pulsation dampener can be used with the MIDGETBOX, CUBIC 15 and MICROBOXER pump ranges.

The EQUAFLUX 51 pulsation dampener can be utilised for many fluids in the industrial and marine markets, including; fuels, oils, chemicals, acids, waste water, glues, resins, paints and inks. Applications for this pulsation dampener include; mechanical and metalworking industry, ceramic industry, petrochemical, wastewater treatment, biofuels, marine (bilge, slop, sewage), mining, textile industry, automotive industry, paint industry, cosmetic industry, cleaning industry and ink and print industry

This pulsation dampener is Atex zone 2 as standard meaning it is suitable for operation in non-safe potentially flammable environments. As an option, this can can come in an Atex zone 1 version if required.

Food grade versions of the EQUAFLUX series are also available, these are known as the FOOD EQUAFLUX.

Product summary

• Minimises pulsations, vibrations and water hammer effects in the pipework

• Protects instruments downstream of the pump

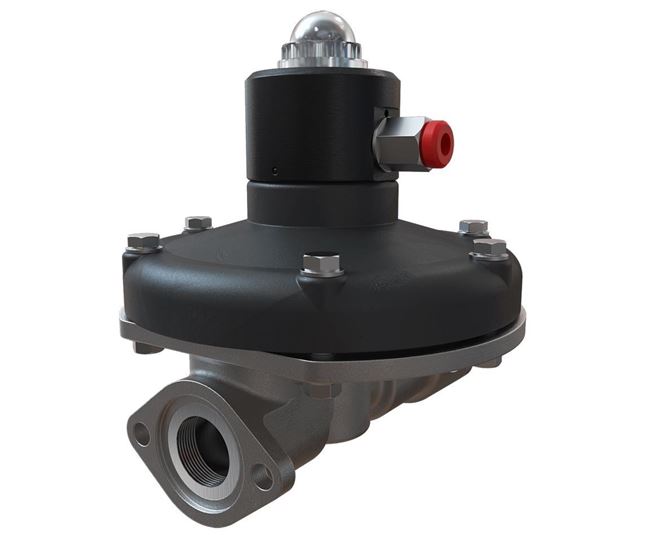

• Casing available in PP, PVDF, PPS-V and Stainless Steel 316

• Diaphragms in PTFE as standard

• Atex Zone 2 as standard II 3/3 GD c IIB T135°C, available in Atex Zone 1 if required II 2/2 GD c IIB T135°C

• Idles without damage

• Can run on non-lubricated air

• Food grade versions available if required, these are known as the FOOD EQUAFLUX

FAQS

What is a pulsation dampener and how does it work?

A pulsation dampener reduces pulsations in the pipework downstream from the pump. A pulsation dampener is typically required if the system is sensitive to pulsations and requires a smooth flow. We offer two main types of dampeners, the accumulator type for our piston/plunger pumps, these are pre-charged with nitrogen to a set pressure, they can cover pressures between 0 and 10000 PSI. The second type we supply are for use with our air driven diaphragm pumps, the Equaflux range are connected to a compressed air line and automatically adjust the pressure between 2 and 8 bar, they work with non-lubricated air and do not require manual adjustments of calibration.

How do I know if my application requires a pulsation dampener?

A pulsation dampener reduces pulsations in the pipework downstream from the pump. A pulsation dampener is typically required if the system is sensitive to pulsations and requires a smooth flow, such as hydrostatic testing or reverse osmosis. Pulsation dampeners or accumulators have additional benefits like reducing vibrations in pipework and extending the life of components downstream from the pump, such as regulating valves. By reducing pulsations and vibrations, the risk of water hammer is significantly reduced, and operators experience less fatigue when using hand operated nozzles.
