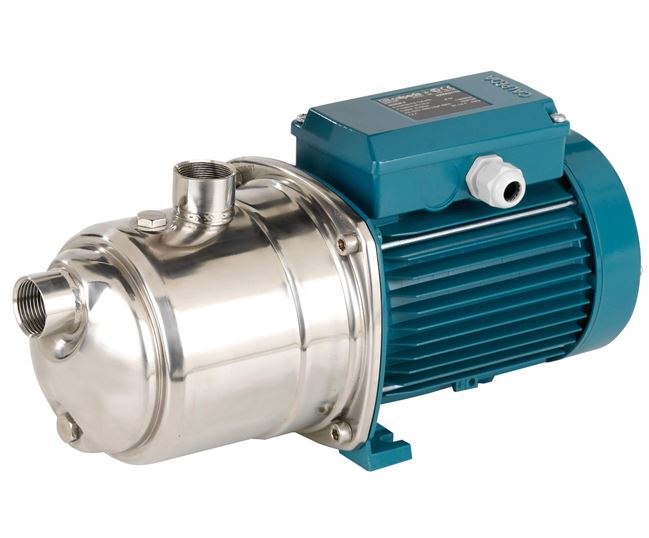

Calpeda MXA Series Horizontal Self Priming Multistage Pump

Pump Type - Multistage

Max Flow Rate M³H - 8 M³H

Max Head - 56M

Pump Materials - Cast Iron

Max Temp - 35°C

Max Viscosity - 10 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 25mm to 32mm

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

Calpeda MXA Series Horizontal Self Priming Multistage Pump

Flow Rate	Up to 8m³/hr
Head (Pressure)	Up to 56m
Inlet/Outlet Sizes	1” to 1 1/4”
Operating Temperature	0°C to +35°C
Drive Options	Electric Motor

The Calpeda MXA series of horizontal self priming multistage pump is constructed from stainless steel 304. It is capable of performing a suction lift height of 8m in ideal conditions. It is close coupled and compact, suitable fluids are clean without solids or abrasives and are compatible with stainless steel (also check seal material compatibility).

The largest self priming multistage pump model is capable of producing high pressures up to 5.6 bar due to its multi impeller design. Any applications involving clean fluids that require high pressure at low flow rates are excellent for this Calpeda pump. Common applications for the MXA pump range include; domestic, pressure boosting, irrigation and garden use.

This Calpeda pump range is supplied with BSP connections as standard.

Motor options include 230V single phase 50Hz and 230V/400V three phase 50Hz, other voltages and 60Hz motors are available on request.

Product Summary

• Horizontal close coupled self priming multistage pump

• Compact design

• Single piece, thick barrel casing

• Suitable for clean fluids without solids or abrasives

• Constructed in stainless steel 304

• BSP connections as standard

• Motor options include; 230V/1Ph/50Hz and 230V/400V/3Ph/50Hz, other voltages and 60Hz available on request

• Filling and drain plugs on pump casing

• IP54 as standard, available in IP55 on request

Read more about Multistage Pumps in our Guide

FAQS

What does the term multistage mean?

Centrifugal pumps typically have only one impeller, whereas a multistage pump has multiple impellers or stages of impellers back to back. Installing the impellers in this way allows the pump to generate much higher pressures. Multistage pumps are perfect for applications that require higher pressures or a combination of high pressure and low to medium flow rates.

What does the term self-priming mean?

A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to around 8m on the inlet side, however this figure is affected by fluid viscosity, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.

Can this pump be used instead of a submersible pump?

Yes, this pump can be installed in a dry area above the sump if the suction lift height does not exceed 8m. A surface mounted pump has many benefits over a submersible pump, one main benefit being that it is easier the access and maintain the pump.

How do I know what size pump and motor speed is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a 4 pole motor rather than a 2 pole motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.

What is NPSH and why is it so important?

NPSH is an acronym for Net Positive Suction Head. NPSH measures the absolute pressure present in a fluid. There are two main ways that NPSH is expressed in a pump system NPSHa - This is the amount of Net Positive Suction Head available at the pump inlet. NPSHa demonstrates the amount of pressure acting on a fluid as it enters the pump. This measures the amount of pressure between the liquid staying in its current state and forming vapour bubbles (beginning to boil). NPSHr - This is the amount of Net Positive Suction Head that the pump requires to operate without experiencing the damaging effect of cavitation, thus causing a dramatic reduction in pump performance. It is very important to pay attention to these values when making a pump selection. Selecting a pump that requires more NPSH than is available in your system will cause fast and long-lasting damage to the pump and thus you will incur large repair costs and downtime.

What does the term best efficiency point (BEP) mean and why is it so important?

The best efficiency point or BEP is a point along the pump performance curve that indicates where efficiency for the pump peaks. When selecting a pump, you must try and get as close to the BEP as possible to ensure that the pump is at maximum efficiency when operating. The closer to the BEP the pump is when operating, the lower the energy costs will be, thus saving significant amounts of money during the pump’s lifetime. Also, vibrations will be at their lowest meaning maintenance costs are lower and the lifespan of the pump is maximised. It is very important to pay attention to the BEP when your pump is selected, as an oversized or undersized pump could cost you significant amounts of money.
