Product code: BT

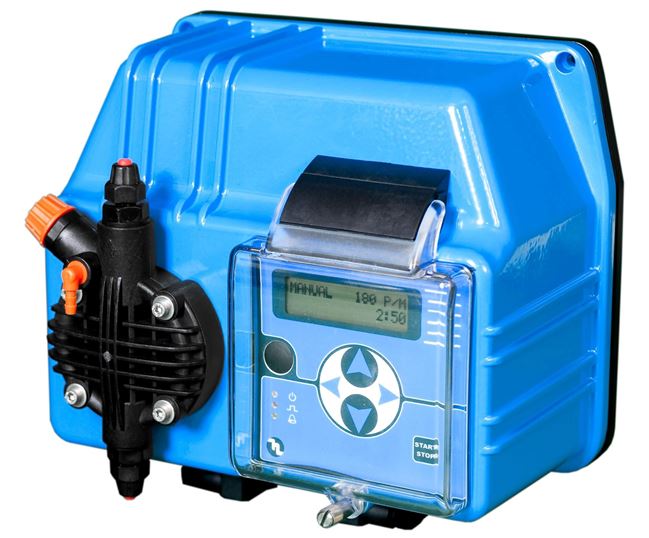

Etatron BT Solenoid Dosing Pump

Pump Type - Dosing and Metering

Max Flow Rate - 0.08M³H

Max Head - 200M

Max Temp - 40°C

Max Viscosity - 500 cst

Max Solid Passage - 0mm

Self Priming - Y

Pump Materials - PP, PVDF

Inlet/Outlet Sizes - 6mm to 25mm

Drive - AC Electric

Max Suction Lift - 3M

DOWNLOADS

DESCRIPTION

Etatron BT Solenoid Dosing Pump


Flow Rate

Up to 80 L/hr

Head (Pressure)

Up to 20 bar

Operating Temperature

Up to 40°C

Viscosity

Up to 500cp

Drive Options

Electric Motor





The Etatron BT range of heavy duty solenoid dosing pumps are excellent for any applications requiring larger precise flow rates up to 80L/hr. This metering pump series can be controlled in various ways depending on application requirements, including; PH levels, water meter, RX and CI regulation and 4—20 mA signal.



The pump head is available in either Polypropylene (PP) or PVDF depending on the nature of the fluid. 30 to 80L/hr and 20 bar pump heads are supplied in PVC. Pump head options are also available with ceramic ball valves or lip valves and optional auto-bleed function. The bracket enables the pump to be foot mounted (BTB version) or wall mounted (BT version) making it versatile for most installation types.



This solenoid dosing pump series is ideal for many applications in the industrial and marine markets, including; chemical dosing for maintaining PH levels in water treatment processes, OEM dosing systems, reverse osmosis, chemical injection and chemical dosing for agriculture.



Product Summary



                      Etatron BT series heavy duty solenoid dosing pump

                      Larger precise flow rates up to 80 L/hr

                      Discharge pressures up to 20 bar

                      Polypropylene pump head as standard, also available in PVDF on request. 30 to 80L/hr and 20 bar pump heads are supplied in PVC.

                      PTFE diaphragms

                      Available with either ceramic ball valves or lip valves, can be supplied with manual or auto-bleed functions. Supplied with FPM (Viton) lip valves as standard. Optional materials include EPDM (Dutral) or TFE/P (Aflas)

                      Casing in aluminium with epoxy coating

                      4-20 mA control available

                      Proportional control available (1xN with memory, 1xN and 1/N)

                      Redox, PX and CI regulation available

                      Level control supported

                      Versatile bracket enables the pump to be foot mounted (BTB version) or wall mounted (BT version)

                      Can handle fluids with viscosities up to 500cp

                      Self-priming

                      IP65 motor protection

                      120V and 230V Single phase 50/60Hz motors

                      Supplied with various accessories as standard, including; Foot filter, injection valve, 2m PVC suction and PE discharge tube, plugs and screws for wall mounting. Foot valve in PP-FPM (Viton). Injection valve in PP-FPM (Viton).


FAQS

Dosing is the act of transferring a small and precise flow rate of fluid into a tank or stream of another fluid. For example, dosing a chlorine chemical into a swimming pool or an additive into a fuel line.
Accuracy varies by range and model, please check data sheets or consult a member of our sales team for exact figures. For example, the Etatron eOne range has a dosing accuracy of +/-5%
Control features vary by range and model, please check data sheets or consult a member of our sales team for exact figures. Some of the control features available include; Manual stroke control, 4-20 mA control available, Proportional control available (1xN with memory, 1xN and 1/N) and level control.
Always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the connections, diaphragms, valves, casing and o-ring. It may be that more than one material is suitable for your fluid and selection could be based on another variable such as temperature.
