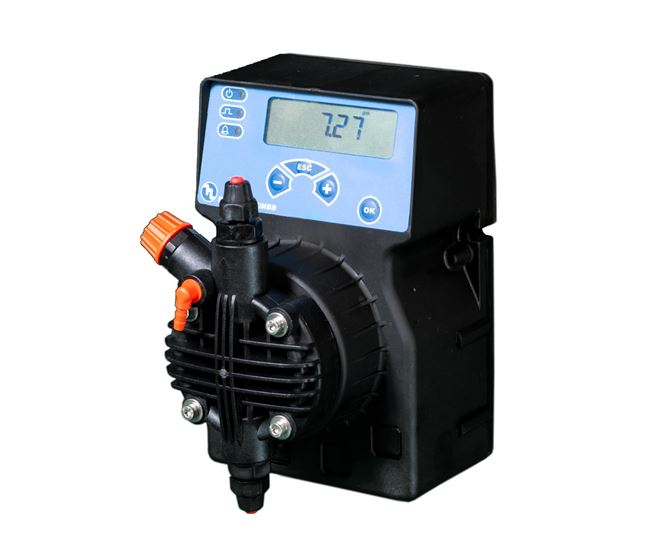

Etatron DLX Solenoid Dosing Pump

Etatron DLX Solenoid Dosing Pump

The Etatron DLX range of solenoid dosing pumps are excellent for any applications requiring low and precise flow rates up to 20L/hr. This metering pump series can be controlled in various ways depending on application requirements, including; PH levels, water meter, RX and CI regulation and 4—20 mA signal.

The pump head is available in either Polypropylene (PP) or PVDF depending on the nature of the fluid. Pump head options are also available with ceramic ball valves or lip valves and optional auto-bleed function. The bracket enables the pump to be foot mounted (DLXB version) or wall mounted (DLX version) making it versatile for most installation types.

This solenoid dosing pump series is ideal for many applications in the industrial and marine markets, including; chemical dosing for car washes, legionella dosing, biocides for cooling towers, chlorine dosing for swimming pools, chemical dosing for maintaining PH levels in water treatment processes, controlling water quality for poultry and livestock, OEM dosing systems, reverse osmosis, chemical injection and chemical dosing for agriculture.

Product Summary

•                      Etatron DLX series solenoid dosing pump

•                      Low and precise flow rates up to 20 L/hr

•                      Discharge pressures up to 20 bar

•                      Polypropylene pump head as standard, also available in PVDF on request

•                      PTFE diaphragms

•                      Available with either ceramic ball valves or lip valves, can be supplied with manual or auto-bleed functions. Supplied with FPM (Viton) lip valves as standard. Optional materials include EPDM (Dutral) or TFE/P (Aflas)

•                      Manual stroke control available (DLXB versions only)

•                      4-20 mA control available

•                      Proportional control available (1xN with memory, 1xN and 1/N)

•                      Redox, PX and CI regulation available

•                      All models except the MA/AD version support level control as standard (probe not supplied), level control in an optional extra for the MA/AD version

•                      Versatile bracket enables the pump to be foot mounted (DLXB version) or wall mounted (DLX version)

•                      Can handle fluids with viscosities up to 200cp

•                      Self-priming up to 2m

•                      120 strokes per minute maximum

•                      IP65 motor protection with acid proof plastic casing

•                      Motors can be supplied in 12VDC, 24VDC, 24VAC and 230V Single phase 50/60Hz

•                      Supplied with various accessories as standard, including; Foot filter, injection valve, 2m PVC suction and PE discharge tube, plugs and screws for wall mounting. Foot valve in PP-FPM (Viton) as standard, available in PVDF (FPM or TFE-P) with ceramic ball valves. Injection valve in PP-FPM (Viton) as standard, available in PVDF (FPM or TFE-P) with ceramic ball valves.
