Product code: EONE

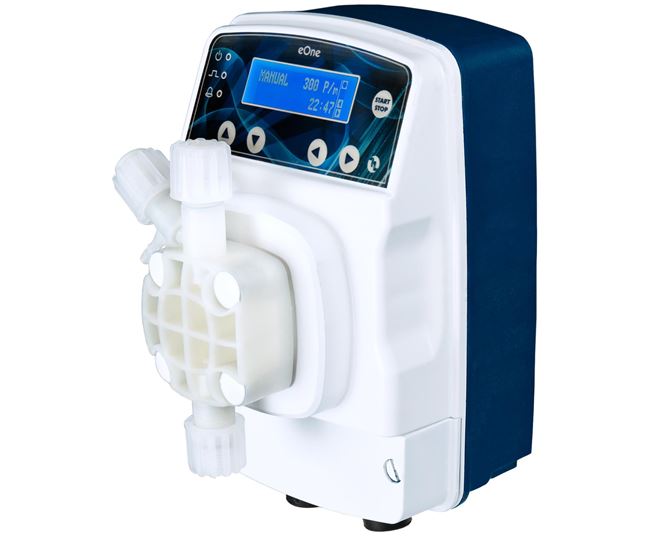

Etatron eOne Solenoid Dosing Pump

Pump Type - Dosing and Metering

Max Flow Rate M³H - 0.03 M³H

Max Head - 200M

Pump Materials - PVDF

Max Temp - 40°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 6mm to 25mm

Drive - AC Electric

Max Suction Lift - 3M

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

Etatron eOne Solenoid Dosing Pump

Flow Rate	Up to 30 L/hr
Head (Pressure)	Up to 20 bar
Operating Temperature	Up to 40°C
Viscosity	Up to 200cp
Drive Options	Electric Motor

The Etatron eOne range of solenoid dosing pumps are state of the art and feature full digital proportional control. Features include overload and under load protection if the dosing system becomes blocked or flow is interrupted in any way. This range is excellent for any applications requiring low and precise flow rates up to 30L/hr as it has a dosing accuracy of +/-5%.

The metering pump head is supplied in PVDF with double ceramic ball valves as standard, it is also fitted with a low energy consumption motor that only consumes 26 watts of energy at maximum pressure.

This solenoid dosing pump series is ideal for many applications in the industrial and marine markets, including; chemical dosing for car washes, legionella dosing, chlorine dosing for swimming pools, chemical dosing for maintaining PH levels in water treatment processes, cleaning in place (CIP), dosing of biocide in cooling towers and chemical dosing for horticulture and agriculture.

Product Summary

• Etatron eOne series digital solenoid dosing pump

• Low and precise flow rates up to 30 L/hr with dosing accuracy of +/-5%

• Discharge pressures up to 20 bar

• PVDF pump head with double ceramic ball valves and TFE-P seals as standard

• PTFE diaphragms

• Proportional dosing control

• Features include overload and under load alarm for dosing system protection

• 4-20 mA control available

• Redox, PX and CI regulation available

• Auto-bleed pump head

• Can handle fluids with viscosities up to 200cp

• Self-priming up to 2m

• 300 strokes per minute maximum

• IP65 motor protection with acid proof plastic casing

• 100-250V Single phase 50/60Hz

• Supplied with various accessories as standard, including; Foot filter, injection valve, 2m PVC suction and PE discharge tube. Foot valve in PVDF-TFE-P with ceramic ball valve. Injection valve in PVDF-TFE-P with ceramic ball valve.

FAQS

What does the term dosing mean?

Dosing is the act of transferring a small and precise flow rate of fluid into a tank or stream of another fluid. For example, dosing a chlorine chemical into a swimming pool or an additive into a fuel line.

How accurate is the flow rate from this pump?

Accuracy varies by range and model, please check data sheets or consult a member of our sales team for exact figures. For example, the Etatron eOne range has a dosing accuracy of +/-5%

What control features does this pump have?

Control features vary by range and model, please check data sheets or consult a member of our sales team for exact figures. Some of the control features available include; Manual stroke control, 4-20 mA control available, Proportional control available (1xN with memory, 1xN and 1/N) and level control.

How do I know what pump materials are correct for my application?

Always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the connections, diaphragms, valves, casing and o-ring. It may be that more than one material is suitable for your fluid and selection could be based on another variable such as temperature.
