NOCCHI JETINOX Self-Priming Stainless Steel Pumps

NOCCHI JETINOX Self-Priming Stainless Steel Pumps

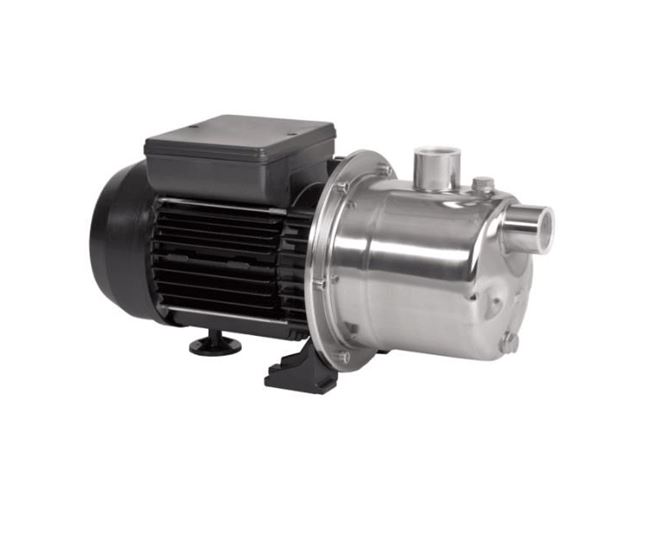

The Nocchi JETINOX stainless steel series of self priming pump is designed mainly for water distribution, pressurised water systems and water lifting applications, these pumps have an integrated ejector that allows  them to perform high suction lifts thus being an ideal pump for lifting water from wells.

The JETINOX pump range is only suitable for clean water.

Common applications include; extracting water from a well, lifting water that contains large amounts of air or gases, boosting water pressure, garden use or jet washing. Pumped fluids must be clean or slightly dirty and free of solid or abrasive particles.

The largest self priming JETINOX pump models are capable of producing pressures up to 5 bar and flow rates up to 80 l/min

Motor options include 230V single phase 50Hz and 230V/400V three phase 50Hz, other voltages and 60Hz motors are available on request.

Design Features/Benefits

•        Suitable for drinking water transfer

•        Stainless steel pump body and shaft

•        Technopolymer impeller and diffuser

•        Horizontal close coupled stainless steel self priming jet pump

•        Can perform high suction lifts – Up to 7 metres with foot valve

•        Compact design

•        Suitable for continuous operation

•        Suitable for clean or slightly dirty fluids without solids or abrasive particles

•        Max. liquid temperature 50 C°

•        BSP connections as standard

•        Motor options include; 230V/1Ph/50Hz and 230V/400V/3Ph/50Hz, other voltages and 60Hz available on request

•        IP44 motor protection – class f insulation

Typical Applications/Fluids:

•        Domestic water boosting systems

•        Potable water

•        Water lifting and distribution

•        Pressurization systems

•        Wells

•        Clean water only without solids
