Product code: PRIOX

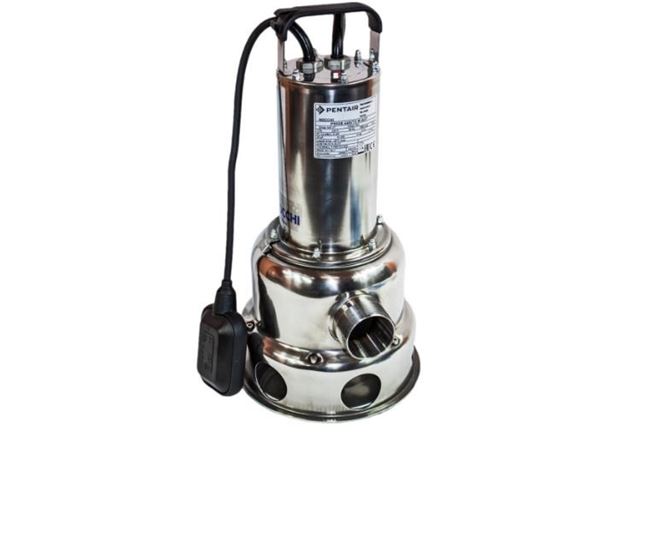

Nocchi PRIOX Stainless Steel Submersible Pumps

Pump Type - Submersible

Max Flow Rate M³H - 48 M³H

Max Head - 18M

Pump Materials - AISI304

Max Temp - 40°C

Max Viscosity - 5 cst

Max Solid Passage - 50mm

Self Priming - N

Inlet/Outlet Sizes - 38mm to 50mm

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Power KW

Select Voltage

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

£723.60 (inc VAT) £603.00 (ex VAT)

This product has a delivery lead time of 1-2 Days

ADD TO CART

DESCRIPTION

PRIOX Stainless Steel Submersible Pumps

Flow Rate	Up to 800 l/min
Head (Pressure)	Up to 18 metres
Sizes Available	1 1/2” - 2”
Solids passage	Up to 50 mm
Drive Options	Electric single and Three Phase Motors
Operating Temperature	Up to 40°C

The PRIOX range of submersible pumps are suitable for both domestic and industrial applications, depending on the pump model and size being used, these pumps have a max. solids passage of 50mm, and a max. operating temperature range of 40°C, thanks to their great performance versatility the PRIOX pumps are a very popular pump range, very commonly used by contractors and pump engineers in general.

PRIOX pumps are manufactured in stainless steel and can be supplied in several different sizes and material configurations to suit almost every domestic or industrial dewatering and waste water applications.

Cooled by heat exchange chamber allowing operation without being completely immersed in water

Most pumps can be supplied with or without float - manual or automatic.

Suitable for clean water or partially dirty with max. 6 mm soft solid particles

7 metres submersion depth

Suitable for continuous usage due to double mechanical seal lubricated in oil chamber

Design Features/Benefits

• Max. submersion depth of 7 metres

• Cooled by pumping liquid

• 60mm min. drying/pumping level – (Manual version)

• Available in both single and 3 phase power supply

• IP-68 protection

• Built-in thermal protection

• Can be supplied with dual mechanical seal

• Mechanical seal lubricated in integrated oil chamber

• Solids passage up to 50 mm for models 600/13 & 800/18 – (40mm for other models)

• Stainless steel construction

Typical Applications/Fluids:

• Industrial sewage draining with max. 40/50mm solids

• Waste water and effluent

• Septic tanks & pits / cesspools

• Drainage / dewatering

• Industrial plants pumping stations

• Black water with max. 40/50mm solids

FAQS

Can this pump run dry?

No, definitely not! submersible pumps will incur damage even after short periods of dry running. The mechanical seal requires lubrication and cooling while the pump is operating. Without the presence of fluid, the mechanical seal will overheat and crack, and this may cause the pump to leak and fluid to enter the motor. There is also the possibility that the motor will burn out as this requires cooling by the fluid during operation. Our advice is to ensure that the pump and motor are always submerged during operation. There are two main ways to ensure the pump only operates in the event of submersion. Firstly, only the operator turns the pump on and off manually when they have a clear view of the sump. Secondly, fit the pump with a float switch that will automatically turn the pump off once the fluid has dropped to a specific level in the chamber. If you think that dry running is inevitable, then please speak to us and we will try to select a more suitable pump for your application.

What do the terms manual and automatic mean?

Manual and automatic are the two main ways to describe how a submersible pump will operate. Manual means that the operator manually turns the pump on and off when required, turning the pump off and avoiding any possible damage from dry running is solely the liability of the operator. Automatic means that the pump will turn on and off automatically via a float switch or float switches. A float switch is connected to the motor that detects the fluid level in the sump, the pump is turned on when the level is high enough, and the pump is turned off when the fluid drops to an acceptable level.

How do I know what size pump is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a 4 pole motor rather than a 2 pole motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.

Can the motor really be submerged in water?

Yes, absolutely! In fact, submersible pump motors need to be submerged in fluid during operation for cooling and to avoid overheating. These motors have an IP rating of 68. IP stands for Ingress Protection, this is a measurement of a component's resistance to dust and fluid entering.

What size solids can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
