Flux F414 3-Phase Motor for high viscosity pumps

Name: Flux F414 3-Phase Motor for high viscosity pumps
Brand: Flux Pumps
Price: 1920.00 GBP
Availability: InStock

Pump Type - Barrel

Self Priming - N

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Power KW

Select Voltage

£1920.00 (inc VAT) £1600.00 (ex VAT)

This product has a delivery lead time of 1-2 Days

ADD TO CART

DESCRIPTION

F414 3-Phase Motor for High Viscosity Pumps

Protection	IP 55
ATEX	N/A
Ventilation	External
Voltage	230-400V 3-Phase
Frequency	50 Hz
Capacity	550, 750, 1100 Watt
Variable Speed	N/A
Weight	8.8 – 12.8 kg

FLUX commutator motors are detachable, compact lightweight drives and yet extremely robust thanks to its heavy duty housing construction, these motors can cover a vast number of applications from light non-frequent to continuous 24/7 operations, the wide capacity range of these reliable and portable motors make them incredibly versatile, with models from 230 to 800 watts these range of motors can cover almost every market/application where a drum or IBC pump might be required and therefore can be used with the vast majority of our Flux pumps.

Depending on the model these motors are available with variable speed control, with internal and external ventilation, with or without no-volt release and protection enclosures from IP-24 to IP-55.

ATEX (explosion proof) certified and high temperature commutator motors are also available, designed for hazardous environments or applications, i.e. highly flammable liquids, petrol stations etc.

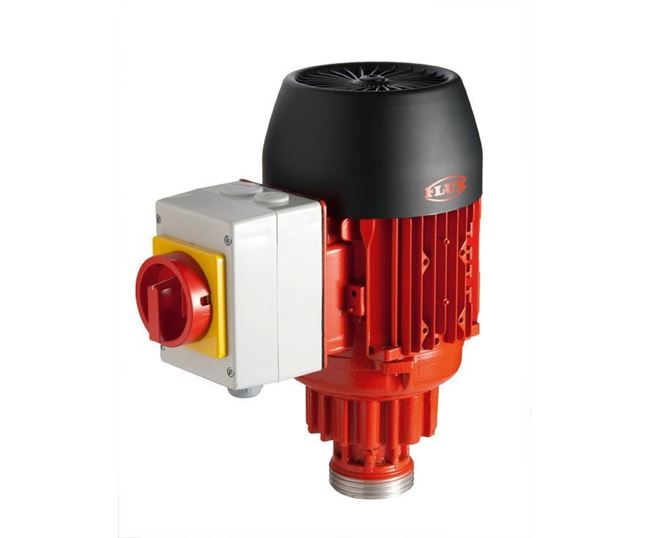

The FLUX F 414 three-phase motor the most powerful drum pump motor in the market, this motor is designed for longer/continuous usage and extreme operating conditions and therefore a great option for heavy duty industrial applications where a robust motor is required, compatible with all flux high viscosity eccentric worm-drive barrel pumps, this jet proof 3-phase gear motor can be supplied with a terminal box connection option or with a motor protection switch for an easy on/off operation.

Design Features/Benefits

• Jet proof – suitable for extreme outdoor operating conditions

• External ventilation.

• IP-55 protection enclosure

• Compatible with all Flux high viscosity eccentric worm-drive pumps.

• Long lifespan and low wear

• Available with integrated protection motor switch or terminal box

FAQS

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the tubeset, impeller, mechanical seal and o-ring. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; PP, PVDF, Stainless steel and aluminium are all suitable for water. If it is a simple transfer application, then the most cost-effective material will be best. However, if it involves another variable to consider such as high temperature, then an alternative material may be a better selection.

There are so many motor types and sizes, which is correct for my application?

There are various motor types, including; air motor, mains powered electric and battery. Selection is either a personal preference or due to site limitations. For instance, if mains power or an air compressor are not available on site, then a battery motor is the obvious choice. The power of the motor will be down to the application details, such as viscosity and flow rate required. An Atex motor will be required if the fluid is flammable or if the pump will be installed in a hazardous area.

Do I need a mechanically sealed pump or a sealless pump for my application?

A mechanically sealed pump is recommended for abrasive, crystallizing, sticky and high temperature fluids. A sealless type pump is be recommended for all other fluid types.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
