Product code: Flux Horizontal F550 R Eccentric Worm-drive Pump

Flux Horizontal F550 R Eccentric Worm-drive Pump

Pump Type - Barrel

Max Flow Rate M³H - 3 M³H

Max Head - 80M

Pump Materials - AISI316

Max Temp - 120°C

Max Viscosity - 80,000 cst

Max Solid Passage - 10mm

Self Priming - N

Inlet/Outlet Sizes - 25mm to 32mm

Drive - AC Electric, Air

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Material

Select Outlet Size (mm)

£2260.80 (inc VAT) £1884.00 (ex VAT)

This product has a delivery lead time of 1-2 Days

ADD TO CART

DESCRIPTION

F 550 R Horizontal Eccentric Worm-Drive Pump

Flow Rate	Up to 50 l/min
Discharge Head	Up to 8 bar
External Tube Diameter	50 – 54 mm
Immersion Length	400 mm
Viscosity	<1 – 80,000 cPs
Fluid Temperature	Max. 120 °C
Pump Tube Materials (External)	Stainless Steel 316
Drive Options	3-Phase Motors, Compressed Air Motors

FLUX barrel pumps also called drum pumps are designed for transferring, emptying or dosing must existing fluids, from low to high viscosity products, these pumps are typically used for fluids that are supplied in containers such as 205 litre/45 gallon drums/barrels, 1000 litre containers called IBC's or Intermediate Bulk Container and also smaller containers 25 litre, 100 litre etc. By using a barrel pump we can avoid having to tip up the container in order to emptying it something than can often be quite dangerous and illegal thus using a drum/barrel pump is the safest and more efficient way of extracting liquid from a drum or container as wastage/spillage during the operation is next to nothing.

There are several pump tube lengths each designed specifically for the various drums and containers available on the market, the most common are 1000 mm for 205 l drums, 1200 mm for IBC's and 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc.

Flux high viscosity barrel pumps are positive displacement mechanically sealed eccentric worm-drive pumps also called progressing cavity pumps, this highly engineered range of pumps is typically used for transferring highly viscous fluids within the industrial, food, cosmetic and pharmaceutical industries, these pumps are available in both vertical and horizontal arrangements to suit a wide variety of containers or specific installations. These range of pumps are divided in two types, the F550 industrial range and the F560 sanitary pumps for food-grade or hygienic applications, both pump types are commonly used to transfer a wide range of products from medium to high viscosity fluids, up to 80,000 cPs. The Flux F550 and F560 pump range is particularly useful for shear sensitive products as thanks to being progressing cavity pumps they are incredibly gentle on the product being pumped.

These high viscosity positive displacement barrel pumps are suitable for both fixed and mobile installations as besides from the standard vertical barrel/drum pump execution they can also be supplied trolley mounted or with a baseplate for horizontal arrangements. ATEX, 3A (FDA) certifications are also available upon request. All models are available with electric or air operated motors, can also be supplied with a VFD/VSD rated motor for variable speed/capacity requirements.

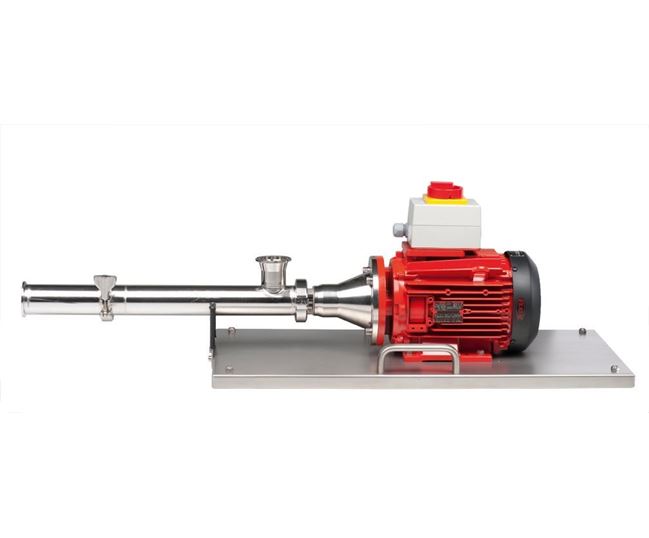

The Flux F550 horizontal eccentric worm-drive pump is available with a variety of electric and air motors, designed for emptying IBC's with floor level openings this horizontal stainless steel pump is ideal for installations with height restrictions where a typical drum pump type is not suitable, it is also available as a mobile solution (trolley mounted) or on a baseplate for fixed installations.

Design Features/Benefits

• Horizontal design for emptying IBC's with floor level openings

• Pump connected to motor via special bearing flange.

• Capable of handling viscous fluids up to 80,000 cPs.

• ATEX (explosion proof) certified upon request.

• Suitable for shear sensitive products.

• Available as a mobile solution (trolley mounted) or on a baseplate for fixed installations.

• 3 phase variable speed motor option available.

• Positive displacement pump – (Capable of maintaining the flow rate at constant pressure)

• Mechanically sealed – prevents any liquid entering the internal tube section.

• Available with electric or air operated motors.

• FDA / Food-grade compliant – (3A equivalent for USA market)

• Highly efficient

• Pulsation free – smooth pumping.

Typical Fluids:

• Low viscosity to high viscosity media

• Oils

• Adhesives

• Binders

• PU foams

• Flocculants

• Glue

• Paint

• Thixotropic

• Gaseous

• Solid or fibrous

• Slightly aggressive or neutral media

Motors Available:

• Three phase motors

• Compressed-Air motors

• Variable speed three phase motors

FAQS

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the tubeset, impeller, mechanical seal and o-ring. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; PP, PVDF, Stainless steel and aluminium are all suitable for water. If it is a simple transfer application, then the most cost-effective material will be best. However, if it involves another variable to consider such as high temperature, then an alternative material may be a better selection.

There are so many motor types and sizes, which is correct for my application?

There are various motor types, including; air motor, mains powered electric and battery. Selection is either a personal preference or due to site limitations. For instance, if mains power or an air compressor are not available on site, then a battery motor is the obvious choice. The power of the motor will be down to the application details, such as viscosity and flow rate required. An Atex motor will be required if the fluid is flammable or if the pump will be installed in a hazardous area.

Do I need a mechanically sealed pump or a sealless pump for my application?

A mechanically sealed pump is recommended for abrasive, crystallizing, sticky and high temperature fluids. A sealless type pump is be recommended for all other fluid types.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
