Product code: HCP F/FN

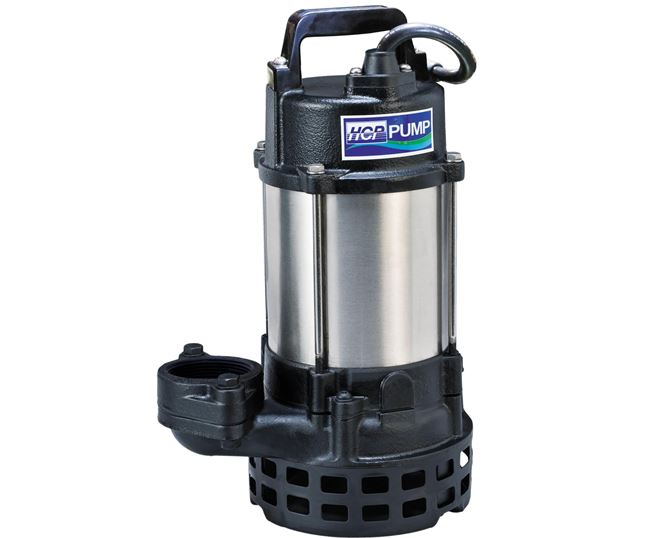

HCP F/FN Series Sewage and Effluent Submersible pump

Pump Type - Submersible

Max Flow Rate M³H - 60 M³H

Max Head - 26M

Pump Materials - Cast Iron

Max Temp - 40°C

Max Viscosity - 10 cst

Max Solid Passage - 35mm

Self Priming - N

Inlet/Outlet Sizes - 50mm to 75mm

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Power KW

Select Voltage

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

Select Float Switch

£306.00 (inc VAT) £255.00 (ex VAT)

This product has a delivery lead time of 1-2 Days

ADD TO CART

DESCRIPTION

HCP F/FN Series Sewage and Effluent Submersible pump

Flow Rate	Up to 60 m³/hr
Head (Pressure)	Up to 26 m
Inlet/Outlet Sizes	2” to 3”
Solids passage	Up to 35mm
Operating Temperature	Up to 40 °C
Drive Options	Electric Motor

The HCP F and FN range of submersible pumps are heavy duty and designed to handle waste water, sewage, effluent and many other fluids that contain suspended solids or fibrous content. There are a many different sized pumps within this range, with the largest capable of achieving flow rates up to 60m³/hr and heads up to 25m.

This HCP F and FN range of sump pumps are available with two impeller types depending on the nature of the fluid being pumped and the types of solids, these are vortex and semi-open impellers.

Common applications for this sump pump include; draining septic tanks, discharging sewage from tanks, draining cesspits, sewage pumping stations, discharging waste water from tanks and sumps, pumping sewage from domestic properties, surface water irrigation, farms, agricultural, draining sewage from commercial buildings, restaurants, hotels and schools, transferring waste water and fluids containing fibrous content from factories. flood control, surface water irrigation, dewatering cellars and basements and agricultural use.

Product Summary

• Robust and high quality HCP F and FN series submersible pump

• Wide range of pump sizes, motor powers, flow rates and heads

• Suitable for waste water, sewage, effluent and other solids laden fluids

• Fitted with Double mechanical seals to ensure an excellent seal and long operational life

• Largest model capable of handling solids up to 35mm (Check capability by model)

• Fitted with auto cut out protection to prevent motor damage if the pump becomes blocked

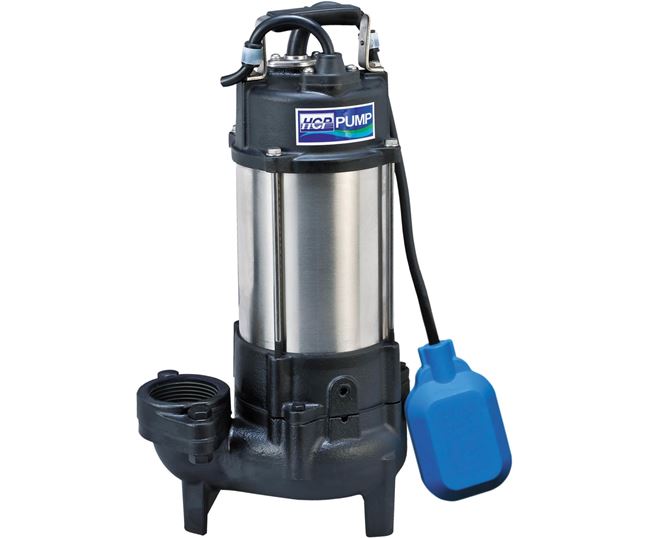

• Can be supplied with or without float switch

• Available with vortex or semi open type impellers

• Single phase and three phase 50hz / 60hz motors

• Epoxy resin sealed cable to protect from water ingress

• Can be customised if required

• IP 68

FAQS

Can this pump run dry?

No, definitely not! submersible pumps will incur damage even after short periods of dry running. The mechanical seal requires lubrication and cooling while the pump is operating. Without the presence of fluid, the mechanical seal will overheat and crack, and this may cause the pump to leak and fluid to enter the motor. There is also the possibility that the motor will burn out as this requires cooling by the fluid during operation. Our advice is to ensure that the pump and motor are always submerged during operation. There are two main ways to ensure the pump only operates in the event of submersion. Firstly, only the operator turns the pump on and off manually when they have a clear view of the sump. Secondly, fit the pump with a float switch that will automatically turn the pump off once the fluid has dropped to a specific level in the chamber. If you think that dry running is inevitable, then please speak to us and we will try to select a more suitable pump for your application.

What do the terms manual and automatic mean?

Manual and automatic are the two main ways to describe how a submersible pump will operate. Manual means that the operator manually turns the pump on and off when required, turning the pump off and avoiding any possible damage from dry running is solely the liability of the operator. Automatic means that the pump will turn on and off automatically via a float switch or float switches. A float switch is connected to the motor that detects the fluid level in the sump, the pump is turned on when the level is high enough, and the pump is turned off when the fluid drops to an acceptable level.

How do I know what size pump is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a 4 pole motor rather than a 2 pole motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.

Can the motor really be submerged in water?

Yes, absolutely! In fact, submersible pump motors need to be submerged in fluid during operation for cooling and to avoid overheating. These motors have an IP rating of 68. IP stands for Ingress Protection, this is a measurement of a component's resistance to dust and fluid entering.

What size solids can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
