Product code: HCP GF

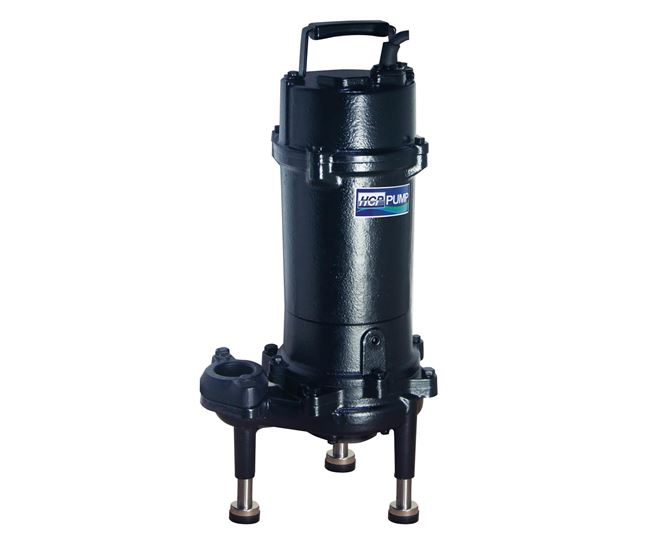

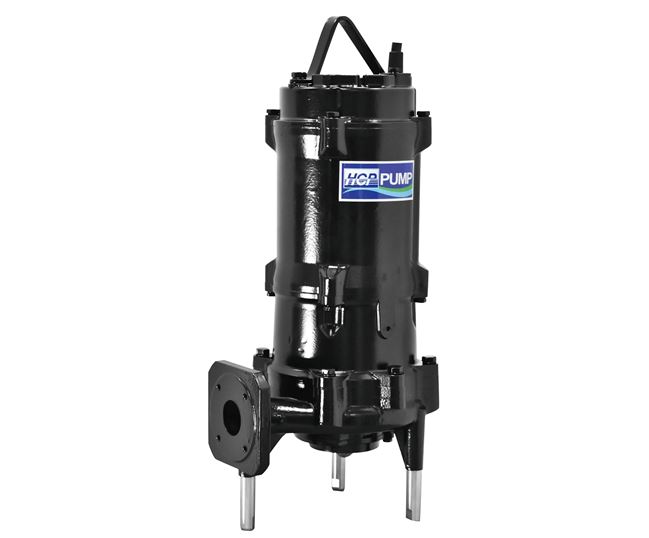

HCP GF Series Submersible Grinder pump

Pump Type - Submersible

Max Flow Rate M³H - 18 M³H

Max Head - 35M

Pump Materials - Cast Iron

Max Temp - 40°C

Max Viscosity - 10 cst

Max Solid Passage - 20mm

Self Priming - N

Inlet/Outlet Sizes - 32mm to 50mm

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Power KW

Select Voltage

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

Select Float Switch

£964.80 (inc VAT) £804.00 (ex VAT)

This product has a delivery lead time of 1-2 Days

ADD TO CART

DESCRIPTION

HCP GF Series Submersible Grinder pump

Flow Rate	Up to 18 m³/hr
Head (Pressure)	Up to 35 m
Inlet/Outlet Sizes	1 1/4” to 2”
Solids passage	Solids destroyed by Grinder
Operating Temperature	Up to 40 °C
Drive Options	Electric Motor

The HCP GF range of submersible pumps are heavy duty and have excellent solids handling capability. This series is fitted with a vortex impeller to prevent clogging and a cutting blade that destroys any solids that enter the pump. The grinder allows the use of smaller diameter pipework and hose for raw sewage applications, this is a very cost effective option when removing sewage from domestic properties and commercial properties such as restaurants, hotels, apartments and hospitals. There are a many different sized pumps within the GF range, with the largest capable of achieving flow rates up to 18m³/hr and heads up to 35m.

Common applications for this sump pump include; pressure sewage systems, discharging sewage from tanks, pumping sewage from domestic properties, sceptic tanks, farms, agricultural, draining sewage from commercial buildings, restaurants, hospitals, hotels and schools, transferring waste water and fluids containing fibrous content from factories.

Product Summary

• Robust and high quality HCP GF series submersible pump

• Fitted with vortex impeller and cutting blade to prevent clogging and destroy solids

• Cutting ring and radial cutter are made from SUS440V and hardened to 55-60 Rockwell C and highly corrosion resistant

• Wide range of pump sizes, motor powers, flow rates and heads

• Suitable for sewage and other solids laden fluids

• Manufactured from high grade cast iron

• Fitted with Double mechanical seals to ensure an excellent seal and long operational life

• Fitted with auto cut out protection to prevent motor damage if the pump becomes blocked

• Can be supplied with or without float switch

• Single phase and three phase 50hz / 60hz motors

• Epoxy resin sealed cable to protect from water ingress

• Fitted with double ball bearings to reduce vibrations and noise levels

• IP 68

FAQS

Can this pump run dry?

No, definitely not! submersible pumps will incur damage even after short periods of dry running. The mechanical seal requires lubrication and cooling while the pump is operating. Without the presence of fluid, the mechanical seal will overheat and crack, and this may cause the pump to leak and fluid to enter the motor. There is also the possibility that the motor will burn out as this requires cooling by the fluid during operation. Our advice is to ensure that the pump and motor are always submerged during operation. There are two main ways to ensure the pump only operates in the event of submersion. Firstly, only the operator turns the pump on and off manually when they have a clear view of the sump. Secondly, fit the pump with a float switch that will automatically turn the pump off once the fluid has dropped to a specific level in the chamber. If you think that dry running is inevitable, then please speak to us and we will try to select a more suitable pump for your application.

What do the terms manual and automatic mean?

Manual and automatic are the two main ways to describe how a submersible pump will operate. Manual means that the operator manually turns the pump on and off when required, turning the pump off and avoiding any possible damage from dry running is solely the liability of the operator. Automatic means that the pump will turn on and off automatically via a float switch or float switches. A float switch is connected to the motor that detects the fluid level in the sump, the pump is turned on when the level is high enough, and the pump is turned off when the fluid drops to an acceptable level.

How do I know what size pump is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a 4 pole motor rather than a 2 pole motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.

Can the motor really be submerged in water?

Yes, absolutely! In fact, submersible pump motors need to be submerged in fluid during operation for cooling and to avoid overheating. These motors have an IP rating of 68. IP stands for Ingress Protection, this is a measurement of a component's resistance to dust and fluid entering.

What size solids can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
