Product code: L Series

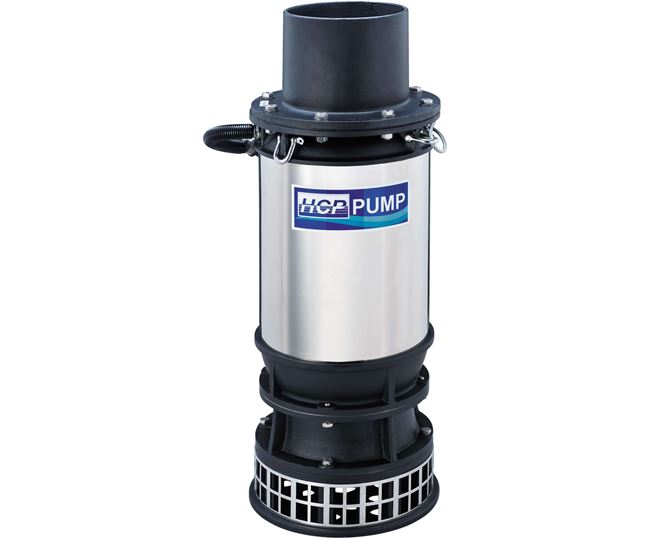

HCP L Series High Flow Rate Submersible pump

Pump Type - Submersible

Max Flow Rate M³H - 480 M³H

Max Head - 7M

Pump Materials - AISI304, NiAl Bronze

Max Temp - 40°C

Max Viscosity - 10 cst

Max Solid Passage - 33mm

Self Priming - N

Inlet/Outlet Sizes - 75mm to 310mm

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

This product has a delivery lead time of 1-2 Days

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

HCP L Series High Flow Rate Submersible pump

Flow Rate	Up to 480 m³/hr
Head (Pressure)	Up to 7 m
Inlet/Outlet Sizes	3” to 12”
Solids passage	Up to 33mm
Operating Temperature	Up to 40 °C
Drive Options	Electric Motor

The HCP L range of submersible pumps are designed for applications requiring high flow rates. The largest model within this range is capable of achieving flow rates up to 480m³/hr and heads up to 7m. All models within this range are manufactured with an aluminium bronze impeller, epoxy coated and supplied with sacrificial anodes making them excellent for use in sea water and marine applications. Certain models are also fitted with bronze upper cover, bearing bracket and mechanical seal bracket adding to corrosion resistance.

Common applications for this sump pump include; water supply and drainage for large flow rate aquaculture applications, brine, flood control, extracting water from docks, power plant cooling, irrigation, high flow rate dewatering, water features, horticulture irrigation and extracting water from lakes, rivers and reservoirs.

Product Summary

• Robust and high quality HCP L series submersible pump

• Capable of flow rates up to 480m³/hr

• Wide range of pump sizes, motor powers, flow rates and heads

• Suitable for fresh water, sea water, brine, river water and rain water

• Fitted with aluminium bronze impeller

• Supplied with sacrificial anodes for corrosion resistance

• Epoxy coated

• Low vibration and noise due to mix flow and axial design

• Fitted with double mechanical seals

• Largest model capable of handling solids up to 33mm (Check capability by model)

• Fitted with auto cut out protection to prevent motor damage if the pump becomes blocked

• Can be supplied with or without float switch

• High efficiency motor

• Tree phase 50hz / 60hz motors

• Epoxy resin sealed cable to protect from water ingress

• IP 68

FAQS

Can this pump run dry?

No, definitely not! submersible pumps will incur damage even after short periods of dry running. The mechanical seal requires lubrication and cooling while the pump is operating. Without the presence of fluid, the mechanical seal will overheat and crack, and this may cause the pump to leak and fluid to enter the motor. There is also the possibility that the motor will burn out as this requires cooling by the fluid during operation. Our advice is to ensure that the pump and motor are always submerged during operation. There are two main ways to ensure the pump only operates in the event of submersion. Firstly, only the operator turns the pump on and off manually when they have a clear view of the sump. Secondly, fit the pump with a float switch that will automatically turn the pump off once the fluid has dropped to a specific level in the chamber. If you think that dry running is inevitable, then please speak to us and we will try to select a more suitable pump for your application.

What do the terms manual and automatic mean?

Manual and automatic are the two main ways to describe how a submersible pump will operate. Manual means that the operator manually turns the pump on and off when required, turning the pump off and avoiding any possible damage from dry running is solely the liability of the operator. Automatic means that the pump will turn on and off automatically via a float switch or float switches. A float switch is connected to the motor that detects the fluid level in the sump, the pump is turned on when the level is high enough, and the pump is turned off when the fluid drops to an acceptable level.

How do I know what size pump is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a 4 pole motor rather than a 2 pole motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.

Can the motor really be submerged in water?

Yes, absolutely! In fact, submersible pump motors need to be submerged in fluid during operation for cooling and to avoid overheating. These motors have an IP rating of 68. IP stands for Ingress Protection, this is a measurement of a component's resistance to dust and fluid entering.

What size solids can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
