Pump Type - Circulator
Max Flow Rate - 72.7M³H
Max Head - 18.9M
Pump Materials - Bronze
Max Temp - 110°C
Max Viscosity - 100 cst
Max Solid Passage - 0mm
Self Priming - N
Inlet/Outlet Sizes - 38mm to 100mm
Drive - AC Electric
Max Suction Lift - 0

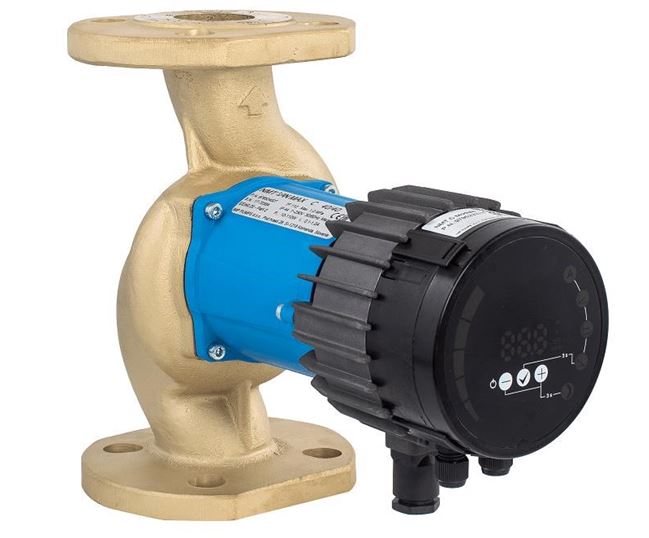

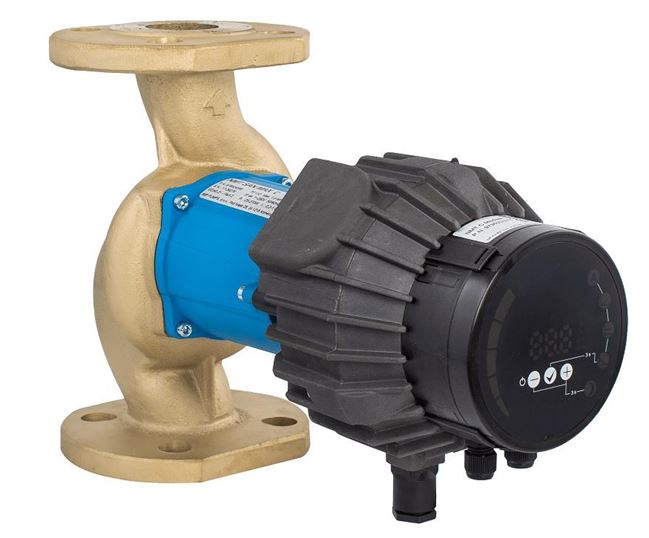

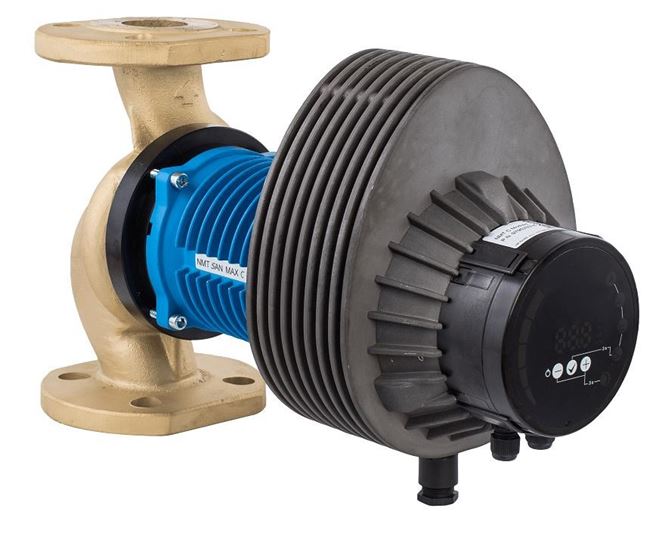

The NMT SAN MAX series of high efficiency inline circulating pumps are designed for applications involving hot and cold water, these include industrial and civil heating systems, air conditioning, HVAC and closed-circuit cooling and sanitary water applications.
Pumped fluids must be clean, free of oils, contain no solids and be non-flammable. Compatible fluids include; hot water, cold water and water and glycol mixtures (check compatibility with glycol concentrations over 20%). The acceptable fluid temperature range is between -10°C and 110°C, the ambient environmental temperature must not exceed 40°C.
The NMT SAN MAX range is fitted with a cutting-edge high efficiency motor that reduces energy consumption during operation.
The control module has 5 easily selected modes depending on system requirements, these are:
Automatic mode – The pump automatically selects the operating pressures depending on the system. This is the recommended operating mode for most systems as the pump finds the optimum operating pressure.
Proportional pressure – The pump will maintain pressure depending on the required flow rate.
Constant pressure – The pump will maintain the pre-set pressure.
Constant speed – The pump will maintain the pre-set speed (RPM).
Night mode – Night mode can be used in conjunction with any of the above modes. The pump will reduce flow, pressure and power consumption when it detects that the liquid temperature has decreased by 15-20°C. The pump will automatically return to normal operating model when the the temperature rises.
Additionally, the NMT SAN MAX series can be fitted with a communication module for remote control (NMT SAN MAX C version).
The communication module allows for various remote-control features, including:
• Remote On/Off
• Analogue 0-10V voltage control
• MODBUS remote control
• Status relay feedback
• Web access via Ethernet
Standard materials are:
Pump casing - Bronze
Impeller - PES
Shaft - Stainless steel AISI 316
Bearings - Graphite
Rotor can - Stainless steel AISI 316
This range is also available with a cast iron pump casing for non-sanitary applications (NMT MAX range).
This range is also available with twin pumps and cast iron casing (NMTD MAX range).
Additional product details:
· ECM permanent magnet technology for high energy efficiency
· LED control display
· Flanged connections
· Built-in motor protection
· Quiet operation
· Automatic air venting
· Compact and robust
· 230V Single Phase, 400V Three Phase 50Hz or 60Hz motors
