Product code: JS GS

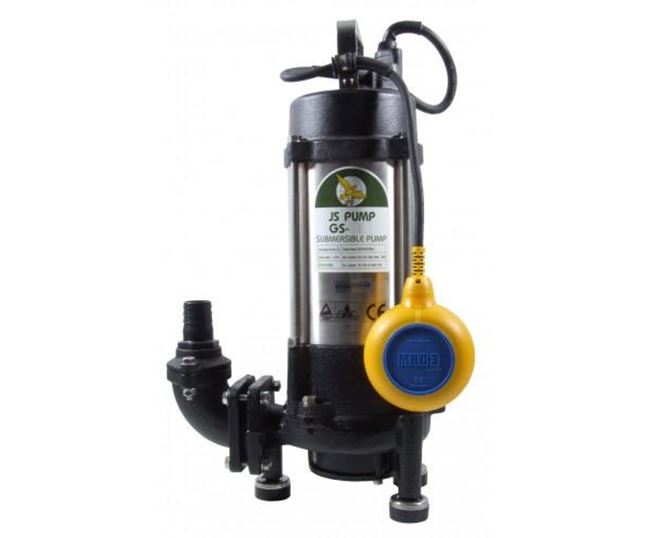

JS GS Grinder Submersible Pumps

Name: JS GS Grinder Submersible Pumps
Brand: JS Submersible Pumps
Price: 1003.20 GBP
Availability: InStock

Pump Type - Submersible

Max Flow Rate M³H - 11.4 M³H

Max Head - 22M

Pump Materials - AISI304, Cast Iron

Max Temp - 40°C

Max Viscosity - 50 cst

Max Solid Passage - 20mm

Self Priming - N

Inlet/Outlet Sizes - 32mm

Drive - AC Electric

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Power KW

Select Voltage

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

Select Float Switch

£1003.20 (inc VAT) £836.00 (ex VAT)

This product has a delivery lead time of 1-2 days

ADD TO CART

DESCRIPTION

GS Grinder Submersible Pumps

Flow Rate	Up to 190 l/min
Head (Pressure)	Up to 22 metres
Sizes Available	1 1/4”
Drive Options / Power	Electric Motors / 1.2 – 1.5 kW
Operating Temperature	Up to 40°C

JS submersible pumps are designed for heavy duty usage low- high flow at low-high pressures applications, JS offers a vast number of pump types from puddle pumps to drainage, grinder and vortex submersible pumps the JS range is a great option for must domestic or industrial applications, these submersible pumps are typically used for sewage dewatering, waste water as well as sand, mud/sludge and slurry dewatering.

JS submersible pumps are available with a variety of impeller types, depending on the pump model such as grinder, vortex and cutter, there are also a number of different mechanical sealing options and materials available, in addition some models can be supplied with integrated agitators these feature is quite useful when handling large concentrations of solids as it's specifically designed for keeping solids in suspension and as a result maintaining the pump's inlet unclogged consequently avoiding impeller blockage.

Available in single or three phase in both 50 and 60 Hz.

Most pumps can be supplied with or without float - manual or automatic.

The GS and GST submersible pump range is a grinder pump designed to crush soft solids into smaller particles, these pump range is typically used for handling sewage containing large concentrations of soft solids such as sewage treatment plants. These pump range is suitable for domestic and industrial applications.

GS model available in 110V or 230V single phase and 400V three phase for model GST

Design Features/Benefits

• Grinder capable of achieving up to 28,000 cuts per minute

• Double hard face mechanical seal

• GS model available in 110V or 230V single phase

• GST model 400V three phase – (Manual only – without float)

• Can be supplied free-standing or with guide rail

• Supplied with dual mechanical seal in lubricated chamber

• Supplied with thermal protection

• IP68 protection

• 7 metres max submersion depth

• Liquid temperature up to 40°C

• 60Hz frequency also available upon request

Typical Applications/Fluids:

• Drainage / dewatering

• Sewage transfer

• Light industrial

• Treatment plants

• Clean water and dirty water

FAQS

Can this pump run dry?

No, definitely not! submersible pumps will incur damage even after short periods of dry running. The mechanical seal requires lubrication and cooling while the pump is operating. Without the presence of fluid, the mechanical seal will overheat and crack, and this may cause the pump to leak and fluid to enter the motor. There is also the possibility that the motor will burn out as this requires cooling by the fluid during operation. Our advice is to ensure that the pump and motor are always submerged during operation. There are two main ways to ensure the pump only operates in the event of submersion. Firstly, only the operator turns the pump on and off manually when they have a clear view of the sump. Secondly, fit the pump with a float switch that will automatically turn the pump off once the fluid has dropped to a specific level in the chamber. If you think that dry running is inevitable, then please speak to us and we will try to select a more suitable pump for your application.

What do the terms manual and automatic mean?

Manual and automatic are the two main ways to describe how a submersible pump will operate. Manual means that the operator manually turns the pump on and off when required, turning the pump off and avoiding any possible damage from dry running is solely the liability of the operator. Automatic means that the pump will turn on and off automatically via a float switch or float switches. A float switch is connected to the motor that detects the fluid level in the sump, the pump is turned on when the level is high enough, and the pump is turned off when the fluid drops to an acceptable level.

How do I know what size pump is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a 4 pole motor rather than a 2 pole motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.

Can the motor really be submerged in water?

Yes, absolutely! In fact, submersible pump motors need to be submerged in fluid during operation for cooling and to avoid overheating. These motors have an IP rating of 68. IP stands for Ingress Protection, this is a measurement of a component's resistance to dust and fluid entering.

What size solids can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
