Pump Type - Flexible Impeller
Max Flow Rate - 22.5M³H
Max Head - 32M
Max Temp - 100°C
Max Viscosity - 200 cst
Max Solid Passage - 0mm
Self Priming - Y
Pump Materials - AISI316, Bronze, EPDM, NBR, Neoprene, NR, Silicon
Inlet/Outlet Sizes - 25mm to 80mm
Drive - AC Electric
Max Suction Lift - 6M

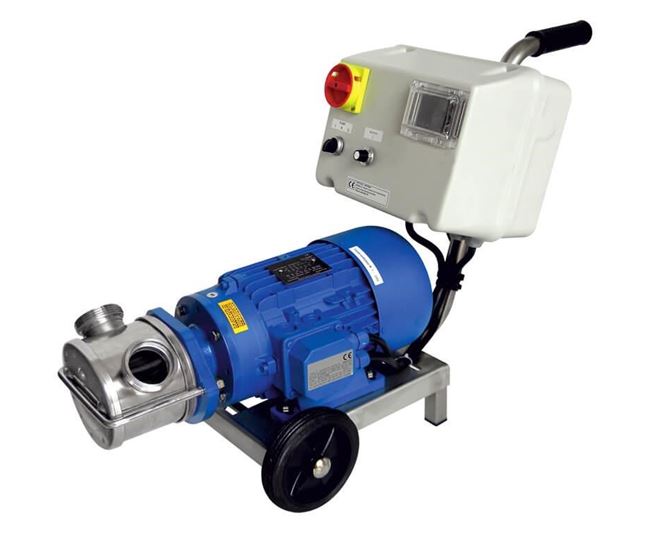

The INV BS series of flexible impeller pump is our standard inverter driven option without remote control or dry run protection. The INV BS version comes complete with an external mounted control panel and inverter to control the motor/pump speed. The motor is equipped with forced air cooling, this enables the speed to be reduced as low as 175RPM without the requirement of a gearbox. The INV BS range is excellent at transferring viscous fluids, shear sensitive fluids and fluids containing solids in suspension. Popular industries for this positive displacement pump include, food, beverage, chemical, cosmetic and pharmaceutical.
This flexible vane pump is able to self-prime from dry and perform a suction lift up to 6m without the requirement of a non-return valve. The largest flexible impeller pump in the range can handle viscosities up to 50,000cp, viscosity capability varies depending on size of pump and motor speed. It is fully reversible and one of the most versatile pumps on the market.
The delicate action of the rubber impeller is what creates the non-pulsating flow and allows delicate fluids to be handled. As the shaft within the pump rotates, the flexible impeller bends against the casing forcing the fluid and solids out of the discharge port.
Materials of this flexible impeller pump can be customised to suit application requirements, The standard casing material is stainless steel 304, stainless steel 316 is available for all models on request. The impeller can be supplied in various materials including NBR, Neoprene, EPDM, Silicon and Natural rubber depending on the nature of the fluid.
Our INV BS flexible vane pumps are FDA approved for use in hygienic and sanitary applications and can be supplied with various connection types, including; DIN, BSP Male and Female, Triclover, SMS, RJT, Friederich, Garolla and Macron.
Other variations of our flexible impeller pump are available to suit a wide range of applications, these include; bare shaft pump, electric motor, hydraulic motor, gear motor with pulley and mechanical speed variator. These variations can also be supplied on a mobile trolley and with a wide range of accessories including; control panel, bypass, barrel filling kit, carry handle, flow meter, dry run protection, pressure switch, level sensors, remote control and motor shroud.
Common fluids for this flexible vane pump series include; wine, must, must and stemmed grapes, beer, fruit pulp, fruit juice, honey, liquid sugar, syrups, glucose, milk, melted butter, vegetable glycerine, yoghurt, eggs, oils, edible oils, water based glues, emulsions, wax, detergents, rubber later, inks, paints, waste water, black water, grey water, bilge water, sludge, slurries, soap, lotions, cream, shampoo and many more.
To understand more about flexible impeller pumps, read more here.
• Inverter driven flexible impeller pump with forced air cooling
• INV version available with remote control if required
• Self-priming up to 6m without the requirement of a non-return valve
• Excellent for handling shear sensitive fluids due to the smooth non-pulsating flow
• Viscosity capability of 50,000cp for the largest model
• Up to 15mm solids handling capability depending on pump size. MINOR – 10mm, MAJOR – 15mm
• Various impeller materials, including NBR, Neoprene, EPDM, Silicon and Natural rubber
• Various connection types, including; DIN, BSP Male and Female, Triclover, SMS, RJT, Friederich, Garolla and Macron.
• Pump casing is Stainless steel 304 as standard (All models are available in stainless steel 316 on request)
• Various pump head orientations depending on application requirements
• Garolla connections as standard
• Integrated manual or spring-loaded bypass available for certain models
• 400V Three phase motor
• Wide range of accessories available including; control panel, bypass, barrel filling kit, carry handle, flow meter, dry run protection, pressure switch, level sensors, remote control and motor shroud
