Product code: SCP Side Channel

North Ridge SCP Side Channel Pump

Pump Type - Side Channel

Max Flow Rate M³H - 58.2 M³H

Max Head - 60M

Pump Materials - AISI316, Bronze

Max Temp - 165°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 19mm to 80mm

Drive - AC Electric

Max Suction Lift - 6M

DOWNLOADS

SELECT MODEL

Select Power KW

Select Frequency Hertz

Select Max Flow LPM

Select Electric Phase

Select Material

Select Speed

Select Max Head

Select Outlet Size (mm)

£564.00 (inc VAT) £470.00 (ex VAT)

This product has a delivery lead time of 1-2 Weeks

ADD TO CART

DESCRIPTION

SCP Side Channel Pump

Flow Rate	Up to 58.2m³/hr
Head (Pressure)	Up to 60m
Inlet/Outlet Sizes	3/4” to 3”
Operating Temperature	Up to 165°C
Viscosity	Up to 200cp
Drive Options	Electric Motor

The SCP series of side channel pump is available in either stainless steel 316 or bronze and is designed to transfer clean and low viscosity fluids up to 200cp. Popular fluids for this liquid ring pump range include, fresh water, sea water, light oils, edible oils (olive oil, rapeseed oil, vegetable oil) and any other compatible clean fluids.

Our liquid ring pumps are capable of self-priming up to 6m without the requirement of a non-return valve and can handle fluids containing gaseous content up to 50%.

The SCP range is reversible via a switch on the motor and is available with various accessories including a carrying handle, integral bypass and mobile trolley.

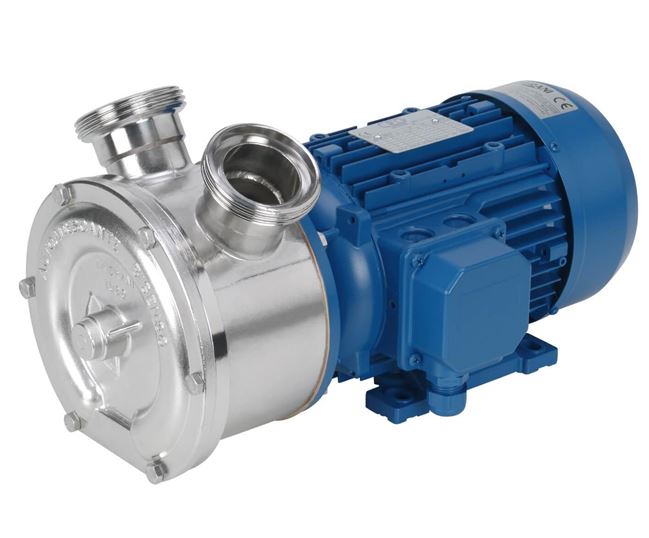

The stainless steel version is food grade and is can be supplied with various connections including BSP, tri clamp, Macon, Garolla, RJT and others on request.

There are other versions of this side channel pump, including; pulley driven, Atex, hydraulic motor driven and inverter driven.

Product summary

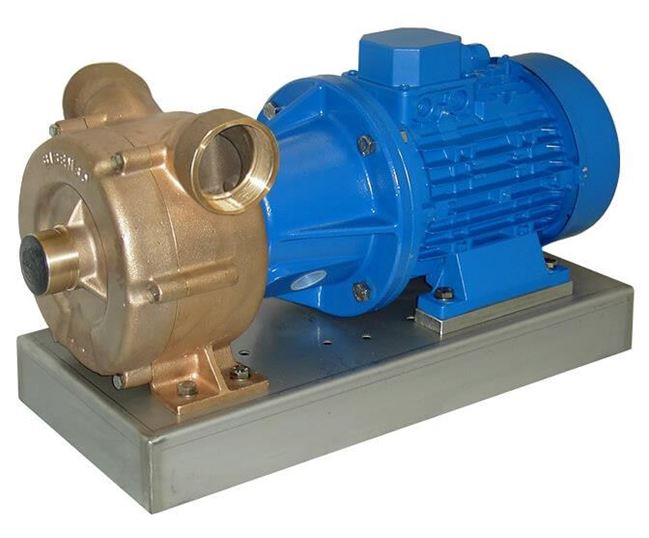

• Available in either bronze or stainless steel 316

• Self-priming up to 6m without the requirement of a non-return valve

• Can handle clean fluids up to 200cp

• Some versions can handle temperatures up to 165°C

• Stainless steel version is hygienic

• Reversible

• Low NPSH required

• Can handle fluids with gaseous content up to 50%

• Bronze version available with manual integral bypass

• Various connections available, including BSP, tri clamp, Macon, Garolla, RJT and others on request.

• Motor options include 12V DC, 24V DC, 110V and 230V Single Phase, 400V Three phase

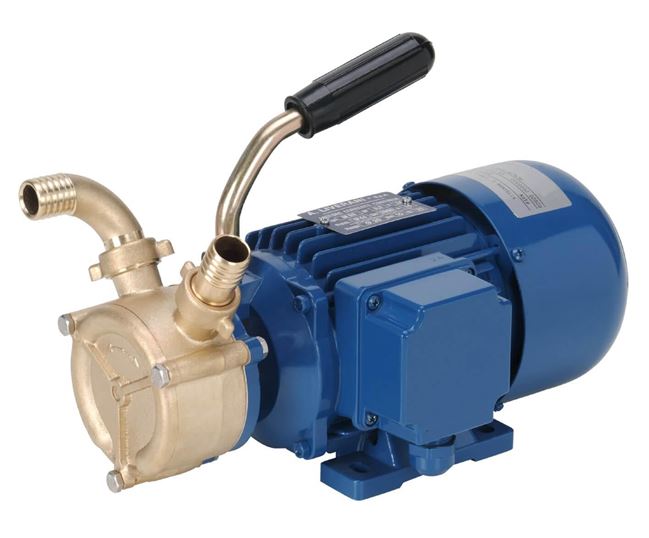

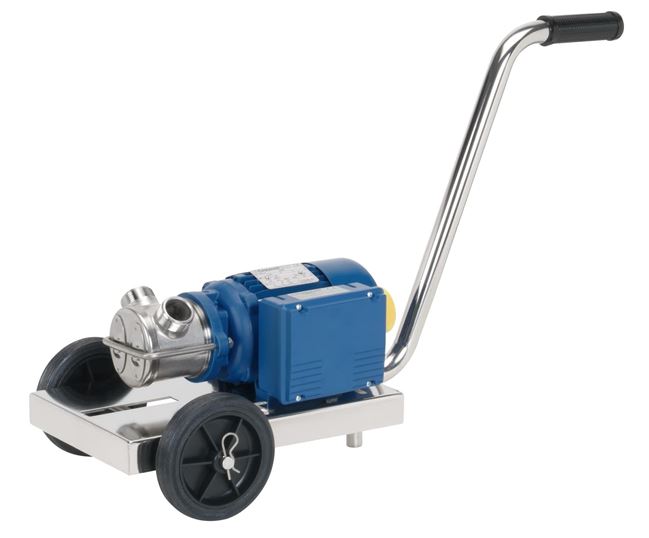

• Various accessories available, including carrying handle and mobile trolley, food grade trolley, motor shroud.

• Other versions available on request, including inverter driven, Atex, pulley driven and hydraulic motor driven

Read more about Side Channel Pumps in our guide

FAQS

What does the term side channel mean?

A side channel pump is a cross between a centrifugal and positive displacement pump.

Side Channel pumps are self-priming and capable of handling entrained gasses and can produce high pressures but low amounts of flow. They are available with single impeller or multiple impellers depending on the pressure required. A few of the benefits of this pump type are; low NPSH required, high efficiency, Balanced radial thrust ensures low wearing parts, excellent self-priming capability and handling of up 50% gas content.

What does the term self-priming mean?

A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to around 8m on the inlet side, however this figure is affected by fluid viscosity, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.

Can this pump handle solids?

Side channel pumps cannot handle solids, all fluids entering the pump must be clean and free of particles.

What percentage gas content can this pump handle?

Due to their unique design, Side channel pumps are capable of handling fluids containing up to 50% gas content.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, impeller, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices.

Which sealing option is correct for my application?

These pumps are available with single mechanical seal, double mechanical seal or magnetic drive. It is best to speak to a member of our sales team if you are unsure which sealing arrangement is best for your application.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What is NPSH and why is it so important?

NPSH is an acronym for Net Positive Suction Head. NPSH measures the absolute pressure present in a fluid.

There are two main ways that NPSH is expressed in a pump system

NPSHa - This is the amount of Net Positive Suction Head available at the pump inlet. NPSHa demonstrates the amount of pressure acting on a fluid as it enters the pump. This measures the amount of pressure between the liquid staying in its current state and forming vapour bubbles (beginning to boil).

NPSHr - This is the amount of Net Positive Suction Head that the pump requires to operate without experiencing the damaging effect of cavitation, thus causing a dramatic reduction in pump performance.

It is very important to pay attention to these values when making a pump selection. Selecting a pump that requires more NPSH than is available in your system will cause fast and long-lasting damage to the pump and thus you will incur large repair costs and downtime.
