Pump Type - Gear
Max Flow Rate - 9M³H
Max Head - 150M
Max Temp - 200°C
Max Viscosity - 1600 cst
Max Solid Passage - 0mm
Self Priming - Y
Pump Materials - AISI304, AISI316, Cast Iron, Cast Steel
Inlet/Outlet Sizes - 9mm to 50mm
Drive - AC Electric, Bareshaft
Max Suction Lift - 8M
Our internal gear pumps are designed to handle clean low – high viscosity lubricating fluids, being positive displacement pump types our IGM gear pumps are suitable for high pressure applications up to 15 bar depending on the model configuration selected. The pumping action is done by the rotation of intermeshing gears and a rotor designed to push the fluid at towards the outlet side of the pump, due to the extremely tight clearances between the gears these pumps are only suitable for lubricating clean liquids.
Some of the most common fluids our internal gear pumps are used for are fuels, oils, greases, resins and adhesives. Our gear pumps are manufactured according to CE standards and therefore comply with all current European quality demands and regulations, our simplistic design designed construction with only two moving/rotating components along with the exceptional tight clearance within the internal moving parts is the secret for our gear pumps high efficiency as there is almost zero slip whilst in operation meaning these pump's energy consumption is minimal making them consequently a great option for continuous operation, (24/7) applications.
Our internal gear pumps can be supplied with external bypass valve and external heating jacket upon request, these pumps are also available with ATEX (explosion proof) motors for hazardous non-safe environments and applications, the IGM pump range is available with a variety of mechanical seals depending on the specific model.
Thanks to having various construction materials along with a range of pump sizes, different sealing options and their 200 °C max. operating temperature our internal gear pumps can be used for a wide range of applications and almost any non-corrosive clean fluid specifically where a non-pulsating flow is necessary, they can also be supplied with marine class certification upon request hence are perfectly suitable for marine use.

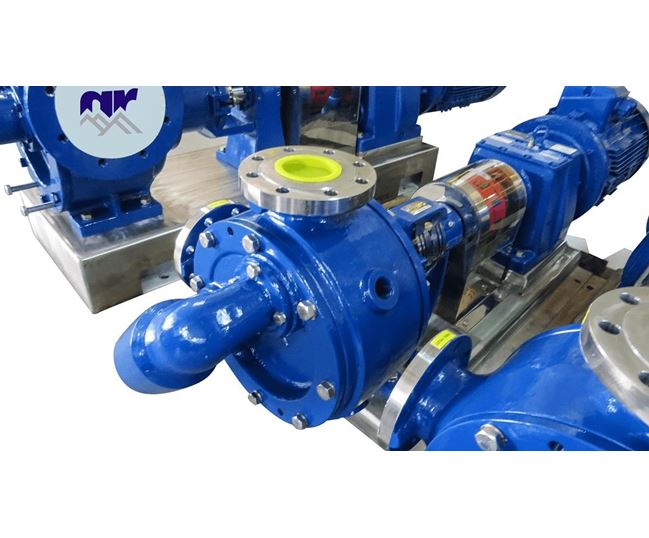

IGM range – mechanically sealed internal gear pump
ATEX certified upon request
High efficiency due to exceptional tight clearances
Fantastic self-priming capabilities
Optional external heating jacket
Manufactured according to CE standards
Max. fluids operating temperature 200 °C
Available with external bypass valve
Marine class certification upon request
• Diesel fuel
• Hot oil
• Edible oils
• Crude oil and fuel oil
• Paint, resins, emulsions and coatings
• Soap and detergents
• Food process plants
• Heat transfer
