North Ridge SHP Side Channel Pump

Pump Type - Side Channel

Max Flow Rate - 8.5M³H

Max Head - 1150M

Max Temp - 170°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Pump Materials - AISI316, Cast Iron, Ductile Iron

Inlet/Outlet Sizes - 25mm to 50mm

Drive - AC Electric, Bareshaft

Max Suction Lift - 8M

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation
quote

DESCRIPTION

SHP Side Channel Pump


Flow Rate

Up to 8.5 m³/hr

Head (Pressure)

Up to 1150 m

Operating Temperature

-60°C to +170°C

Drive Options

Electric Motor

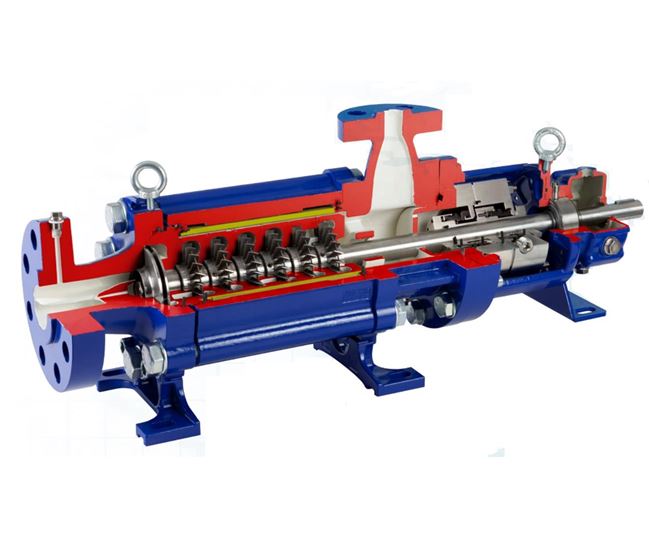

The SHP series of side channel is unique in the fact that it is an end suction design and meets API 610 standards. Ideal fluids for this pump series are low viscosity and fluids which do not contain any solids or abrasive content. This multistage pump can produce low flow rates at extremely high pressure. It is capable of producing flow rates up to 8.5m³/hr and pressures up to 115 bar.



It is able to handle fluids that contain up to 50% entrained gasses making it excellent for applications involving gaseous liquids, A special stage within this pump allows it to accept NPSH as low as 0.2m.



This pump is fitted with heavy duty pressure casings meeting API 610 standards and all wetted parts comply with API 610 standards also. All materials are C-6 and A-8 classes.



The SHP series is designed for extreme applications. The SHP series is available with mechanical cartridge seal or a single or double  API 682 rated seal plan.



This side channel pump is also Atex certified for handling flammable liquids and for installation in non-safe areas.



The most common applications for this side channel pump include; LPG, solvents, refrigerants, aerosols, propane, pentane, methanol, naphtha, pressure boosting, boiler feed, fuel transfer, diesel transfer, kerosene transfer, petrol transfer, hot water circulation, marine, deck wash, sea water transfer and condensate.





•         End suction

•         Complies with API 610 standards

•         Optional API 682 seal plan

•         No pulsation

•         NPSHr as low as 0.2m

•         Ability to handle up to 50% gas content

•         Maximum fluid temperature of 170°C

•         Temperatures down to -60°C

•         Single phase and three phase 50hz / 60hz motors

•         Back pull out design to ensure quick and easy maintenance

•         Marine certification available

•         Atex certified


Read more about Side Channel Pumps in our guide

FAQS

A side channel pump is a cross between a centrifugal and positive displacement pump.
Side Channel pumps are self-priming and capable of handling entrained gasses and can produce high pressures but low amounts of flow. They are available with single impeller or multiple impellers depending on the pressure required. A few of the benefits of this pump type are; low NPSH required, high efficiency, Balanced radial thrust ensures low wearing parts, excellent self-priming capability and handling of up 50% gas content.
A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to around 8m on the inlet side, however this figure is affected by fluid viscosity, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.
Side channel pumps cannot handle solids, all fluids entering the pump must be clean and free of particles.
Due to their unique design, Side channel pumps are capable of handling fluids containing up to 50% gas content.
Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, impeller, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices.
These pumps are available with single mechanical seal, double mechanical seal or magnetic drive. It is best to speak to a member of our sales team if you are unsure which sealing arrangement is best for your application.
ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
NPSH is an acronym for Net Positive Suction Head. NPSH measures the absolute pressure present in a fluid.

There are two main ways that NPSH is expressed in a pump system

NPSHa - This is the amount of Net Positive Suction Head available at the pump inlet. NPSHa demonstrates the amount of pressure acting on a fluid as it enters the pump. This measures the amount of pressure between the liquid staying in its current state and forming vapour bubbles (beginning to boil).

NPSHr - This is the amount of Net Positive Suction Head that the pump requires to operate without experiencing the damaging effect of cavitation, thus causing a dramatic reduction in pump performance.

It is very important to pay attention to these values when making a pump selection. Selecting a pump that requires more NPSH than is available in your system will cause fast and long-lasting damage to the pump and thus you will incur large repair costs and downtime.
