Product code: 2SP

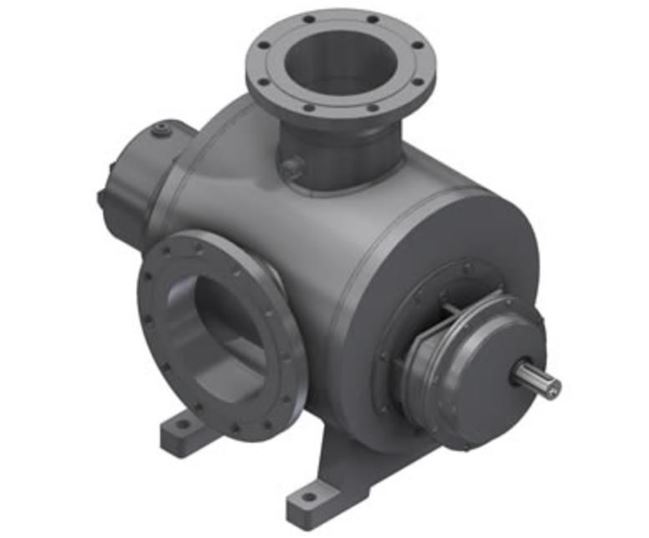

North Ridge 2SP Series Twin Screw Pump

Pump Type - Screw

Max Flow Rate - 1200M³H

Max Head - 400M

Pump Materials - AISI316, Cast Steel

Max Temp - 300°C

Max Viscosity - 15,000 cst

Max Solid Passage - 2mm

Self Priming - Y

Inlet/Outlet Sizes - 150mm to 500mm

Drive - AC Electric, Bareshaft

Max Suction Lift - 7.5M

DOWNLOADS

DESCRIPTION

2SP Series Twin Screw pump


Flow Rate

Up to 1200m³/hr

Head (Pressure)

Up to 40 bar

Inlet/Outlet Sizes

DN150 to DN500

Operating Temperature

Up to 300°C

Viscosity

1 to 15000cp

Drive Options

Electric Motor



The 2SP series of twin-screw pump is designed for applications involving fuel oils and hydraulic oils requiring high flow rates. It can handle dirty and non-lubricating fluids up to 15000cp that contain up to 2mm solids (3% maximum concentration). This range is capable of achieving flow rates up to 1200m³/hr and pressures up to 40 bar.


There are 4 main versions of this twin-screw pump; the L1, L2, L3 and L4. Each is capable of handling different viscosity fluids and different temperatures. Each version is fitted with a different sealing system, including; gland packing, mechanical seal or cartridge seal. The L4 version is fitted with an API 682 mechanical seal and is compliant with API 676.


Our screw pumps have numerous benefits over other positive displacement pumps such as gear pumps. They produce low noise levels, are compact as no gearbox is required, produce low pulsations, are excellent at self-priming and can handle fluids containing trapped air.


The 2SP series can be fitted with an Atex motor for installation in non-safe areas. It is marine type approved by ABS, BV and RINA and can be marine witness tested by various classification bodies if required.


The 2SP series of twin-screw pump is available in either carbon steel or stainless steel, due to this fact it can be used for a wide range of applications within the marine and industrial markets. Typical fluids include; Mineral and synthetic lubricating oils, Hydraulic oil, Diathermic oil; DFD-U and HFDR phosphate organic esters, Glycols, Heavy and Light Fuel oils, Asphalt and Bitumen. Common applications include fuel cargo, fuel transfer, lube oil transfer, lubricating oil circulation, burner/boiler feed, fuel booster, fuel oil separator and many more involving compatible fuels and oils.





Product summary



         Suitable for a wide range of clean and dirty fuels and oils

         API 676 compliant

         Can handle up to 2mm solids (maximum of 3% concentration)

         Up to 300°C fluids

         Excellent self priming capability

         Quiet low pulsation operation

         Available in carbon steel or stainless steel

         Nitrided steel or stainless steel screws

         DIN and ANSI flanges available

         Can handle viscosities from 1 to 15000cp

         Motor speeds between 750 and 1750RPM without the requirement of a gear box

         Available with either gland packing, mechanical seal, cartridge seal or API 682 mechanical seal

         Can be mounted horizontally or vertically

         Each pump is individually tested

         Marine type approved by ABS, DNV and RINA

         Marine witness testing available by various classification bodies

         Can be fitted with pressure relief valve

         Motor options: Single phase and three phase 50hz / 60hz motors, Steam turbine, Diesel engine

         Mill material certificates available, according to UNI EN 10204.

         Can be supplied with Atex motor


Read more about Screw Pump design in our guide

FAQS

No, definitely not! Screw pumps will incur damage even after short periods of dry running. Firstly, the screws require lubrication from the pumped fluid, for example fuel and oil. Dry running without these will cause fast and irreversible damage. The mechanical seal requires lubrication and cooling while the pump is operating. Without the presence of fluid, the mechanical seal will overheat and crack, and this may cause the pump to leak and fluid to enter the motor. There is also the possibility that the motor will burn out. Our advice is to ensure that the pump always has access to fluid while running, the vessel or sump on the inlet side of the pump must never run out of fluid while the pump is active. Level sensors or a float switch can be installed in the fluid chamber ensuring that the pump is turned off in the event there is no fluid. Another way of protecting the pump is to fit a dry running device, this will turn the pump off if it detects that no fluid is entering the pump. If you think that dry running is inevitable, then please speak to us and we will try to select a more suitable pump for your application.
A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to around 8m on the inlet side, however this figure is affected by fluid viscosity, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.
Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, viscosity, size and type of solids, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a slower speed motor rather than a full speed motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.
An integral bypass is designed to protect the pump and system from overpressure for small periods of time. It is typically set to around 10% higher than the working pressure, it will open and recirculate the fluid inside the pump head when the set pressure is achieved. An integral bypass is only a temporary solution and cannot operate indefinitely, an additional external bypass that runs back to the fluid source is always recommended as a more permanent solution.
ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
NPSH is an acronym for Net Positive Suction Head. NPSH measures the absolute pressure present in a fluid.

There are two main ways that NPSH is expressed in a pump system

NPSHa - This is the amount of Net Positive Suction Head available at the pump inlet. NPSHa demonstrates the amount of pressure acting on a fluid as it enters the pump. This measures the amount of pressure between the liquid staying in its current state and forming vapour bubbles (beginning to boil).

NPSHr - This is the amount of Net Positive Suction Head that the pump requires to operate without experiencing the damaging effect of cavitation, thus causing a dramatic reduction in pump performance.

It is very important to pay attention to these values when making a pump selection. Selecting a pump that requires more NPSH than is available in your system will cause fast and long-lasting damage to the pump and thus you will incur large repair costs and downtime.
