Product code: RAASM Oil Hose Reels

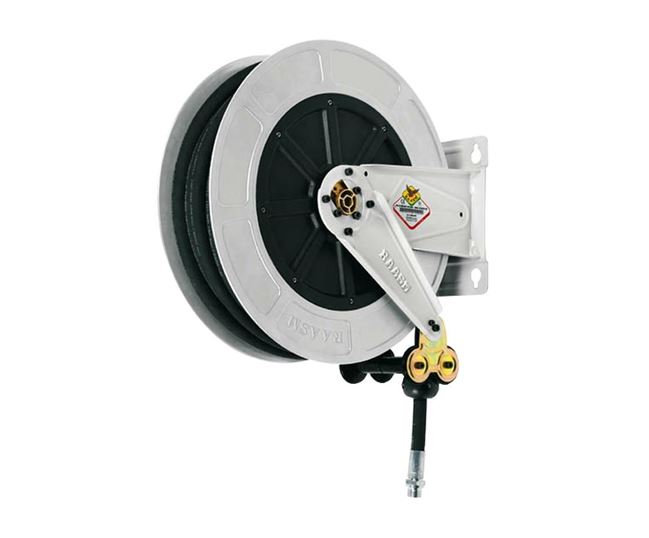

RAASM Oil Hose Reels

Pump Type - Barrel

Max Flow Rate M³H - 5.10 M³H

Max Head - 1500M

Pump Materials - Aluminium, Carbon Steel

Max Temp - 60°C

Max Viscosity - 1000 cst

Max Solid Passage - 0mm

Self Priming - N

Inlet/Outlet Sizes - 12mm to 25mm

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Outlet Size (mm)

Select Length (M)

Select Casing

Select Painted

£146.40 (inc VAT) £122.00 (ex VAT)

This product has a delivery lead time of 1-2 days

ADD TO CART

DESCRIPTION

RAASM Oil Hose Reels

Product	Oil
Max. Working Pressure	Up to 150 bar
Materials	Painted steel, ABS, Stainless Steel
Hose Lengths	Up to 40 metres
Diameter	1/2” / 3/4” / 1” bore
Seal Material	Polyurethane / Viton®

RAASM hose reels, come with rewinding spring with constant tension, these hose reels are available in many versions: open or enclosed, fixed or swivelling as well as a wide range of materials such as painted steel, stainless steel, ABS etc. They can be motor, pneumatic or hydraulic driven. The RAASM hose reels make possible managing in a practical and safe way all kind of flexible hoses.

Design features:

• Automatic stopping system allows hose to be locked at the required length

• Self-lubricating hose guide rollers

• Can be install almost anywhere, ceilings, floors, walls vehicles etc.

• Easy to install adjustable bracket allows the hose reels to be removed for any maintenance

• Adjustable hose stop and rewinding spring

• Corrosion proof – suitable for outdoor installation

Learn More about the various different types in our Hose Reel Guide

RAASM 8390.405 – Open 1/2” hose reel in painted steel with Polyurethane seals

Supplied with 10 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 8530.401 – Open hose reel in painted steel with Polyurethane seals

Supplied with 20 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 8530.402 – Open hose reel in painted steel with Polyurethane seals

Supplied with 25 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 8540.401 – Open hose reel in painted steel with Polyurethane seals

Supplied with 15 metre 3/4” bore hose / Max. pressure 150 bar

RAASM 8540.402 – Open hose reel in painted steel with Polyurethane seals

Supplied with 20 metre 3/4” bore hose / Max. pressure 150 bar

RAASM 8540.403 – Open hose reel in painted steel with Polyurethane seals

Supplied with 15 metre 1” bore hose / Max. pressure 150 bar

RAASM 8540.406 – Open hose reel in painted steel with Polyurethane seals

Supplied with 30 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 8560.403 – Open hose reel in painted steel with Polyurethane seals

Supplied with 40 metre 3/4” bore hose / Max. pressure 100 bar

RAASM 9430.401 – Open hose reel in painted steel with Polyurethane seals

Supplied with 10 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 9430.402 – Open hose reel in painted steel with Polyurethane seals

Supplied with 15 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 9450.401 – Enclosed hose reel in painted steel with ABS spool and Polyurethane seals

Supplied with 10 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 9450.402 – Enclosed hose reel in painted steel with ABS spool and Polyurethane seals

Supplied with 15 metre 1/2” bore hose / Max. pressure 150 bar

RAASM 8390.400 – Open hose reel assembly in painted steel with Polyurethane seals
