Product code: RAASM Hand Operated Grease Pumps & Grease Dispensers

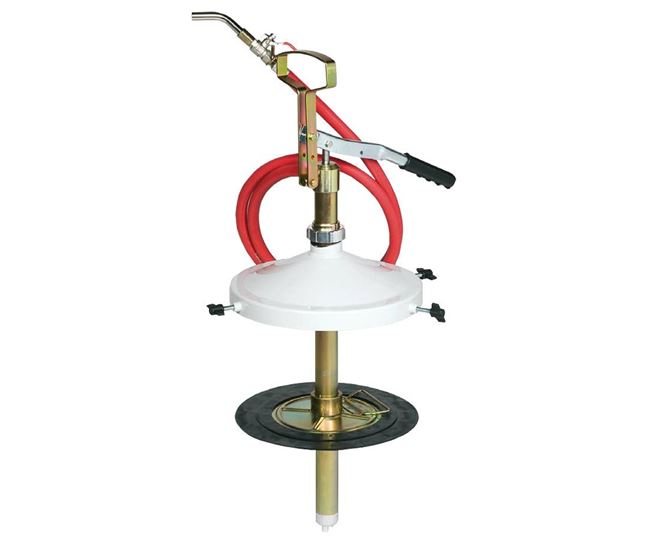

RAASM Hand Operated Grease Pumps & Grease Dispensers

Pump Type - Barrel

Max Flow Rate - 0.06M³H

Max Head - 4000M

Max Temp - 60°C

Max Viscosity - 60,000 cst

Max Solid Passage - 0mm

Self Priming - N

Pump Materials - Aluminium, Carbon Steel

Inlet/Outlet Sizes - 12mm to 25mm

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

£230.00 (ex VAT)

This product has a delivery lead time of 1-2 days

DESCRIPTION

RAASM Hand Operated Grease Pumps & Grease Dispensers



Capacity

Up to 50 grams per lever

Discharge Pressure

Up to 350/400 bar

Suitable Drums

12 – 30 Kg

Drums external diameter

240 – 330 mm

Drive Options

Hand, Air Operated or with Foot-pedal



RAASM grease pumps and dispensers are designed for transferring low, medium and high viscosity grease depending on the model and configuration specified, these pumps can be either hand operated, with a foot pedal or air driven. Pumps are supplied with grease follower plates for additional lubricant protection, they also guarantee a positive priming. The follower plate configuration is recommended for high pressure applications (up to 400 bar), the RAASM grease pump range is available with a wide variety of accessories, these pumps can be supplied with a 2 wheel or 4 wheel trolley for 12 – 30 kg drums with a 240 – 330 mm drum opening. These pumps have a capacity of 50 g per lever.



The grease dispensers are lightweight compact units, commonly used for lubricating motor vehicles as well as mechanical mechanisms, discharge capacity on these units is 60 grams per 10 lever cycle for the hand operated option and 40 g per 10 cycle for the foot pedal unit.





Design Features/Benefits



        High pressure grease transfer pumps – up to 400 bar.

        Suitable for most drums 12 – 30 kg.

        Dispensers available hand operated, with foot pedal or air operated.

        Simple, compact robust design hence easy to use and maintain.

        Grease pumps supplied with hand pump, drum cover, follower plate and discharge hose complete with nozzle.

        Portable and lightweight.

        Available trolley mounted.

        Different follower plates sizes available depending on drum external opening size.

        Grease dispensers supplied with container, cover, hand/foot-pedal or air operated pump, follower plate and discharge hose complete with nozzle.



 Read more about hand Pumps in our Guide

Grease Hand Pump Models;


RAASM high pressure pumps – up to 350/400 bar:



RAASM 60280 – For 12 -20 kg drums / 240 – 280 mm opening

Capacity: 60 grams per 10 lever cycle



RAASM 60310 – For 16 -30 kg drums / 260 – 300 mm opening

Capacity: 60 grams per 10 lever cycle



RAASM 60311 – For 16 -30 kg drums / 270 – 330 mm opening

Capacity: 60 grams per 10 lever cycle



RAASM low pressure pumps – up to 20 bar:



RAASM 60410 – For 16 -30 kg drums / 260 – 300 mm opening

Capacity: 500 grams per 10 lever cycle



RAASM 60411 – For 16 -30 kg drums / 270 – 330 mm opening

Capacity: 500 grams per 10 lever cycle





Hand or Air Operated Portable Grease Dispensers:


RAASM 68012 – c/w 13 kg tank/container, with grease follower plate

Manual/hand operated

Max. pressure: 350/400 bar

Capacity: 60 grams per 10 lever cycle



RAASM 68113 – c/w 13 kg tank/container, with grease follower plate

Operated by foot-pedal.

Max. pressure: 300/350 bar

Capacity: 40 grams per 10 lever cycle



RAASM 68213 – c/w 13 kg tank/container, with grease follower plate

Compression ratio: 50:1

Air operated

Max. working pressure: 8 bar

Max. discharge pressure: 350/400 bar

Capacity: 1000 g/min (free outlet 6 bar self-levelling grease at 20°C)



Available Accessories:

Flexible and rigid hose

Hose reel complete with hose

Digital flow meter

Wide range of follower plates in different sizes

Discharge nozzle/gun


FAQS

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.
The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.
ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
