Product code: RAASM 180 - 220 kg Drum Trolley Mounted Grease Dispensing Kits with Hose Reel

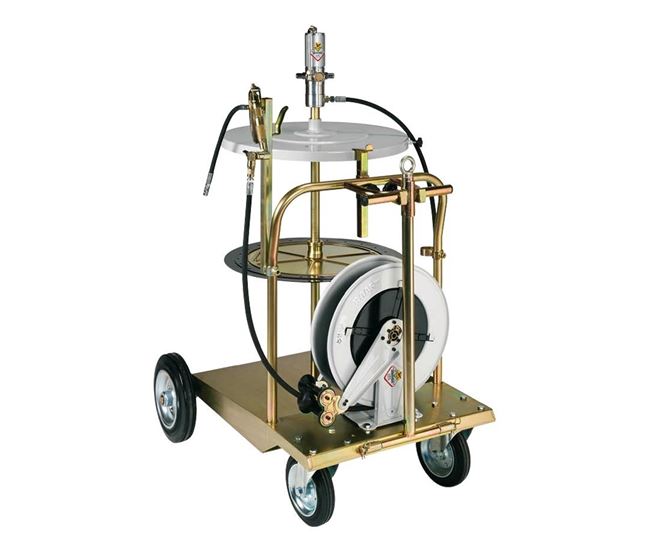

RAASM 180 - 220 kg Trolley Mounted Grease Dispensing Kits with Hose Reel

Pump Type - Barrel

Max Flow Rate - 0.26M³H

Max Head - 3600M

Pump Materials - Aluminium, Carbon Steel

Max Temp - 60°C

Max Viscosity - 60,000 cst

Max Solid Passage - 0mm

Self Priming - N

Inlet/Outlet Sizes - 12mm to 25mm

Drive - Air

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

£1236.00 (inc VAT) £1030.00 (ex VAT)

This product has a delivery lead time of 1-2 days

DESCRIPTION

RAASM Trolley Mounted Grease Dispenser Kits with Hose Reel for 180 – 220 kg Drums



Capacity

Up to 4400 g/min

Air Working Pressure

6 - 8 bar

Suitable Drums

180 – 220 Kg

Suction Tube Length

0.7 – 1.04 metres (Other sizes available)

Drive Options

Air Operated



RAASM air operated grease pumps and are designed for transferring low - high viscosity grease and high viscosity oils depending on the model and configuration specified, these pumps can be either hand operated or air driven. RAASM grease pump range is available on a single or double acting configuration, the double acting pumps are capable of pumping on both up and down strokes hence the flow delivered on this construction design is more constant whilst the single acting pump only discharges the fluid on it's down-stroke and as a result the flow is less continuous.



The Raasm grease pump range is available in a huge variety of designs and capacities, from 1:1 to 50:1 ratios these air operated drum pumps are suitable for all kind of applications from simple small distance low viscosity grease transfer to industrial high viscosity grease distribution at high pressure. These pumps are available in several different materials such as aluminium, carbon steel and stainless steel, these pumps can be wall mounted for fixed installations or as a standard drum pump configuration suitable for drums, IBC tanks and other tank/container types. Pump tubes are also available in different length, must common sizes are from 700 to 1040 mm.



Seal materials available are NBR (Nitrile), VITON®, TEFLON® and PU (Polyurethane) for high pressure applications mainly used for 7:1 & 11:1 ratio pumps.



RASSM pumps are available with a wide range of accessories and can be supplied as a complete pump kit for fixed and mobile installations or for simply drum emptying, kits normally include a pump, hose and hose reel, discharge nozzle and digital flow meter also called digital litre counter.



These pump dispensing kit has been specifically designed for dispensing grease out of 180 – 220 kg drums.





Design Features/Benefits



        Working pressure up to 8 bar.

        Typically used for transferring medium-high viscosity grease and high viscosity oils at medium to high pressures.

        Suitable for most drums 180 – 220 kg.

        Available with follower plates

        Standard suction tube sizes from 700 to 1040 mm (Other sizes upon request).

        Reliable compact design, easy to use and maintain.

        Trolley mounted with hose reel

        Suitable for mobile or fixed installations.







RAASM Air Operated Grease Dispenser Kits:



Trolley Mounted Options with Hose Reel Included:



RAASM 64000 – Suitable for 180 – 220 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62095 / 50:1 ratio pump, 4 wheel trolley, hose reel, grease connecting hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 550 – 600 mm



RAASM 64000/65 – Suitable for 180 – 220 kg drums / Capacity: 1900 g/min

Kit Contains; RAASM 63095 / 65:1 ratio pump, 4 wheel trolley, hose reel, grease connecting hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 550 – 660 mm



RAASM 64000/75 – Suitable for 180 – 220 kg drums / Capacity: 4400 g/min

Kit Contains; RAASM 116F/751 / 75:1 ratio pump, 4 wheel trolley, hose reel, grease connecting hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 550 – 660 mm










FAQS

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.
The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.
ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
