Product code: RAASM Hand Operated Oil Pumps & Oil Dispensers

RAASM Hand Operated Oil Pumps & Oil Dispensers

Name: RAASM Hand Operated Oil Pumps & Oil Dispensers
Brand: RAASM Pumps
Price: 344.40 GBP
Availability: InStock

Pump Type - Barrel

Max Flow Rate M³H - 0.288 M³H

Max Head - 80M

Pump Materials - Aluminium, Carbon Steel

Max Temp - 60°C

Max Viscosity - 1000 cst

Max Solid Passage - 0mm

Self Priming - N

Inlet/Outlet Sizes - 12mm to 25mm

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Max Flow LPM

Select Material

Select Max Head

Select Length (mm)

Select Outlet Size (mm)

Select Casing

Select Dispenser Size

Select Keg Size

Select Accessories

£344.40 (inc VAT) £287.00 (ex VAT)

This product has a delivery lead time of 1-2 days

ADD TO CART

DESCRIPTION

RAASM Hand Operated Oil Pumps & Oil Dispensers

Capacity	Up to 240 grams per complete lever cycle
Discharge Pressure	Up to 8 bar (For Air Operated Oil Dispensers)
Suitable Drums	30 – 220 Kg
Max. Oil Density	Up to 240 SAE
Suction Tube Length	0.7 – 1.04 metres
Drive Options	Hand or Air Operated

RAASM oil hand pumps and oil dispensers are designed for transferring low, medium and high viscosity oils depending on the model and configuration specified, these pumps and dispensers can be either hand operated or air driven. This oil pump range is available on a single or double acting configuration, the double acting types are capable of pumping on both up and down strokes hence the flow delivered on this construction design is more constant, the single acting pump only discharges the fluid on it's down-stroke and as a result the flow is less continuous

The Raasm oil dispensers are lightweight compact units, commonly used for filling and refilling hydraulic power packs, gearboxes, engines etc. this units can be either hand operated or air driven, these units are supplied as a complete kit with the pump, pressurise tank and discharge hose hence the air operated option can work without being connected to an external compressed air line.

Design Features/Benefits

• Air operated dispensers are pressurised up to 8 bar.

• Suitable for most drums 30 – 220 kg.

• Oil dispensers available hand or air operated operated.

• Simple, compact robust design hence easy to use and maintain.

• Portable and lightweight.

• Available trolley mounted.

• Oil dispensers supplied with container, manual or air operated pump and a 2 metres discharge hose complete with nozzle.

Oil Hand Operated Pump Models;

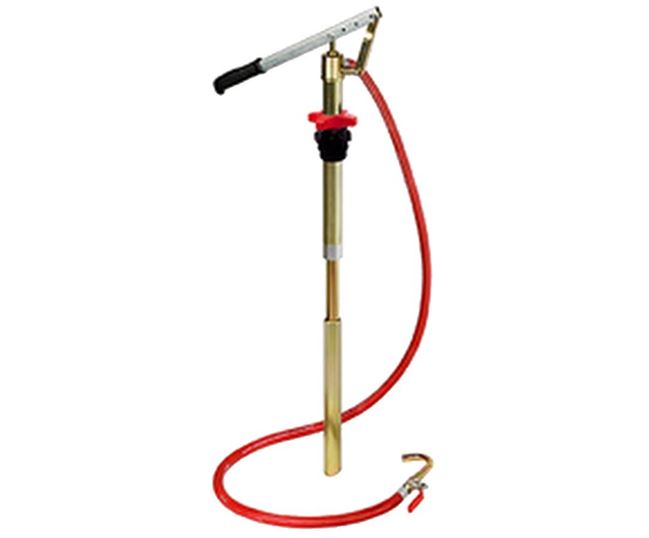

RAASM 31200 – For 50 -220 kg drums / Length 0.7 – 1.04 m

Single Acting Pump / Capacity: 240 grams per complete lever cycle

Supplied with 2 m hose / Max. oil density 130 SAE

RAASM 31201 – For 50 -220 kg drums / Length 0.7 – 1.04 m

Single Acting Pump / Capacity: 240 grams per complete lever cycle

Max. oil density 130 SAE

RAASM 30200 – For 50 -220 kg drums / Length 0.7 – 1.04 m

Single Acting Pump / Capacity: 220 grams per complete lever cycle

Supplied with 2 m hose / Max. oil density 240 SAE

RAASM Hand & Air Operated Oil Dispensers:

RAASM 30050 – For 30 - 60 kg drums / Length 0.7 – 1.04 m

Double Acting Hand Pump / Capacity: 220 grams per complete lever cycle

Supplied trolley mounted with 2 m hose / Max. oil density 240 SAE

RAASM 32016 – c/w 16 litre tank / Portable double acting - hand operated pump

Capacity: 220 grams per complete lever cycle / Max. oil density 240 SAE

Supplied with 16 litre tank and 2 metre hose.

RAASM 32024 – c/w 24 litre tank / Portable double acting - hand operated pump

Capacity: 220 grams per complete lever cycle / Max. oil density 240 SAE

Supplied with 16 litre wheeled-tank and 2 metre hose.

RAASM 32065 – c/w 65 litre tank / Portable double acting - hand operated pump

Capacity: 220 grams per complete lever cycle / Max. oil density 240 SAE

Supplied with 65 litre wheeled-tank and 2 metre hose.

RAASM 33016 – c/w 16 litre pressurise tank / Portable double acting - air operated oil dispenser

Working pressure 6 – 8 bar / Max. oil density 130 SAE

Supplied with 16 litre pressurise tank and 2 metre hose.

RAASM 33024 – c/w 24 litre pressurise tank / Portable double acting - air operated oil dispenser

Working pressure 6 – 8 bar / Max. oil density 130 SAE

Supplied with 24 litre pressurise wheeled tank and 2 metre hose.

Available Accessories:

Flexible and rigid hose

Hose reel complete with hose

Digital flow meter

Wide range of follower plates in different sizes

Discharge nozzle/gun

FAQS

Are all Raasm pumps air powered?

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.

What accessories are available for this pump?

Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
