Product code: RAASM 16 - 30 kg Drum Trolley Mounted Grease Dispensing Kits

RAASM 16 - 30 kg Drum Trolley Mounted Grease Dispensing Kits

Pump Type - Barrel

Max Flow Rate - 0.09M³H

Max Head - 4000M

Max Temp - 60°C

Max Viscosity - 60,000 cst

Max Solid Passage - 0mm

Self Priming - N

Pump Materials - Aluminium, Carbon Steel

Inlet/Outlet Sizes - 9mm

Drive - Air

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

£634.00 (ex VAT)

This product has a delivery lead time of 1-2 days

DESCRIPTION

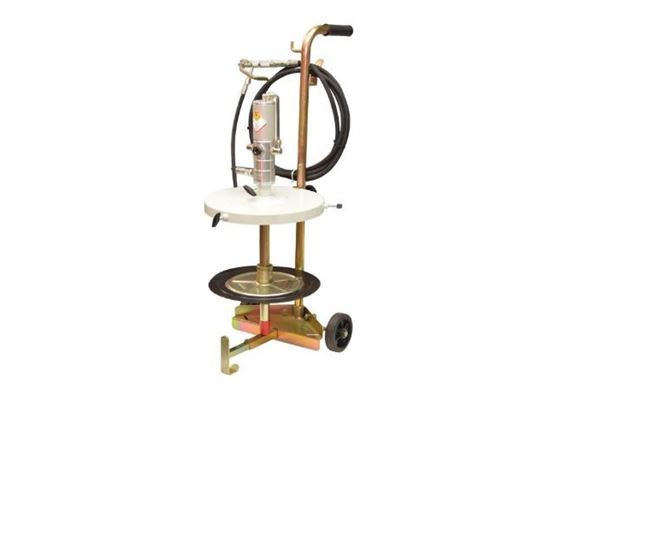

RAASM Trolley Mounted Grease Dispenser Kits for 16 – 30 kg Drums



Capacity

Up to 1500 g/min

Air Working Pressure

6 - 8 bar

Suitable Drums

16 – 30 Kg

Suction Tube Length

0.7 – 1.04 metres (Other sizes   available)

Drive Options

Air Operated



RAASM air operated grease pumps and are designed for transferring low - high viscosity grease and high viscosity oils depending on the model and configuration specified, these pumps can be either hand operated or air driven. RAASM grease pump range is available on a single or double acting configuration, the double acting pumps are capable of pumping on both up and down strokes hence the flow delivered on this construction design is more constant whilst the single acting pump only discharges the fluid on it's down-stroke and as a result the flow is less continuous.



The Raasm grease pump range is available in a huge variety of designs and capacities, from 1:1 to 50:1 ratios these air operated drum pumps are suitable for all kind of applications from simple small distance low viscosity grease transfer to industrial high viscosity grease distribution at high pressure. These pumps are available in several different materials such as aluminium, carbon steel and stainless steel, these pumps can be wall mounted for fixed installations or as a standard drum pump configuration suitable for drums, IBC tanks and other tank/container types. Pump tubes are also available in different length, must common sizes are from 700 to 1040 mm.



Seal materials available are NBR (Nitrile), VITON®, TEFLON® and PU (Polyurethane) for high pressure applications mainly used for 7:1 & 11:1 ratio pumps.



RASSM pumps are available with a wide range of accessories and can be supplied as a complete pump kit for fixed and mobile installations or for simply drum emptying, kits normally include a pump, hose and hose reel, discharge nozzle and digital flow meter also called digital litre counter.



These pump dispensing kit has been specifically designed for dispensing grease out of 16 – 30 kg drums.





Design Features/Benefits



        Working pressure up to 8 bar.

        Typically used for transferring medium-high viscosity grease and high viscosity oils at medium to high pressures.

        Suitable for 16 – 30 kg drums

        Available with follower plates

        Reliable compact design, easy to use and maintain.

        Available trolley mounted and as a complete pump kit.

        Suitable for mobile or fixed installations.







RAASM Air Operated Grease Dispenser Kits:


RAASM 64034 – Without follower plate / Suitable for 16 – 30 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62048 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover and nipple. Suitable for drums with an internal opening of 300 – 350 mm



RAASM 64035 – Suitable for 16 – 30 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62048 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 300 – 350 mm



RAASM 64032 – Without follower plate / Suitable for 16 – 30 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62048 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover and nipple. Suitable for drums with an internal opening of 260 – 300 mm



RAASM 64035 – Suitable for 16 – 30 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62048 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 260 – 300 mm










FAQS

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.
The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.
ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
