Product code: RAASM Air & Water Hose Reels

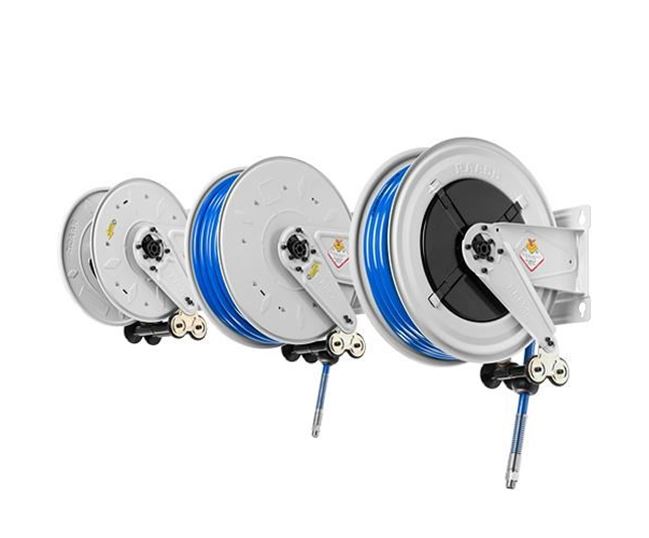

RAASM Air & Water Hose Reels

Pump Type - Barrel

Max Flow Rate - 5.1M³H

Max Head - 4000M

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - N

Pump Materials - Aluminium, Carbon Steel

Inlet/Outlet Sizes - 9mm to 25mm

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

£433.00 (ex VAT)

This product has a delivery lead time of 1-2 days

DESCRIPTION

RAASM Air & Water Hose Reels




Product

Air & water

Max. Working Pressure

Up to 400 bar

Materials

Painted steel, ABS, Stainless Steel

Hose Lengths

10 - 20 metres

Diameter

1/2” / 3/4” /  3/8” / 1” bore

Seal Material

Viton ® / Teflon®




RAASM hose reels, come with rewinding spring with constant tension, these hose reels are available in many versions: open or enclosed, fixed or swivelling as well as a wide range of materials such as  painted steel, stainless steel, ABS etc. They can be motor, pneumatic or hydraulic driven. The RAASM hose reels make possible managing in a practical and safe way all kind of flexible hoses.





Design features:


        Automatic stopping system allows hose to be locked at the required length

        Self-lubricating hose guide rollers

        Can be install almost anywhere, ceilings, floors, walls vehicles etc.

        Easy to install adjustable bracket allows the hose reels to be removed for any maintenance

        Adjustable hose stop and rewinding spring

        Corrosion proof – suitable for outdoor installation


Learn More about the various different types in our Hose Reel Guide



RAASM 8330.301 ½ – Open hose reel in painted steel with Viton® seals

Supplied with 12 metre 1/2” bore hose / Max. pressure 200 bar

Ideal for pressure washing / Supplied with 1 metre 1/2” inlet hose



RAASM 8390.105 – Open hose reel in painted steel with Viton® seals

Supplied with 10 metre 3/8” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 8390.107 – Open hose reel in painted steel with Viton® seals

Supplied with 10 metre 1/2” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 8530.101 – Open hose reel in painted steel with Viton® seals

Supplied with 20 metre 1/2” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 8540.101 – Open hose reel in painted steel with Viton® seals

Supplied with 15 metre 3/4” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 500mm 3/4” inlet hose



RAASM 8540.102 – Open hose reel in painted steel with Viton® seals

Supplied with 20 metre 3/4” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 500mm 3/4” inlet hose



RAASM 8540.103 – Open hose reel in painted steel with Viton® seals

Supplied with 15 metre 1” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1” inlet hose



RAASM 9430.101 – Open hose reel in painted steel with ABS spool and Viton® seals

Supplied with 10 metre 3/8” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9430.102 – Open hose reel in painted steel with ABS spool and Viton® seals

Supplied with 15 metre 3/8” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9430.103 – Open hose reel in painted steel with ABS spool and Viton® seals

Supplied with 10 metre 1/2” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9430.104 – Open hose reel in painted steel with ABS spool and Viton®seals

Supplied with 15 metre 1/2” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9450.101 – Enclosed hose reel in painted steel with ABS spool and Viton® seals

Supplied with 10 metre 3/8” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9450.102 – Enclosed hose reel in painted steel with ABS spool and Viton® seals

Supplied with 15 metre 3/8” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9450.103 – Enclosed hose reel in painted steel with ABS spool and Viton® seals

Supplied with 10 metre 1/2” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 9450.104 – Enclosed hose reel in painted steel with ABS spool and Viton® seals

Supplied with 15 metre 1/2” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with 1 metre 1/2” inlet hose



RAASM 89010 – Enclosed hose reel in painted steel with ABS spool and Viton® seals

Supplied with 11 metre /16” bore hose / Max. pressure 20 bar

Suitable for air & water / Supplied with bayonet hook and swivelling wall support



RAASM 8390.100 – Open 3/8” hose reel assembly in painted steel with Viton® seals

Without hose / Max. pressure 20 bar / Suitable for air & water



RAASM 8524.200 – Open swivelling 1/2” hose reel assembly in AISI 304 stainless steel with Viton® seals / Without hose / Max. pressure 150 bar / Suitable for oil & water



RAASM 8524.300 – Open swivelling 3/8” hose reel assembly in AISI 304 stainless steel with Viton® seals / Without hose / Max. pressure 200 bar / Suitable for water pressure washing



RAASM 8530.100 – Open 1/2” hose reel assembly in painted steel with Viton® seals

Without hose / Max. pressure 20 bar / Suitable for air & water



RAASM 8540.100 – Open 1” hose reel assembly in painted steel with Viton® seals

Without hose / Max. pressure 20 bar / Suitable for air, water & diesel



RAASM 8540.350 – Open 3/8” hose reel assembly in AISI 304 stainless steel with Teflon® seals

Without hose / Max. pressure 400 bar / Suitable for water pressure washing



RAASM 8542.100 – Open 1” hose reel assembly in AISI 304 stainless steel with Viton® seals

Without hose / Max. pressure 20 bar / Suitable for air & water



RAASM 8544.200 – Open 1” hose reel assembly in AISI 304 stainless steel with Viton® seals

Without hose / Max. pressure 150 bar / Suitable for oil & water



RAASM 8544.300 – Open 3/8” hose reel assembly in AISI 304 stainless steel with Viton® seals

Without hose / Max. pressure 200 bar / Suitable for water pressure washing



RAASM 8560.100 – Open 1” hose reel assembly in painted steel with Viton® seals

Without hose / Max. pressure 20 bar / Suitable for air, water & diesel



RAASM 8564.200 – Open 1” hose reel assembly in AISI 304 stainless steel with Viton® seals

Without hose / Max. pressure 100 bar / Suitable for water



RAASM 9434.200 – Open 1/2” hose reel assembly in AISI 304 stainless steel with ABS spool and Viton® seals / Without hose / Max. pressure 150 bar / Suitable for water & oil



RAASM 9434.300 – Open 1/2” hose reel assembly in AISI 304 stainless steel with ABS spool and Viton® seals / Without hose / Max. pressure 200 bar / Suitable for water
