Product code: RAASM 50 - 60 kg Drum Grease Dispensing Kits

RAASM 50 - 60 kg Drum Grease Dispensing Kits

Name: RAASM 50 - 60 kg Drum Grease Dispensing Kits
Brand: RAASM Pumps
Price: 732.00 GBP
Availability: InStock

Pump Type - Barrel

Max Flow Rate M³H - 0.114 M³H

Max Head - 880M

Pump Materials - Aluminium, Carbon Steel

Max Temp - 60°C

Max Viscosity - 60,000 cst

Max Solid Passage - 0mm

Self Priming - N

Inlet/Outlet Sizes - 19mm to 25mm

Drive - Air

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Max Flow LPM

Select Material

Select Max Head

Select Length (mm)

Select Outlet Size (mm)

Select Keg Size

Select Accessories

£732.00 (inc VAT) £610.00 (ex VAT)

This product has a delivery lead time of 1-2 days

ADD TO CART

DESCRIPTION

RAASM Grease Dispenser Kits for 50 – 60 kg Drums

Capacity	Up to 1900 g/min
Air Working Pressure	6 - 8 bar
Suitable Drums	50 – 60 Kg
Suction Tube Length	0.7 – 1.04 metres (Other sizes available)
Drive Options	Air Operated

RAASM air operated grease pumps and are designed for transferring low - high viscosity grease and high viscosity oils depending on the model and configuration specified, these pumps can be either hand operated or air driven. RAASM grease pump range is available on a single or double acting configuration, the double acting pumps are capable of pumping on both up and down strokes hence the flow delivered on this construction design is more constant whilst the single acting pump only discharges the fluid on it's down-stroke and as a result the flow is less continuous.

The Raasm grease pump range is available in a huge variety of designs and capacities, from 1:1 to 50:1 ratios these air operated drum pumps are suitable for all kind of applications from simple small distance low viscosity grease transfer to industrial high viscosity grease distribution at high pressure. These pumps are available in several different materials such as aluminium, carbon steel and stainless steel, these pumps can be wall mounted for fixed installations or as a standard drum pump configuration suitable for drums, IBC tanks and other tank/container types. Pump tubes are also available in different length, must common sizes are from 700 to 1040 mm.

Seal materials available are NBR (Nitrile), VITON®, TEFLON® and PU (Polyurethane) for high pressure applications mainly used for 7:1 & 11:1 ratio pumps.

RASSM pumps are available with a wide range of accessories and can be supplied as a complete pump kit for fixed and mobile installations or for simply drum emptying, kits normally include a pump, hose and hose reel, discharge nozzle and digital flow meter also called digital litre counter.

These pump dispensing kit has been specifically designed for dispensing grease out of 50 – 60 kg drums.

Design Features/Benefits

• Working pressure up to 8 bar.

• Typically used for transferring medium-high viscosity grease and high viscosity oils at medium to high pressures.

• Suitable for 50 – 60 kg drums

• Available with follower plates

• Reliable compact design, easy to use and maintain.

• Available trolley mounted and as a complete pump kit.

• Suitable for mobile or fixed installations.

RAASM Air Operated Grease Dispenser Kits:

RAASM 64145 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, discharge hose, discharge gun, drum cover, follower plate, nipple, air regulator and air quick coupler.

Suitable for drums with an internal opening of 370 – 420 mm

RAASM 64146 – Suitable for 50 – 60 kg drums / Capacity: 1900 g/min

Kit Contains; RAASM 63074 / 65:1 ratio pump, discharge hose, discharge gun, drum cover, follower plate, nipple, air regulator and air quick coupler.

Suitable for drums with an internal opening of 370 – 420 mm

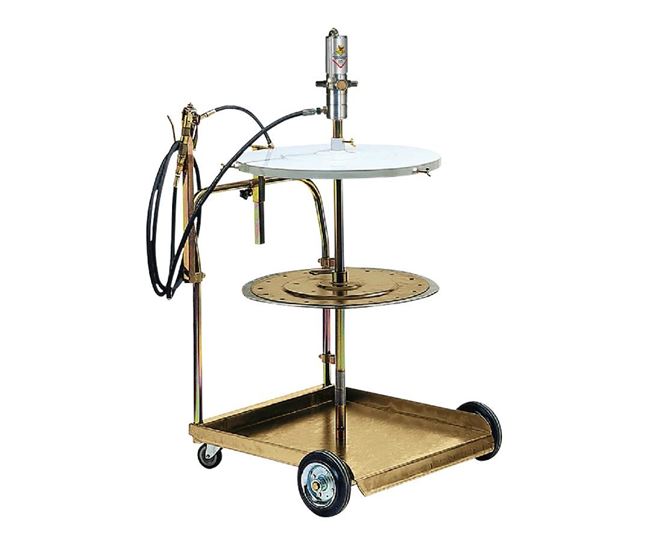

Trolley Mounted Options:

RAASM 64040 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover and nipple. Suitable for drums with an internal opening of 370 – 420 mm

RAASM 64041 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 370 – 420 mm

RAASM 64037 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover and nipple. Suitable for drums with an internal opening of 340 – 385 mm

RAASM 64041 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, 2 wheel trolley, discharge hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 340 – 385 mm

RAASM 64063 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, 4 wheel trolley, discharge hose, discharge gun, drum cover and nipple. Suitable for drums with an internal opening of 370 – 420 mm

RAASM 64064 – Suitable for 50 – 60 kg drums / Capacity: 1500 g/min

Kit Contains; RAASM 62074 / 50:1 ratio pump, 4 wheel trolley, discharge hose, discharge gun, drum cover, follower plate and nipple. Suitable for drums with an internal opening of 370 – 420 mm

FAQS

Are all Raasm pumps air powered?

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.

What accessories are available for this pump?

Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
