RAASM Drum Covers & Follower Plates

RAASM Grease Pump Accessories

Drum Covers:

RAASM 600 – 700 Series Drum Covers

Suitable for Ø 30 mm Suction Tubes

RAASM 65280 - Drum cover ø 280 mm (drums external ø 240 - 280 mm)

RAASM 65310 - Drum cover ø 310 mm (drums external ø 260 - 300 mm)

RAASM 65350 - Drum cover ø 350 mm (drums external ø 300 - 350 mm)

RAASM 65385 - Drum cover ø 385 mm (drums external ø 340 - 385 mm)

RAASM 65420 - Drum cover ø 420 mm (drums external ø 370 - 420 mm)

RAASM 65600 - Drum cover ø 600 mm (drums external ø 550 - 600 mm)

RAASM 900 – 1200 Series Drum Covers

Suitable for Ø 45 mm Suction Tubes

RAASM 10/50 - Drum cover ø 600 mm (drums external ø 550 - 600 mm)

RAASM 10/51 - Drum cover ø 420 mm (drums external ø 370 - 420 mm)

RAASM 10/52 - Drum cover ø 385 mm (drums external ø 340 - 385 mm)

RAASM Manual Pump Drum Covers

Suitable for Ø 25, 30 and 38 mm Suction Tubes

RAASM 65309 - Drum cover ø 337 mm

(Drums external ø 270 - 330 mm) for Art. 60311 (suction tube ø 25 mm)

RAASM 65311 - Drum cover ø 337 mm

(Drums external ø 270 - 330 mm) for Art. 60411 (suction tube ø 38 mm)

RAASM 65312 - Drum cover ø 337 mm

(Drums external ø 270 - 330 mm) for pumps with ø 30 mm suction tube

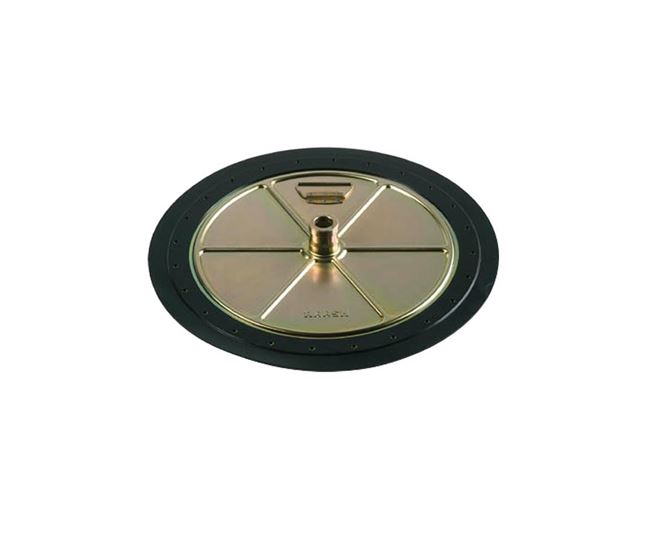

Grease Follower Plates:

Note: Follower plates are recommended as it improves the pump's capabilities as well as making sure the drum is almost 100% empty however, it must always be used for pumping hard grease (extremely viscous grease).

RAASM Follower Plates for 600 – 700 Series Pumps

Suitable for Ø 30 mm Suction Tubes

RAASM 66265 - Follower plate ø 265 mm (drum internal ø 240 - 260 mm)

RAASM 66310 - Follower plate ø 303 mm (drum internal ø 255 - 300 mm)

RAASM 66340 - Follower plate ø 340 mm (drum internal ø 300 - 330 mm)

RAASM 66370 - Follower plate ø 370 mm (drum internal ø 335 - 360 mm)

RAASM 66400 - Follower plate ø 400 mm (drum internal ø 360 - 400 mm)

RAASM 66590 - Follower plate ø 585 mm (drum internal ø 540 - 580 mm)

RAASM Follower Plates for 900 – 1200 Series Pumps

Suitable for Ø 45 mm Suction Tubes

RAASM 10/60 - Follower plate ø 585 mm (drum internal ø 540 - 580 mm)

RAASM 10/61 - Follower plate ø 400 mm (drum internal ø 360 - 400 mm)

RAASM 10/62 - Follower plate ø 370 mm (drum internal ø 335 - 360 mm)

RAASM 10/63 - Follower plate ø 310 mm (drum internal ø 255 - 300 mm)
