Product code: Raasm 1:1

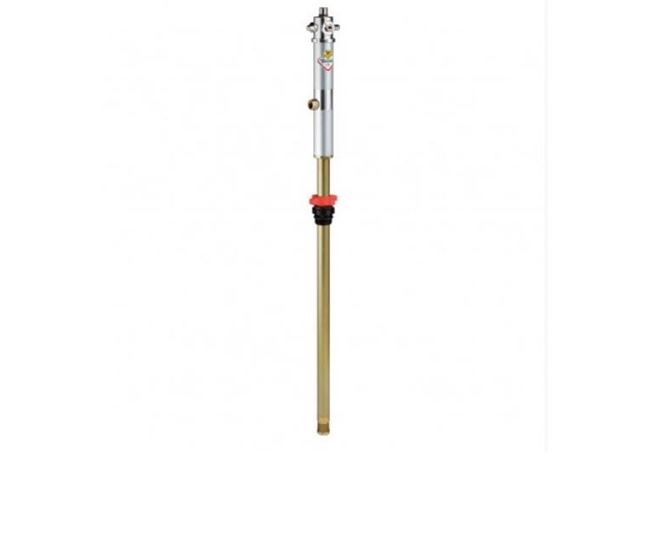

RAASM 1 - 1 Air Operated Oil Pumps

Name: RAASM 1 - 1 Air Operated Oil Pumps
Brand: RAASM Pumps
Price: 429.60 GBP
Availability: InStock

Pump Type - Barrel

Max Flow Rate M³H - 2.4 M³H

Max Head - 80M

Pump Materials - Aluminium, Carbon Steel

Max Temp - 60°C

Max Viscosity - 1500 cst

Max Solid Passage - 0mm

Self Priming - N

Inlet/Outlet Sizes - 9mm to 25mm

Drive - Air

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Max Flow LPM

Select Material

Select Max Head

Select Length (mm)

Select Outlet Size (mm)

Select Accessories

£429.60 (inc VAT) £358.00 (ex VAT)

This product has a delivery lead time of 1-2 days

ADD TO CART

DESCRIPTION

RAASM 1:1 Air Operated Oil Transfer Pumps

Capacity	Up to 40 l/min – 1:1 ratio
Air Working Pressure	6 - 8 bar
Suitable Drums	50 – 220 Kg
Max. Oil Viscosity	Up to 130 SAE
Suction Tube Length	0.7 – 1.04 metres
Drive Options	Air Operated

RAASM air operated oil pumps and are designed for transferring low, medium and high viscosity oils depending on the model and configuration specified, these pumps can be either hand operated or air driven. RAASM oil pump range is available on a single or double acting configuration, the double acting pumps are capable of pumping on both up and down strokes hence the flow delivered on this construction design is more constant whilst the single acting pump only discharges the fluid on it's down-stroke and as a result the flow is less continuous.

The Raasm oil pump range is available in a huge variety of designs and capacities, from 1:1 to 11:1 ratios these air operated drum pumps are suitable for all kind of applications from simple small distance low viscosity oil transfer to industrial high viscosity oil distribution at long distances. These pumps are available in several different materials such as aluminium, carbon steel and stainless steel, these pumps can be wall mounted for fixed installations or as a standard drum pump configuration suitable for drums, IBC tanks and other tank/container types. Pump tubes are also available in different length, must common sizes are from 700 to 1040 mm.

Seal materials available are NBR (Nitrile), VITON®, TEFLON® and PU (Polyurethane) for high pressure applications mainly used for 7:1 & 11:1 ratio pumps.

RASSM pumps are available with a wide range of accessories and can be supplied as a complete pump kit for fixed and mobile installations or for simply drum emptying, kits normally include a pump, hose and hose reel, discharge nozzle and digital flow meter also called digital litre counter.

The RAASM 1:1 air operated oil pumps are designed for transferring low-medium viscosity oils and lubricants with a max. viscosity of 130 SAE at short distances (low pressures).

Design Features/Benefits

• Working pressure up to 8 bar.

• 1:1 ratio typically used for low pressure transfer applications.

• Suitable for most drums 50 – 220 kg.

• Max. viscosity 130 SAE

• Standard suction tube sizes from 700 to 1040 mm (Other sizes upon request).

• Reliable compact design, easy to use and maintain.

• Available trolley mounted and as a complete pump kit.

• Suitable for mobile or fixed installations.

• Seal materials available are NBR (Nitrile), VITON® and TEFLON®

RAASM 1:1 Ratio Air Operated Oil Pumps:

RAASM 26090 – Wall mounted option without suction pump tube / Capacity: 35 l/min

Max. oil density 80 SAE / Supplied with Viton® seals

RAASM 26091 – Customisable option without suction pump tube / Capacity: 35 l/min

Max. oil density 80 SAE / Supplied with Viton® seals

RAASM 26093 – Suitable for 50 – 60 kg drums / Capacity: 35 l/min

Max. oil density 80 SAE / Supplied with carbon steel suction tube and Viton® seals

RAASM 26094 – Suitable for 180 – 220 kg drums / Capacity: 35 l/min

Max. oil density 80 SAE / Supplied with carbon steel suction tube and Viton® seals

RAASM 33080, 33070, 33060 – Wall mounted option without suction pump tube.

Capacity: 23 l/min / Max. oil density 80 SAE

RAASM 33080 supplied with NBR seals

RAASM 33070 supplied with Viton® seals

RAASM 33060 supplied with Teflon® seals

RAASM 33081, 33071, 33061 – Customisable option without suction pump tube.

Capacity: 23 l/min / Max. oil density 80 SAE

RAASM 33081 supplied with NBR seals

RAASM 33071 supplied with Viton® seals

RAASM 33061 supplied with Teflon® seals

RAASM 33082, 33072, 33094 – Suitable for 180 – 220 kg drums / Carbon steel suction tube

Without bung adaptor / Capacity: 23 l/min / Max. oil density 80 SAE

RAASM 33082 supplied with NBR seals

RAASM 33072 supplied with Viton® seals

RAASM 33094 supplied with Teflon® seals

RAASM 33083, 33073, 33096– Suitable for 180 – 220 kg drums / Carbon steel suction tube

With bung adaptor / Capacity: 23 l/min / Max. oil density 80 SAE

RAASM 33083 supplied with NBR seals

RAASM 33073 supplied with Viton® seals

RAASM 33096 supplied with Teflon® seals

RAASM 33170, 33160 – Wall mounted option without suction pump tube.

Capacity: 40 l/min / Max. oil density 130 SAE

RAASM 33170 supplied with Viton® seals

RAASM 33160 supplied with Teflon® seals

RAASM 33172, 33194 – Suitable for 180 – 220 kg drums / Carbon steel suction tube

Without bung adaptor / Capacity: 40 l/min / Max. oil density 130 SAE

RAASM 33172 supplied with Viton® seals

RAASM 33194 supplied with Teflon® seals

RAASM 33173, 33196 – Suitable for 180 – 220 kg drums / Carbon steel suction tube

With bung adaptor / Capacity: 40 l/min / Max. oil density 80 SAE

RAASM 33173 supplied with Viton® seals

RAASM 33196 supplied with Teflon® seals

RAASM 1:1 Stainless Steel AISI 304 Pumps

These RAASM stainless steel 1:1 pump range is ideal for liquid antifreeze and windshield washing liquid.

RAASM 33360 – Wall mounted option without suction pump tube / Capacity: 30 l/min

Max. oil density 50 SAE / Supplied with Viton® seals

RAASM 33300 – Suitable for 180 – 220 kg drums / Capacity: 30 l/min

c/w wall bracket, AISI 304 suction tube and pump to tube hose

Max. oil density 50 SAE / Supplied with AISI 304 stainless steel suction tube and Viton® seals

Available Accessories:

Flexible and rigid hose

Hose reel complete with hose

Digital flow meter

Wide range of follower plates in different sizes

Discharge nozzle/gun

FAQS

Are all Raasm pumps air powered?

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.

What accessories are available for this pump?

Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
