Product code: Atex FAT-SO

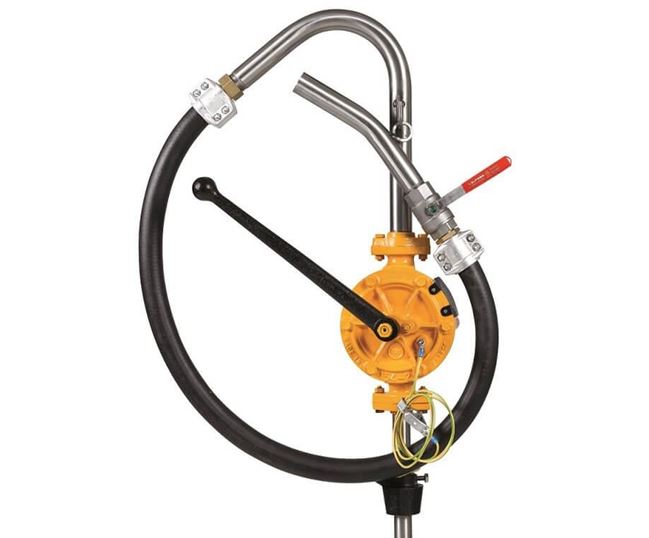

North Ridge Atex FAT-SO Semi Rotary Hand Pump Kit for Solvents

Pump Type - Hand

Max Flow Rate M³H - 2 M³H

Max Head - 15M

Pump Materials - Brass, Cast Iron

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 12mm to 25mm

Max Suction Lift - 1.5M

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

£1602.00 (inc VAT) £1335.00 (ex VAT)

This product has a delivery lead time of 1 Week

ADD TO CART

DESCRIPTION

FAT-SO Atex Semi Rotary Hand Pump Kit for Solvents

Flow Rate	Up to 2m³/hr
Head (Pressure)	Up to 15m
Inlet/Outlet Sizes	1/2” to 1”
Drive Options	Hand operated

The FAT-SO semi-rotary hand pump kit is Atex rated and designed for the transfer of solvents, other flammable fluids and for use in potentially flammable environments. This range is constructed with a cast iron body, cast iron handle and brass internal mechanism. It is supplied with a 2m earthing cable and a 300 micron filter for protecting the pump from any unwanted solid particles.

These Atex hand pump kits are supplied with bung adapter, 1m rigid suction tube for drums, outlet elbow, flexible delivery hose and stainless steel spout with ¼ turn valve. They are available with manual trigger nozzle and flow meter on request.

Common pumped fluids for this Atex pump range include; water, diesel, kerosene, Jet A1 fuel, petrol, alcohol, gas oil, solvents, toluene, acetone, trichloroethylene, white spirit and any other low viscosity compatible fluids.

These manual Atex pumps are ideal in areas where power is not available, popular applications include; emptying barrels and drums, garage use, transport, filling stations, aerospace, aviation, supplying fuel to industrial engines, marine engines or generating sets.

Product summary

• Atex Semi rotary hand pump kit for flammable fluids

• Self-priming

• Constructed with cast iron casing, cast iron handle and brass internal mechanism

• Supplied with Viton flange o-ring as standard, PTFE o-ring available on request

• Comes complete with 2m earthing cable

• Comes complete with 300 micron filter for protecting the pump

• Complies with European directive ATEX 94/9/EC (Tf<120°C) Ex II 2 GD IICT4 (Tf<120°C).

• These kits are available with manual trigger nozzle and flow meter on request.

FAQS

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, the internal components such as the impeller or pistons, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices. Please contact us if you are unsure what materials are best and we will try our best to help.

This pump is hand operated; how do I know what flow rate will be achieved?

Please be aware that the flow rate displayed is for the largest model from this specific range of hand pumps. These pumps are hand operated, meaning that the flow rate is proportional to how many times the pump handle is rotated. The faster the operator pumps, the higher the flow rate. Figures are based on an average person operating the pump.

What accessories are available for this pump?

Our hand pumps can be supplied with various individual accessories if a complete kit is not required, these include; bung adapter, rigid suction tube for drums, outlet elbow, flexible delivery hose, mechanical flow metre and anti-drip spout or manually operated trigger nozzle.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
