Product code: Excelsior-B

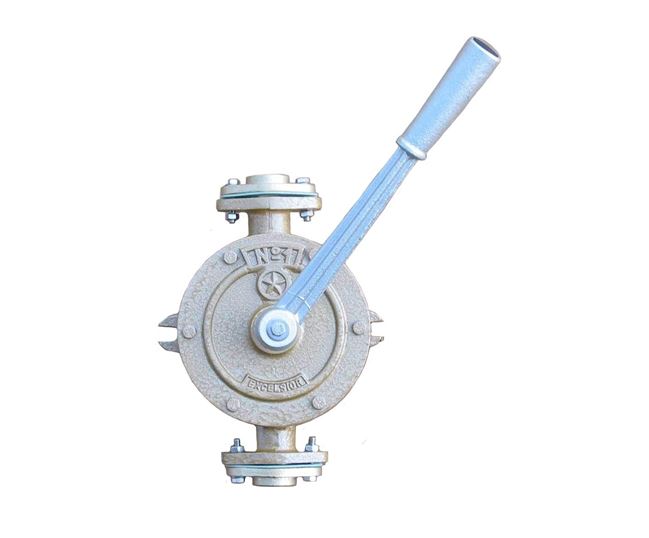

North Ridge Excelsior-B Bronze Semi Rotary Hand Pump

Pump Type - Hand

Max Flow Rate M³H - 4.8 M³H

Max Head - 25M

Pump Materials - Bronze

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 9mm to 12mm

Max Suction Lift - 1.5M

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

Select Seals

£825.60 (inc VAT) £688.00 (ex VAT)

This product has a delivery lead time of 1-2 Weeks

ADD TO CART

DESCRIPTION

Excelsior-B Bronze Semi Rotary Hand Pump

Flow Rate	Up to 4.8m³/hr
Head (Pressure)	Up to 25m
Inlet/Outlet Sizes	3/8” to 1 1/2”
Drive Options	Hand operated

The Excelsior-B series of semi rotary hand pumps are double acting, self priming and constructed with a bronze body and bronze internals. There are 2 main versions of this pump series; the B and B-be. The B version is manufactured with Nitrile rubber seals (NBR) and the B-be version is manufactured with Viton seals.

These manual pumps are ideal in areas where power is not available, popular applications include; sea water transfer, marine, military, emptying barrels and drums, supplying fuel to industrial engines, marine engines or generating sets.

Common pumped fluids for the B version are water and sea water. Common fluids for the B-be version are water, sea water, solvents, fuels and alcohols.

The connections on this hand pump series are flanged as standard with screwed centres, however the E00 model is supplied with threaded connections.

Product summary

• Semi rotary hand pump

• Lightweight

• Self-priming

• Suitable for clean low viscosity fluids without solids

• Constructed with bronze casing and bronze internals.

• B version with Nitrile rubber seals (NBR). B-be version with Viton seals

• Flanged connections with screwed centres as standard (E00 model is supplied with threaded connections)

FAQS

Is this pump available with a tube set to fit inside a drum?

Yes, we can supply a tube set with this pump to enable it to fit inside a container. The standard tube set lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

What accessories are available for this pump?

Our hand pumps can be supplied with various individual accessories or as a complete kit if required, these include; bung adapter, rigid suction tube for drums, outlet elbow, flexible delivery hose, mechanical flow metre and anti-drip spout or manually operated trigger nozzle.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, the internal components such as the impeller or pistons, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices. Please contact us if you are unsure what materials are best and we will try our best to help.

This pump is hand operated; how do I know what flow rate will be achieved?

Please be aware that the flow rate displayed is for the largest model from this specific range of hand pumps. These pumps are hand operated, meaning that the flow rate is proportional to how many times the pump handle is rotated. The faster the operator pumps, the higher the flow rate. Figures are based on an average person operating the pump.
