Product code: G.P. Voltiana Inox

North Ridge G.P. Voltiana Inox Stainless Steel 316 Rotary Hand Pump Kit

Pump Type - Hand

Max Flow Rate M³H - 2.64 M³H

Max Head - 40M

Pump Materials - AISI316

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 25mm

Max Suction Lift - 1.5M

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

£2784.00 (inc VAT) £2320.00 (ex VAT)

This product has a delivery lead time of 1-2 Weeks

ADD TO CART

DESCRIPTION

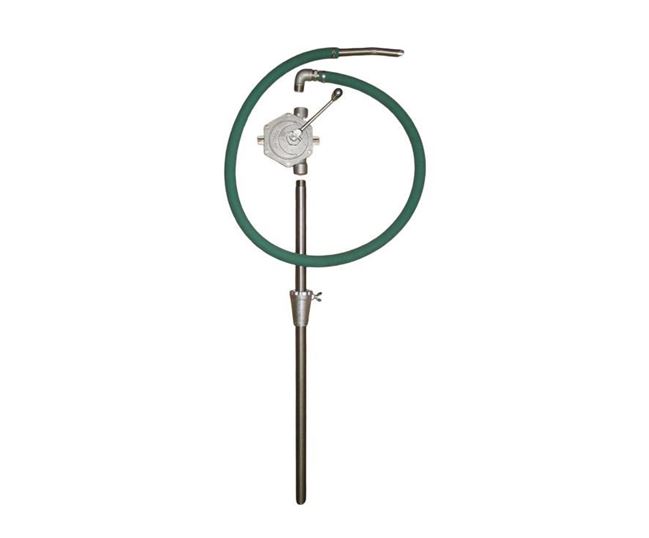

G.P. Voltiana Inox Stainless Steel 316 Full Rotary Hand Pump Kit

Flow Rate	Up to 2.64m³/hr (0.7 litres per revolution)
Head (Pressure)	Up to 40m
Inlet/Outlet Sizes	1”
Drive Options	Hand operated

The G.P. Voltiana Inox semi rotary hand pump kit is designed for transferring fluids from drums or barrels. This kit comes complete with the Voltiana Inox series of fully rotary hand pumps, they reversible, self priming and can be operated in a full 360° revolution. It is constructed from stainless steel 316, the vanes and seals are made from PTFE.

These hand pump kits are supplied with anti-drip spout, bung adapter, 1m rigid suction tube for drums, outlet elbow and flexible delivery hose.

This manual pump is ideal in areas where power is not available, popular applications include; food industry, drink and wine industry, paint industry, cosmetic industry, chemical industry, pharmaceutical industry and manufacturing industry.

Common pumped fluids include; acids, solvents, chemicals, low viscosity edible oils, wine, alcohol and other low viscosity edible fluids.

Product summary

• Fully rotary hand pump kit in stainless steel 316

• Reversible

• Self-priming

• Light weight (Only weighs 10Kg)

• Suitable for low viscosity fluids without solids

• Vanes and seals made from PTFE

FAQS

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, the internal components such as the impeller or pistons, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices. Please contact us if you are unsure what materials are best and we will try our best to help.

This pump is hand operated; how do I know what flow rate will be achieved?

Please be aware that the flow rate displayed is for the largest model from this specific range of hand pumps. These pumps are hand operated, meaning that the flow rate is proportional to how many times the pump handle is rotated. The faster the operator pumps, the higher the flow rate. Figures are based on an average person operating the pump.

What accessories are available for this pump?

Our hand pumps can be supplied with various individual accessories if a complete kit is not required, these include; bung adapter, rigid suction tube for drums, outlet elbow, flexible delivery hose, mechanical flow metre and anti-drip spout or manually operated trigger nozzle.
