Product code: Voltiana Cast Iron

North Ridge Voltiana Cast Iron Full Rotary Hand Pump

Pump Type - Hand

Max Flow Rate M³H - 2.76 M³H

Max Head - 10M

Pump Materials - Bronze

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Inlet/Outlet Sizes - 12mm to 25mm

Max Suction Lift - 1.5M

DOWNLOADS

SELECT MODEL

Select Max Flow M³H

Select Material

Select Max Head

Select Outlet Size (mm)

£406.80 (inc VAT) £339.00 (ex VAT)

This product has a delivery lead time of 1-2 Weeks

ADD TO CART

DESCRIPTION

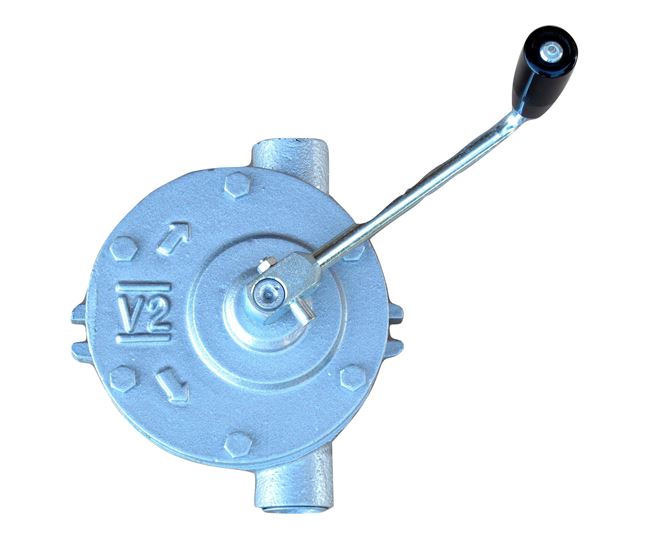

Voltiana Cast Iron Full Rotary Hand Pump

Flow Rate	Up to 2.76m³/hr
Head (Pressure)	Up to 10m
Inlet/Outlet Sizes	1/2” to 1”
Drive Options	Hand operated

The Voltiana series of fully rotary hand pumps are reversible, self priming and can be operated in a full 360° revolution. They are constructed with a cast iron body and with either a bronze rotor (GB version) or cast alloy rotor (GL version). The wetted internal parts are constructed from stainless steel, acetal resin POM and NBR.

These manual pumps are ideal in areas where power is not available, popular applications include; emptying barrels and drums, irrigation or garden use, garage use, transport, filling stations, supplying fuel to industrial engines, marine engines or generating sets.

Common pumped fluids for the GB version are fresh water, diesel and low viscosity oil. Common fluids for the GL version are diesel and low viscosity oil.

The connections on this hand pump series are threaded as standard.

This unit can be supplied with various individual accessories or as a complete kit if required, these include; anti-drip spout, bung adapter, rigid suction tube for drums, outlet elbow and flexible delivery hose.

Product summary

• Fully rotary hand pump

• Reversible

• Works in both Horizontal and Vertical Installation

• Self-priming

• Light weight (Largest model is only 4.5Kg)

• Suitable for clean low viscosity fluids without solids

• Constructed with cast iron casing

• GB version with bronze rotor. GL version with cast alloy rotor

• Threaded connections

FAQS

Is this pump available with a tube set to fit inside a drum?

Yes, we can supply a tube set with this pump to enable it to fit inside a container. The standard tube set lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

What accessories are available for this pump?

Our hand pumps can be supplied with various individual accessories or as a complete kit if required, these include; bung adapter, rigid suction tube for drums, outlet elbow, flexible delivery hose, mechanical flow metre and anti-drip spout or manually operated trigger nozzle.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, the internal components such as the impeller or pistons, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices. Please contact us if you are unsure what materials are best and we will try our best to help.

This pump is hand operated; how do I know what flow rate will be achieved?

Please be aware that the flow rate displayed is for the largest model from this specific range of hand pumps. These pumps are hand operated, meaning that the flow rate is proportional to how many times the pump handle is rotated. The faster the operator pumps, the higher the flow rate. Figures are based on an average person operating the pump.
