Product code: Voltiana Inox

North Ridge Voltiana Inox Stainless Steel 316 Full Rotary Hand Pump

Pump Type - Hand

Max Flow Rate - 2.4M³H

Max Head - 40M

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - Y

Pump Materials - AISI316

Inlet/Outlet Sizes - 25mm

Max Suction Lift - 1.5M

DOWNLOADS

SELECT MODEL

£1726.00 (ex VAT)

This product has a delivery lead time of 1-2 Weeks

DESCRIPTION

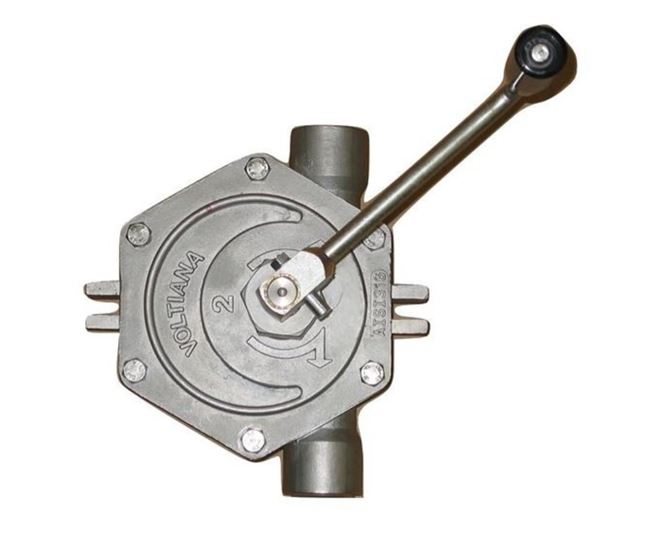

Voltiana Inox Stainless Steel 316 Full Rotary Hand Pump



Flow Rate

Up to 2.4m³/hr (0.7 litres per revolution)

Head (Pressure)

Up to 40m

Inlet/Outlet Sizes

1”

Drive Options

Hand operated





The Voltiana Inox fully rotary hand pump is reversible, self priming and can be operated in a full 360° revolution. It is constructed from stainless steel 316, the vanes and seals are made from PTFE.



This manual pump is ideal in areas where power is not available, popular applications include; food industry, drink and wine industry, paint industry, cosmetic industry, chemical industry, pharmaceutical industry and manufacturing industry.



Common pumped fluids include; acids, solvents, chemicals, low viscosity edible oils, wine, alcohol and other low viscosity edible fluids.



The connections on this hand pump series are threaded as standard.



This unit can be supplied with various individual accessories or as a complete kit if required, these include; bung adapter, anti-drip spout, rigid suction tube for drums, outlet elbow and flexible delivery hose.





Product summary



         Fully rotary hand pump in stainless steel 316

         Reversible

    Works in both Horizontal and Vertical Installation

         Self-priming

         Light weight (Only weighs 5.5Kg)

         Suitable for low viscosity fluids without solids

         Vanes and seals made from PTFE

         Threaded connections


Read more about hand Pumps in our Guide

FAQS

The Voltiana Inox can be installed either horizontally or vertically and will self prime when installed in either orientation.
Yes, we can supply a tube set with this pump to enable it to fit inside a container. The standard tube set lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.
Our hand pumps can be supplied with various individual accessories or as a complete kit if required, these include; bung adapter, rigid suction tube for drums, outlet elbow, flexible delivery hose, mechanical flow metre and anti-drip spout or manually operated trigger nozzle.
Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the pump casing, the internal components such as the impeller or pistons, o-ring and mechanical seal. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices. Please contact us if you are unsure what materials are best and we will try our best to help.
Please be aware that the flow rate displayed is for the largest model from this specific range of hand pumps. These pumps are hand operated, meaning that the flow rate is proportional to how many times the pump handle is rotated. The faster the operator pumps, the higher the flow rate. Figures are based on an average person operating the pump.
