Pump Type - Progressing Cavity
Max Flow Rate - 600M³H
Max Head - 480M
Max Temp - 150°C
Max Viscosity - 1,000,000 cst
Max Solid Passage - 30mm
Self Priming - Y
Pump Materials - AISI304, AISI316, Cast Iron, Duplex
Inlet/Outlet Sizes - 25mm to 300mm
Drive - AC Electric, Bareshaft
Max Suction Lift - 8M

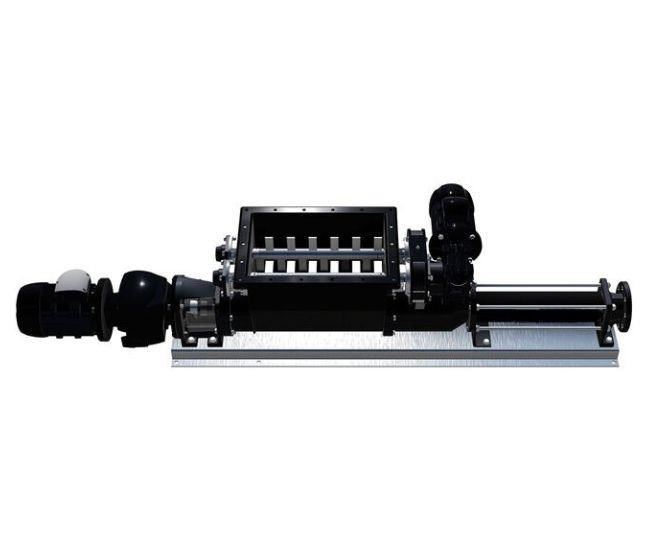

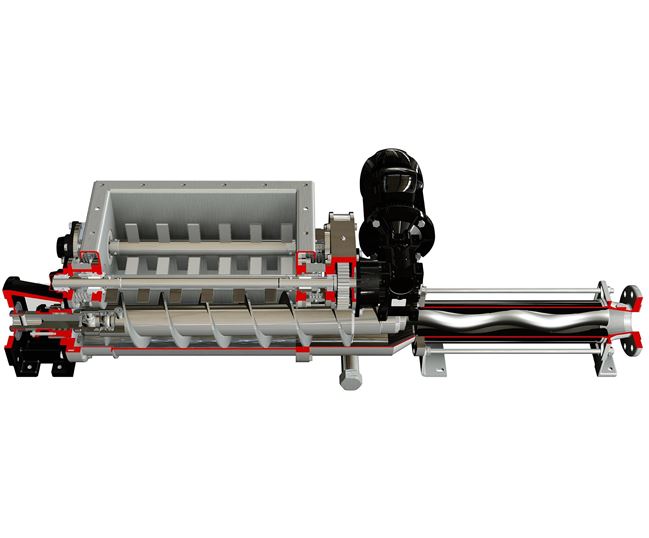

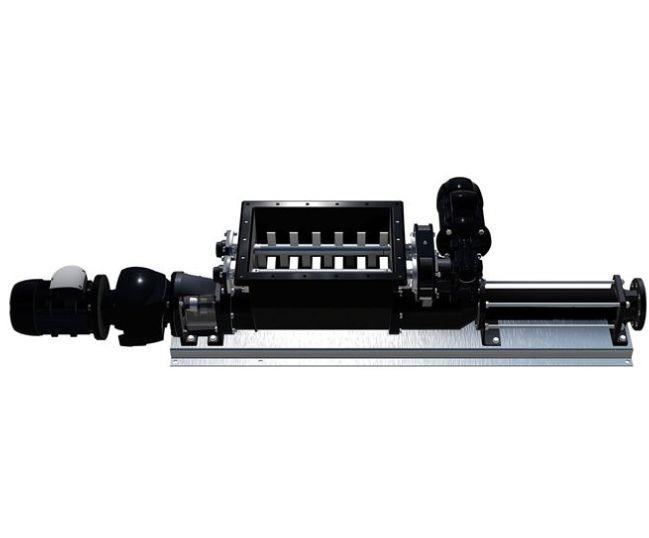

The Nova Rotors DHB/JHB series of progressive cavity pump is installed with a wide hopper and enlarged auger screw to convey high viscosity and dry products into the pump. In this variation, two sets of external motorised bridge breaker paddles are installed alongside the enlarged auger screw that makes this model excellent at handling doughs, minced meats and solids of considerable size such as fruits and vegetables. The motorised paddles and enlarged auger screw makes this progressive cavity pump capable of transferring fluids with up to 40% dry solids content.
There are two main versions of this progressive cavity pump series, each distinguished by how the motor is coupled to the pump. For the DHB type, the motor is directly coupled to the pump to ensure a compact and easy maintenance design. The JHB type is long coupled where a flexible coupling is installed between the pump and motor. The JHB type is more robust as all the forces during pumping are absorbed by the bearing housing rather than the motor.
The casing of this positive displacement pump can be constructed from various materials including cast iron, stainless steel 304, stainless steel 316 and duplex stainless steel. The rotor is available in stainless steel 420, 304, 316 and duplex, while the stator can be supplied in NBR, EPDM, FPM, HNBR, Hypalon and PTFE. Such a wide range of material choices makes this pump series extremely versatile and capable of pumping a vast range of fluids.
Sealing options for this helical rotor pump include gland packing, gland packing with flushing, single mechanical seal, single mechanical seal with quench, double mechanical seal, single or double cartridge seals and API rated sealing systems.
This progressive cavity pump is Atex certified for handling flammable fluids and installation in non-safe areas. API 676 certification is also available if required.
This progressive cavity pump is ideal for many applications in the industrial and marine markets, including; sewage sludge, dehydrated sludge, fish waste, minced meats, fruits and vegetables, doughs, paste, water treatment, industrial sludge, detergents, paper pulp, bio-waste, marine and agriculture.
• Fitted with wide hopper, enlarged auger screw and two sets of motorised bridge breaker paddles. Capable of handling fluids with up to 40% dry solids content
• Close coupled and long coupled variations
• Wide range of material options
• Modern sealed stator design, no o-ring required
• Modern rubber sleeve design to improve resistance to abrasive solids
• Numerous sealing options, including; gland packing, gland packing with flushing, single mechanical seal, single mechanical seal with quench, double mechanical seal, single or double cartridge seals and API rated sealing systems.
• Can handle viscous fluids up to 1,000,000cp
• Incorporated bearing lubrication system
• Excellent self-priming capability
• Reversible flow up to 3 bar as standard, Up to 12 bar with hydraulic balance
• Excellent at pumping fluids containing solids in suspension
• Excellent for shear sensitive fluids due to low pulsations
• Single phase and three phase 50hz / 60hz motors
• Marine certification available
• ATEX, API676, food grade EHEDG certifications available
• Various accessories available, including; dry running protection, bypass valve, control panel, inverter, heating jacket, grinder and others on request
