Product code: Azcue MN Pump & Spare Parts

Azcue MN Pump & Spare Parts

Name: Azcue MN Pump & Spare Parts
Brand: Azcue Pumps

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

Azcue MN Pump & Spare Parts

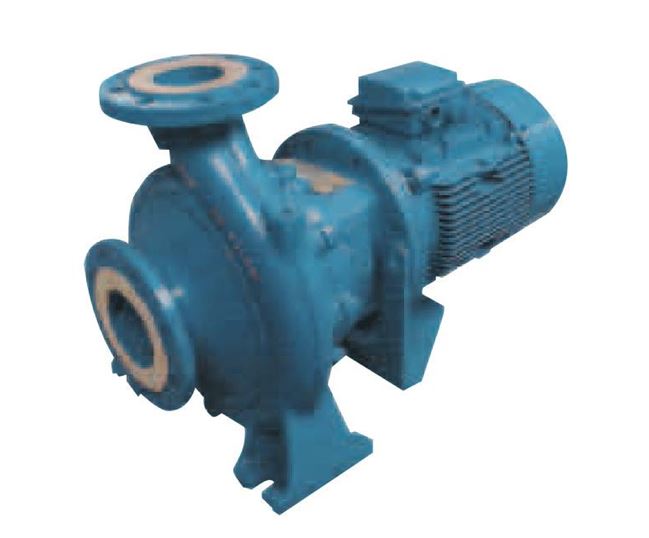

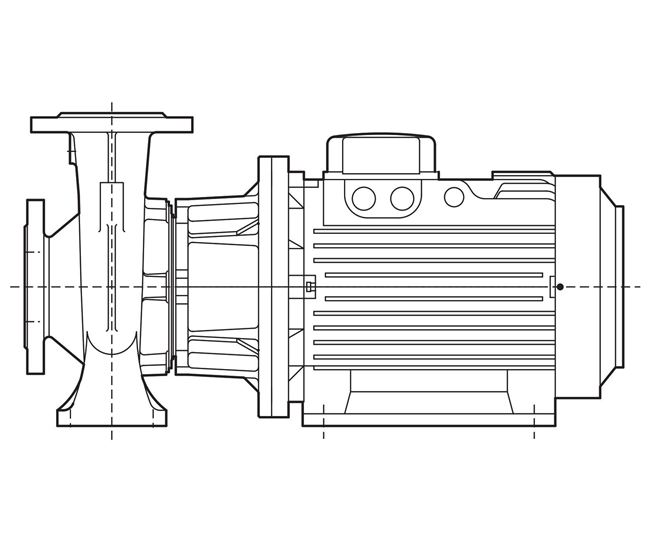

Azcue pumps, also referred to as Bombas Azcue, are a Spanish manufacturer of marine type approved pumps. Their MN range of horizontal centrifugal pumps are of a close coupled compact design, with the largest models capable of producing flow rates up to 500m³/hr and pressures up to 10 bar.

With their onsite foundry, Azcue have the flexibility produce their MN series of centrifugal pumps in various materials to suit a wide range of marine vessel applications, including cast iron, ductile iron, bronze, aluminium bronze, stainless steel 304/316 and duplex stainless steel. By adhering to type approved standards from classification bodies such as Lloyds, DNV, Bureau Veritas and ABS, and by conforming to DIN 24255, these pumps are dimensionally interchangeable with current installed pumps or can be specified for new applications involving sea water, fresh water and low viscosity fuel oils such as the below:

· Ballast transfer and ballast water treatment systems

· Sea water general service

· Deck washing

· High temperature and low temperature Boiler feed

· Sea water/Fresh water cooling

· Aquaculture

· Low solids content grey water transfer

· Fuel transfer, including marine diesel.

· Sea water injection

· Scrubber systems

Special versions with either electric (MN-EP Version) or air powered (MN-VP Version) priming pumps to make a complete self-priming pump are available on request. MN series pumps with high temperature seals and Atex versions for flammable fluids/environments can also be manufactured if required.

North Ridge Pumps have a great deal of experience supplying spare parts for Azcue pumps, below are some of the common models we supply spare parts and complete replacement pumps for.

MN 32/125	MN 65/200
MN 32/160	MN 65/250
MN 32/200	MN 65/315
MN 32/250	MN 80/160
MN 40/125	MN 80/200
MN 40/160	MN 80/250
MN 40/200	MN 80/315
MN 40/250	MN 100/160
MN 40/315	MN 100/200
MN 50/125	MN 100/250
MN 50/160	MN 100/315
MN 50/200	MN 125/200
MN 50/250	MN 125/250
MN 50/315	MN 150/200
MN 65/125	MN 150/250
MN 65/160

Click here to view all Azcue products

FAQS

What spare parts do you supply?

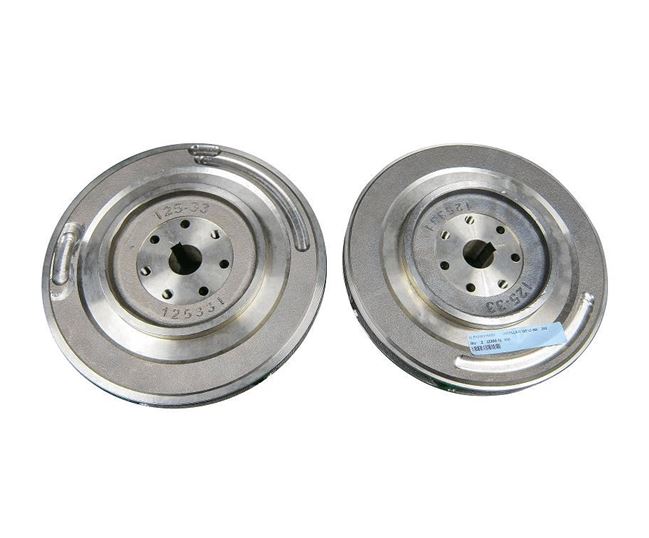

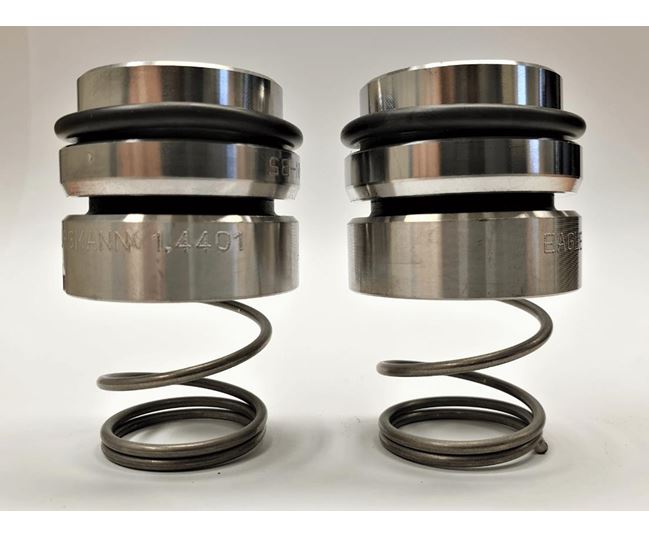

We supply all parts associated with the Azcue MN series of horizontal centrifugal pumps, these include; impellers, shafts, mechanical seals, casings, o-rings and gaskets. Any parts labelled on the drawing and parts list are available for purchase.

How do I identify what spare parts I need for my pump?

The pump needs to be disassembled and inspected as part of a maintenance program to correctly identify any damaged parts. The drawing and parts list then need to be viewed to find the correct part description and position number.

What information do you require to provide a quotation for spare parts?

The basic information required to obtain a quotation includes; the pump model number, serial number if available, description or name of the part and the position number of the part if available. This information allows us to correctly identify the parts required and to identify the correct materials. The serial number is a 6 digit number, beginning with either 1, 2, 3 or 4 depending on the age of the pump.

My pump needs to be repaired frequently, is there something wrong?

Premature pump failure can be an indication of system problems or incorrect pump selection. Common causes of premature pump failure include; incompatibility of the pump materials with the fluid, incorrect pipework size, incorrect type of pump and incorrect size of pump. We can help identify the cause of your pump failure if you provide the following information; description of the application, fluid being pumped, viscosity, temperature, flow rate required, pressure required, inlet conditions and bore of pipework.

Should I purchase spare parts and repair my pump or purchase a complete new pump?

This depends on several factors; how frequently are spare parts required? how long has the pump been in operation? and the price of the required spare parts versus the cost of a complete new pump. For example, if a new casing, impeller, shaft and mechanical seal are required, then it is more cost effective to purchase a complete new pump as a large proportion of the high value parts are required. If the pump is wearing frequently and prematurely, then this may be an indication that the wrong type or size of pump is installed. It is a good idea to talk to us in this situation as we may be able to identify the issue with your pump or system and select a more suitable pump for your requirements.

Are the position numbers of the spare parts the actual part codes?

No, the position numbers of the spare parts from the drawings are generic codes consistent across all pump ranges. For example, 4200 is the code for mechanical seal and 4610 is the code for o-rings. This is to make it simple for customers when requesting quotations for spare parts, the full part code is obtained once the goods have been shipped.

How do I obtain spare parts for my VAC electric priming pump?

The VAC priming pump is bolted to the main centrifugal pump and connected via pipework, this unit has its own model number and serial number. We require the model number, serial number and list of required parts in order to provide a quotation.

Why is my VAC electric priming pump overheating?

The VAC pump is fitted to the main centrifugal pump to assist with priming. It is designed to run for a short period of time before it begins to overheat, approximately 30 seconds. If the distance you are priming is significant and causing a long priming time, then you will require a cooling tank to assist the VAC pump or to switch to an air driven priming device to avoid overheating entirely.
