Product code: Azcue C & MVC Pump & Spare Parts

Azcue C & MVC Pump & Spare Parts

Name: Azcue C & MVC Pump & Spare Parts
Brand: Azcue Pumps

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

Azcue C & MVC Pump & Spare Parts

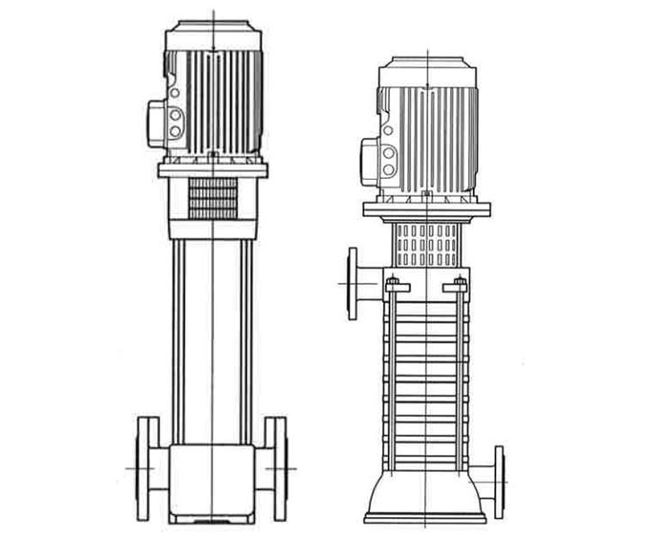

Azcue pumps, also referred to as Bombas Azcue, are a Spanish manufacturer of marine type approved pumps. Their C & MVC range of vertical inline multistage pumps are ideal for applications where space saving is paramount, with the largest models capable of producing flow rates up to 40m³/hr and high pressures up to 20 bar.

With their onsite foundry, Azcue have the flexibility produce their C & MVC series of vertical multistage pumps in various materials to suit a wide range of marine vessel applications, including cast iron and stainless steel. By adhering to type approved standards from classification bodies such as Lloyds, DNV, Bureau Veritas and ABS, these pumps are dimensionally interchangeable with current installed pumps or can be specified for new applications involving clean fluids such as sea water, fresh water and low viscosity fuel oils, typical applications are detailed below:

· Boiler feed

· Reverse osmosis and desalination

· Pressure boosting

· Sea water and fresh water circulation

· Condensate extraction

· Fire-fighting

· Fresh water and sea water cooling

· Aquaculture

Special versions with high temperature seals for fluids up to 120°C and Atex versions for flammable fluids/environments can also be manufactured if required.

North Ridge Pumps have a great deal of experience supplying spare parts for Azcue pumps, below are some of the common models we supply spare parts and complete replacement pumps for.

CR 1

CR 3

CR 5

CRI 1

CRI 3

CRI 5

CRN 1

CRN 3

CRN 5

MVC

Click here to view all Azcue products

FAQS

What spare parts do you supply?

We supply all parts associated with the Azcue C & MVC series of vertical multistage pumps, these include; impellers, shafts, mechanical seals, casings, o-rings and gaskets. Any parts labelled on the drawing and parts list are available for purchase.

How do I identify what spare parts I need for my pump?

The pump needs to be disassembled and inspected as part of a maintenance program to correctly identify any damaged parts. The drawing and parts list then need to be viewed to find the correct part description and position number.

What information do you require to provide a quotation for spare parts?

The basic information required to obtain a quotation includes; the pump model number, serial number if available, description or name of the part and the position number of the part if available. This information allows us to correctly identify the parts required and to identify the correct materials. The serial number is a 6 digit number, beginning with either 1, 2, 3 or 4 depending on the age of the pump.

My pump needs to be repaired frequently, is there something wrong?

Premature pump failure can be an indication of system problems or incorrect pump selection. Common causes of premature pump failure include; incompatibility of the pump materials with the fluid, incorrect pipework size, incorrect type of pump and incorrect size of pump. We can help identify the cause of your pump failure if you provide the following information; description of the application, fluid being pumped, viscosity, temperature, flow rate required, pressure required, inlet conditions and bore of pipework.

Should I purchase spare parts and repair my pump or purchase a complete new pump?

This depends on several factors; how frequently are spare parts required? how long has the pump been in operation? and the price of the required spare parts versus the cost of a complete new pump. For example, if a new casing, impellers, shaft and mechanical seal are required, then it is more cost effective to purchase a complete new pump as a large proportion of the high value parts are required. If the pump is wearing frequently and prematurely, then this may be an indication that the wrong type or size of pump is installed. It is a good idea to talk to us in this situation as we may be able to identify the issue with your pump or system and select a more suitable pump for your requirements.

Can multistage pumps handle solids?

No, due to the tight clearances inside the pump head, solids passing through the pump will cause a blockage and seize the pump. All fluids being pumped must be clean and free of solid particles. Installing a filter before the pump will help protect it from damage.
