Product code: f570

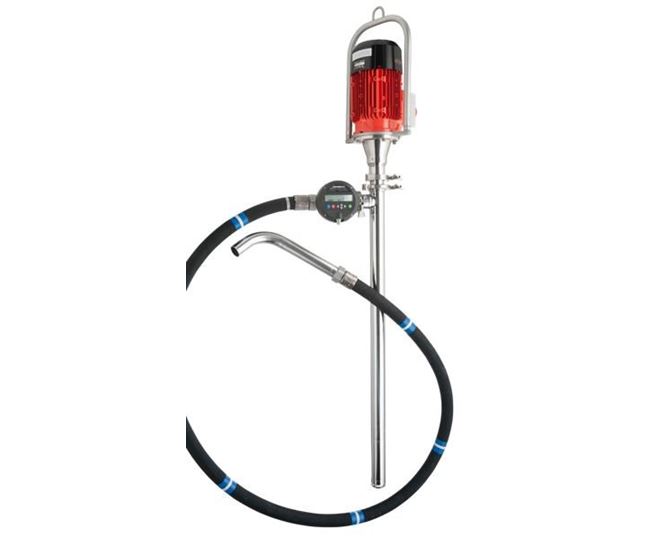

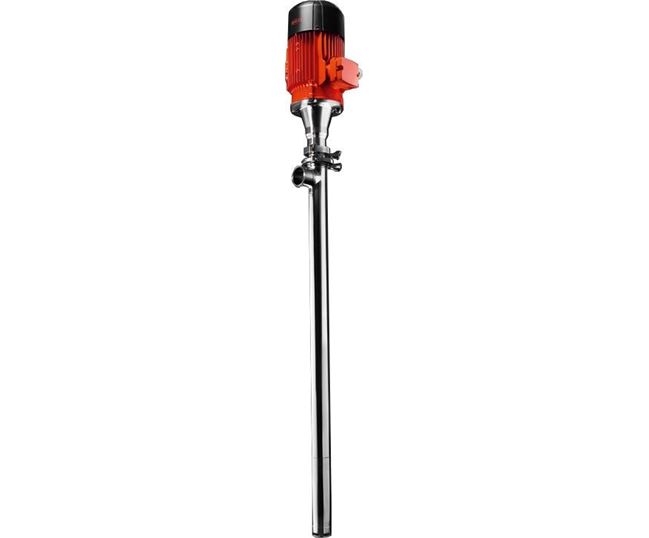

Flux Viscopower F570 - Progressing Cavity Pump

Name: Flux Viscopower F570 - Progressing Cavity Pump
Brand: Flux Pumps

Pump Type - Barrel

Max Flow Rate M³H - 4.8 M³H

Max Head - 150M

Pump Materials - AISI316

Max Viscosity - 80,000 cst

Max Solid Passage - 10mm

Self Priming - N

Inlet/Outlet Sizes - 50mm

Drive - AC Electric, Air

Max Suction Lift - 0

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

Flux Viscopower F570

The Viscopower F570 and F580 are the newest additions to the Flux range. These models of progressive cavity pumps work with both low and high viscosity substances up to 100,000 mPas and are designed to be the easy, quick, and intuitive to use.

The well thought out design allows for the Viscopower models to be the most efficient and cost saving Flux pumps yet, capable of being assembled/disassembled in just 30 seconds thanks to fewer parts, whilst maintaining the 99% greater drum emptying capability that this range is known for.

Have specific requirements? Full individual configurability of each unit combined with Viscopower's design and flexibility allows for use across a wide range of mediums, from industrial to hygienic applications each capable of meeting any demand, with an aleady large selection of pre-configured variants available, certainty of reliability and efficient are guaranteed with these units.

Features:

- Suitable for: industrial, chemical, hygienic, pharmaceutical, cosmetic, and more
- Capable drive motors types: commutator, three-phase, compressed air and brushless
- Bayonet fitting for simple motor connection
- Standardised clamp connection to suit all kinds of fittings
- Dismantled in 30 seconds
- Protection for containers with and without in-liners
- Pumping pressure up to 15 bar
- Capacity up to 80 l/min
- Low to high-viscosity up to 80,000 mPas
- Usable vertically and horizontally
- Little turbulence, pump soft solids without damaging

Viscopower Models:

F570 - Gearbox Version	F580 - Motor Flange Version
Two-Stage Gearbox i=16	For use with asynchronous motors/spur gear motors/compressed air motor
For use with compressed air or commutator motors as well as brushless motors	For media up to 100,000 mPas
For media up to 30,000 mPas	Freewheel bearing prevents the pump from running in the wrong direction
Lightweight for mobile use	For stationary use
	Comes with speed sensor for indirect, contact-free measurement of quantities
Single-Stage Gearbox i=7
For high speed asychronous motors
For media up to 80,000 mPas

FAQS

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the tubeset, impeller, mechanical seal and o-ring. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; PP, PVDF, Stainless steel and aluminium are all suitable for water. If it is a simple transfer application, then the most cost-effective material will be best. However, if it involves another variable to consider such as high temperature, then an alternative material may be a better selection.

There are so many motor types and sizes, which is correct for my application?

There are various motor types, including; air motor, mains powered electric and battery. Selection is either a personal preference or due to site limitations. For instance, if mains power or an air compressor are not available on site, then a battery motor is the obvious choice. The power of the motor will be down to the application details, such as viscosity and flow rate required. An Atex motor will be required if the fluid is flammable or if the pump will be installed in a hazardous area.

Do I need a mechanically sealed pump or a sealless pump for my application?

A mechanically sealed pump is recommended for abrasive, crystallizing, sticky and high temperature fluids. A sealless type pump is be recommended for all other fluid types.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
