Product code: Boxer 35

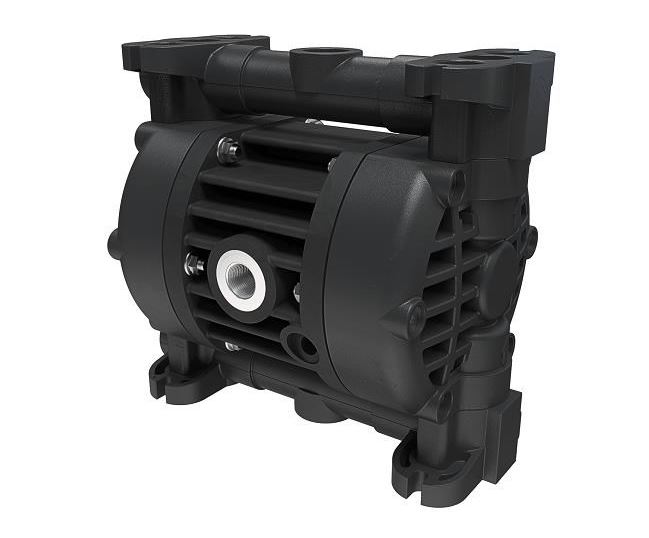

Boxer 35 1/2" AODD

Pump Type - AODD

Max Flow Rate - 2.1M³H

Max Head - 80M

Pump Materials - PP, PVDF, NBR, PTFE

Max Temp - 95°C

Max Viscosity - 15,000 cst

Max Solid Passage - 2mm

Self Priming - Y

Inlet/Outlet Sizes - 12mm

Drive - Air

Max Suction Lift - 9M

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

Boxer 35 - 1/2" AODD Pump

Flow Rate	Up to 35L/min
Head (Pressure)	Up to 80m
Inlet/Outlet Sizes	G ½” Female
Operating Temperature	Up to 65°C (PP) PVDF PP & CF 95°C
Viscosity	Up to 15000cp
Drive Options	Air Motor

The BOXER 35 Air Operated Double Diaphragm pump is one of the most versatile types of pump available. The casing of this air driven positive displacement pump can be supplied in polypropylene, PVDF.

The diaphragms in this AOD pump can be supplied in a multitude of materials including NBR, HYTREL, SANTOPRENE and PTFE.

With such a wide range of materials, viscosity handling up to 15000cp and a solids passage up to 2mm makes it suitable for handling a vast range of fluids that are far beyond the capabilities of other pump types. It also has a very gentle pumping action making it excellent for handling shear sensitive fluids.

The BOXER 35 double diaphragm pump can be utilised for many fluids in the industrial markets, including; biofuels, gold processing, chemicals, acids paints and inks. Applications for this diaphragm pump include the;chemical industry, electronic industry, metal and gold processing industry,, biofuels, paint industry, and ink and print industry.

This diaphragm pump is Atex zone 2 as standard meaning it is suitable for operation in non safe potentially flammable environments. As an option, this pump can come in an Atex zone 1 version if required. This AOD pump is also able to run in high humidity environments which may cause issues for other pumps fitted with electric motors.

The BOXER 35 AODD pump is able to run dry for long periods and is capable of self-priming up to 3m vertically. The flow rates from this diaphragm pump can be varied very easily by altering the air pressure entering the motor; this versatility allows the operator the ability to dispense very precise flow rates if required. The BOXER 35 AODD pump can achieve varying flow rates up to 35L/min.

The patented technology in the air motor ensures that the pump will not stall if there is a significant drop in air pressure entering the motor.

Food grade versions of the BOXER series are also available, these are known as the Food BOXER and SaniBoxer series.

Product summary

Casing available in PP or PVDF
Diaphragms available in NBR, hytrel, santoprene and PTFE.
Atex Zone 2 as standard II 3/3 GD c IIB T135°C, available in Atex Zone 1 if required II 2/2 GD c IIB T135°C
Can run dry
Can self prime up to 3m from dry or 9.5M when wetted.
Ability to surface mount or submerge the pump based on site requirements
Runs on non-lubricated air
Flow rate can be varied by adjusting the air pressure entering the motor
Anti stall air motor
Configurable suction and delivery port positions
Accessories available including; Equaflux 51,Foot valve, Air regulation kit W1000-8-G,Batch controller, Stroke counter, Reinforcement rings, Flange kit (DIN flanges - ANSI on request)
Single and twin manifold options
Food grade versions are available if required, these are known as the Food Boxer (FDA) and the SaniBoxer (3A) series

FAQS

Can this pump run dry?

Yes, absolutely! Due to their unique design, diaphragm pumps can run dry indefinitely. As there is no mechanical seal that requires lubrication and the only pumping component is a rubber diaphragm, the pump can run without fluid for long periods without risk of damage to the internal components or motor.

This range of pumps do not require lubricated air. Why is that important?

This means the pump does not need lubricated air to work. Lubricated air is more expensive, oil levels must be frequently checked and the use of oil in air leads to particle emission through the pumps exhaust potentially leading to contaminated product and atmosphere.

What does the term self-priming mean?

A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to 6m on the inlet side, however this figure is affected by fluid viscosity, model, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.

How do I know what pump materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the connections, casing, diaphragms, balls, ball seats and o-ring. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; NBR, Santoprene, EPDM, Hytrel and PTFE are all suitable for water. If it is a simple transfer application, then the most cost-effective material will be best. However, if it involves abrasive solids or there is another variable to consider, then an alternative material may be a better selection.

What size solids can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.

How do I know what size pump is correct for my application?

A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, viscosity, size and type of solids, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Viscosity is a major factor when selecting the correct size pump. A full speed pump will not transfer high viscosity fluid correctly, whereas a slower speed pump will have a much gentler pumping action. Therefore, oversizing the pump and running it slower will provide much better results. Knowing if the pump is running intermittently or continuously also allows the correct pump to be selected. For instance, a pump running continuously 24/7 will require a larger pump ran slower rather than a smaller pump at full speed. Running the motor slower and oversizing the pump will reduce wear of the pump components, therefore lowering maintenance costs during its lifetime.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard, this stops it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.
