Mobile High Temperature Hygienic Pump Kit for Viscous FluidsEnsuring the production process meets all the current hygienic and food safety regulations is one of the main challenges facing any wholesale bakery business, when the budget is simply not there to have a fully automated food production system, handling all the different products in a safe sanitary manner can prove quite difficult. The North Ridge bespoke food grade pump kits are the solution to this.

Customer's Mobile Pump Requirement

A traditional family run bakery established over 50 years and located in Ireland required a fully hygienic, easy to clean mobile pump to transfer fruit jams, toffee sauce, fruit curds and whipped cream. The variety of products being handled posed a real challenge for us. Some of the products are directly dispensed from a cooking kettle into the pump at an average temperature of 100 - 110 °C and others are incredibly viscous as they are stored in a fridge before being used. The customer needed a bespoke multipurpose solution for their processes, the sanitary pump kit supplied had to be capable of handling all the products in question, hence had to be suitable for high viscosities and temperatures up to 120 °C, but also have a very gentle pumping action due to the shear sensitivity of the whipped cream. High temperature liquids can have a negative impact on seals, NPSH and the overall pump lifespan so careful consideration must be taken during pump selection.

Our Bespoke 3A Sanitary Certified Hygienic Progressive Cavity Pump Solution

Their current procedure involved manually transferring sauces via totes and buckets, however the customer wanted to improve their process and automate food transfer, reduce the likelihood of burns or accidents, and eliminate manual lifting and tipping of containers. They needed a custom cost-effective unit that operates like a semi-automatic liquid filling machine. We supplied a completely bespoke pump system consisting of one DX hygienic progressing cavity pump, mounted on a mobile trolley, with an integrated control panel. The pump is 3A sanitary certified, which means it is suitable for CIP (cleaning-in-place) and SIP (sterilization-in-place) furthermore, is specifically designed to have no dead zones or sharp edges where product can build up ensuring the internal components are fully clean after operation and guaranteeing zero cross contamination when handling different products.

We also ensured it is easy to clean the unit externally by fitting a stainless-steel shroud that covers both the motor and the gearbox. The control panel has a built-in inverter that allows the operator to vary the flow rate of the pump, this feature is extremely beneficial for the customer as the pump has run slowly when handling the whipped cream.

All the construction materials are sanitary grade, the pump body, connections, and rotor are manufactured in AISI-316L stainless steel with an internal surface finish of Ra 0.8 μm. A hygienic high temperature stator is also installed to deal with the elevated temperatures of some of the products as well as a hard face high temperature mechanical seal configuration.

Besides having an integrated inverter, the control panel has several other safety and operation features, such as start/stop switch, reverse (clockwise/anti-clockwise) switch, emergency stop, alarm for motor overload protection and temperature control sensor, with alarm for dry running protection. There is also the added feature of controlling the inverter via a bluetooth mobile phone app, this enables the operator to view the status of the pump while also controlling the speed. We are proud to say that thanks to our pump kit the customer improved their production efficiency dramatically, which in the food industry literally translates as an increase in profitability. The layout enabled users to operate the kit with very little training due to the simplicity of design but also the built-in protection ensures the unit cannot be damaged.

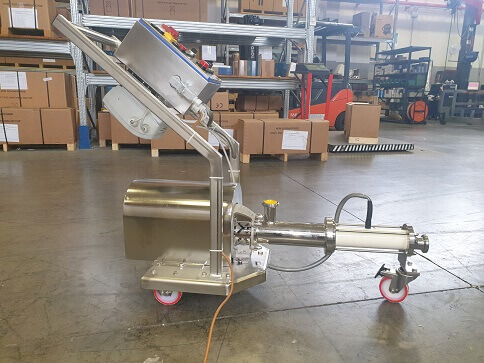

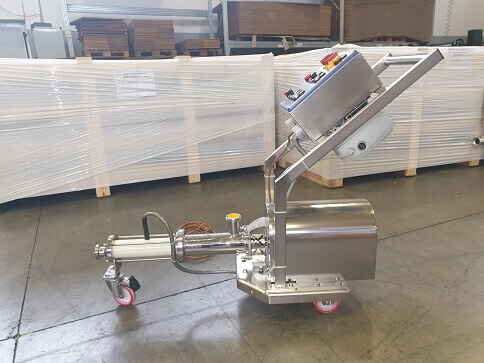

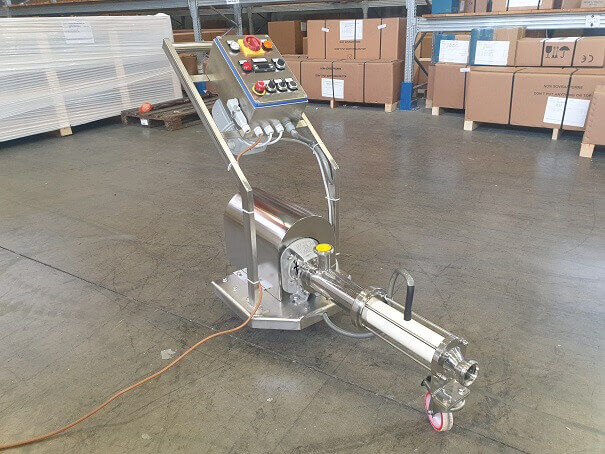

High Viscosity Food Pump   Bespoke Hygienic Pump Kit   Pump Control Panel Features

The below are some of the main construction features that make our DX hygienic progressing cavity pump the ideal solution for food transfer applications:

·         Food grade EHEDG and 3A certified

·         Wide range of hygienic connections, including DIN 11851, Clamp ISO 2852, Clamp ASME-3A, Clamp DIN 32676, RJT and SMS 1145, Macon and Garolla.

·         Excellent for shear sensitive fluids due to low pulsations

·         Can handle viscous fluids up to 1,000,000 cp.

·         Wide operating temperature range: -40°C to 150°C.

·         Excellent at pumping fluids containing solids in suspension.

·         Various accessories available, including CIP connection integrated into the pump body, dry running protection, bypass valve, control panel, inverter, heating jacket, mobile trolley, hopper, grinder, and others on request.

Specific details of the trolley mounted pump supplied to our customer are as follows:

Model:

NRDXC2L1-HT Mobile Hygienic Progressive Cavity Pump Kit

Capacity:

9.5 – 23 l/min

Max. Pressure:

2 bar

Inlet/Outlet:

DN40 – DIN 11851 Hygienic connections

Material:

AISI-316L Stainless Steel

Motor:

0.75 kw, 230V-1Ph/50Hz
