Product code: RAASM Non-toxic Pressure Sprayers

RAASM Non-toxic Pressure Sprayers

Name: RAASM Non-toxic Pressure Sprayers
Brand: RAASM Pumps
Price: 534.00 GBP
Availability: InStock

Pump Type - Barrel

Max Flow Rate M³H - 0.72 M³H

Max Head - 100M

Pump Materials - AISI304

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 0mm

Self Priming - N

Inlet/Outlet Sizes - 12mm to 25mm

Max Suction Lift - 0

DOWNLOADS

SELECT MODEL

Select Material

Select Painted

Select Accessories

£422.40 (inc VAT) £352.00 (ex VAT)

This product has a delivery lead time of 1-2 days

ADD TO CART

DESCRIPTION

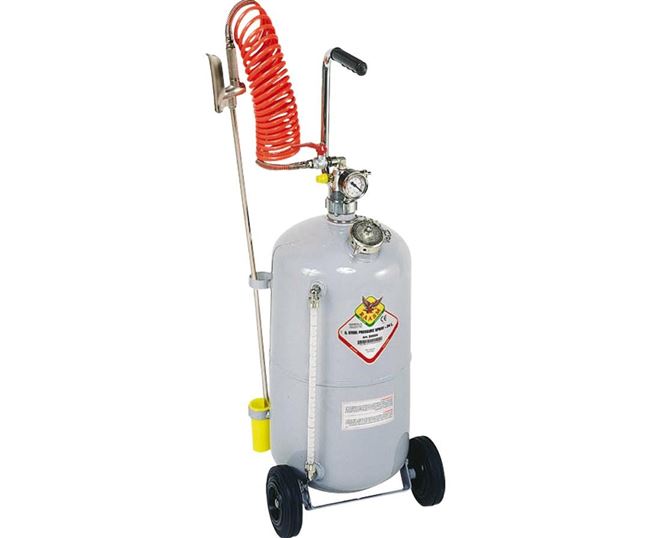

RAASM Non-toxic Pressure Sprayers

Working Pressure	Up to 10 bar
Tank Capacity	16 and 24 litres
Discharge Hose Size	5 metres
With Level Gauge	Yes – on all models
Materials Available	Painted carbon steel, painted or polished AISI 304 stainless steel

RAASM pressure sprayers are designed to be used with low viscosity oils and liquid detergents, these sprayers can be supplied with a 16 or 24 litre tank, available in two different materials: carbon steel and stainless steel AISI 304, the stainless steel unit can be either painted or polished whilst the carbon steel option is only available painted.

The Raasm pressure sprayers are non-toxic, lightweight compact units, commonly used for washing vehicles engines are spraying antioxidants on all kind of mechanical parts. These units are supplied as a complete kit with a pressurise tank and discharge hose, they can work without being connected to an external compressed air line as the tank is pressurised with 6 – 8 bar as standard.

Design Features/Benefits

• Tanks are pressurised up to 8 bar.

• Suitable for low viscosity oils and liquid detergents.

• Simple, compact robust design hence easy to use and maintain.

• Portable and lightweight.

• Available trolley mounted.

• Level gauge supplied as standard with all models

• Up to 10 bar working pressure

• Available with 16 or 24 litre tanks

• Two tank materials available, carbon steel and AISI 304 stainless steel

• Stainless steel option available painted or polished

Interested to learn more? Read our pressure sprayer guide

RAASM Portable Pressure Sprayers:

RAASM 22017 – c/w 16 litre tank in painted carbon steel.

Pressurised up to 8 bar / Supplied with 5 metre discharge hose.

Max. working pressure 10 bar.

RAASM 22024 – c/w 24 litre tank in painted carbon steel.

Pressurised up to 8 bar / Supplied with 5 metre discharge hose.

Max. working pressure 8 bar

RAASM 23024 – c/w 24 litre tank in painted AISI 304 stainless steel.

Pressurised up to 8 bar / Supplied with 5 metre discharge hose.

Max. working pressure 8 bar

RAASM 23024 – c/w 24 litre tank in polished AISI 304 stainless steel.

Pressurised up to 8 bar / Supplied with 5 metre discharge hose.

Max. working pressure 8 bar

FAQS

Are all Raasm pumps air powered?

The majority of Raasm pumps are air powered, however certain models are manually operated. Please refer to data sheets or speak to a member of our sales team for specific model information.

How do I know what tube set length is correct for my drum size?

The standard tubeset lengths are 700 mm for smaller containers - 25 litre jerry cans, 100 litre tanks etc, 1000 mm for 205 litre drums and 1200 mm for IBC's. Other bespoke lengths are available on request.

What do the terms Atex and explosion proof mean and why are they so important?

ATEX is an abbreviation of “Atmospheres Explosibles”. It is a regulation set out by the European Union to ensure the safety of products that are used to handle flammable products or are installed in environments containing flammable gases, vapours, mists or combustible dusts. For instance, if the pump is being installed in an explosive environment, then only the motor needs to meet the Atex standard stopping it from causing a spark during operation and igniting the atmosphere. However, if the fluid being pumped is flammable, then the pump will also need to meet Atex standards to ensure that no sparks are caused inside the pump itself when the fluid goes through it. It is crucial that an Atex rated pump or motor are used for applications involving explosive environments or flammable fluids, using a non-Atex pump or motor in these situations is extremely dangerous and contravenes health and safety standards.

What viscosity can this pump handle?

Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.

What accessories are available for this pump?

Raasm grease and oil pumps are available with various accessories to suit all application requirements, these include; nozzle guns, hose reels, mobile trolleys, drum covers, follower plates, pressure regulators, pressure gauges and air lubricators.
