Product code: North Ridge Basket Strainers Complete Range

North Ridge Basket Strainers Complete Range

Name: North Ridge Basket Strainers Complete Range
Brand: North Ridge Pumps

Pump Type - Accessories

Max Flow Rate M³H - 400 M³H

Max Head - 30M

Pump Materials - AISI316, Bronze, Cast Iron, HDPE, PP

Max Temp - 60°C

Max Viscosity - 200 cst

Max Solid Passage - 10mm

Self Priming - N

Inlet/Outlet Sizes - 65mm to 300mm

Max Suction Lift - N

DOWNLOADS

Volume Enquiry? Different Specification?

Request a Quotation

DESCRIPTION

North Ridge Basket Strainers Complete Range

Flow Rate	Up to 400 m³/h
Head (Pressure)	Up to 3 bar
Sizes Available	DN65 - DN300
Temperature	Up to 60 °C
Construction Materials	Polypropylene / Bronze / Cast Iron / AISI 316 Stainless steel and HDPE (High Density Polyethylene)

At North Ridge Pumps we have a wide range of basket strainers types, including completely bespoke HDPE strainers, other materials available are cast iron, bronze, stainless steel and polypropylene, our basket strainers also called pre-filters can be supplied in both vertical and horizontal installations.

Our basket strainers are recommended for applications with solids in suspension, they are fitted on the pumps inlet and therefore work as filter stopping any solids going through the pump and consequently preventing the impeller from clogging. Available in a variety of materials, designs and sizes, we can therefore supply a suitable basket strainer for any domestic or industrial swimming pool pump in both horizontal and vertical installations.

Typical Models:

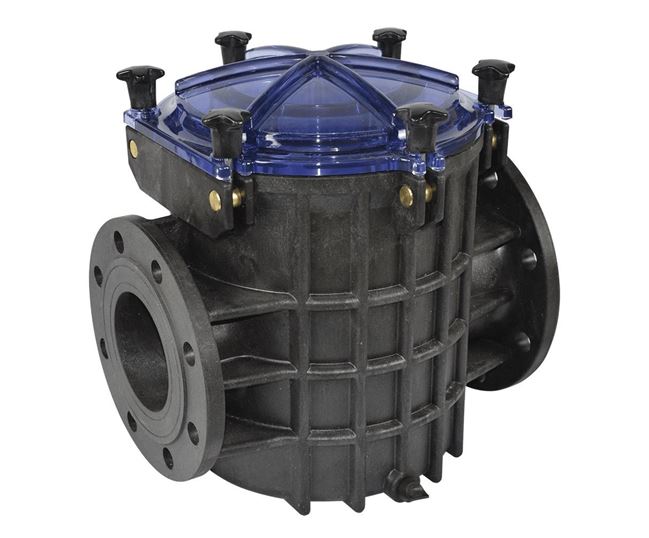

NRG-PP/AISI Industrial Strainer Range

Size: DN100 / DN125 / DN150

Housing: Polypropylene

Basket: AISI 304 Stainless Steel / Polypropylene

Max temperature: 45 °C

Max pressure: 2 bar

Flow range: 20 – 245 m³/h

NRG-HDPE Industrial Bespoke Strainer Range

Size: DN65 - DN300

Housing: High Density Polyethylene

Basket: Polypropylene

Max temperature: 45 °C

Max pressure: 2 bar

Flow range: 40 – 400 m³/h

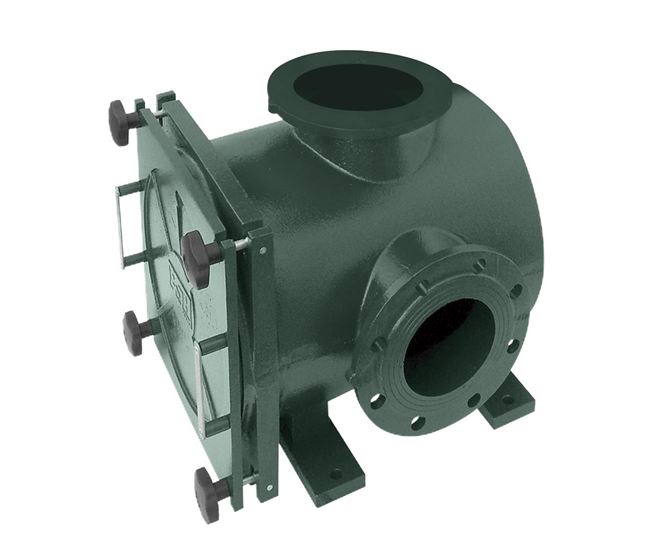

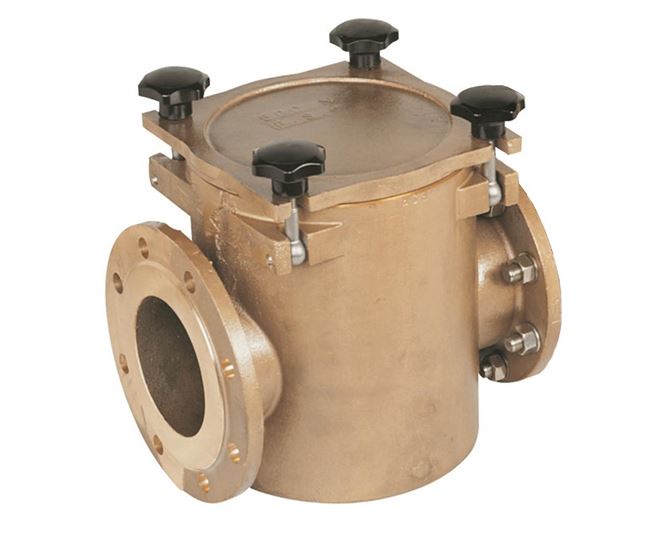

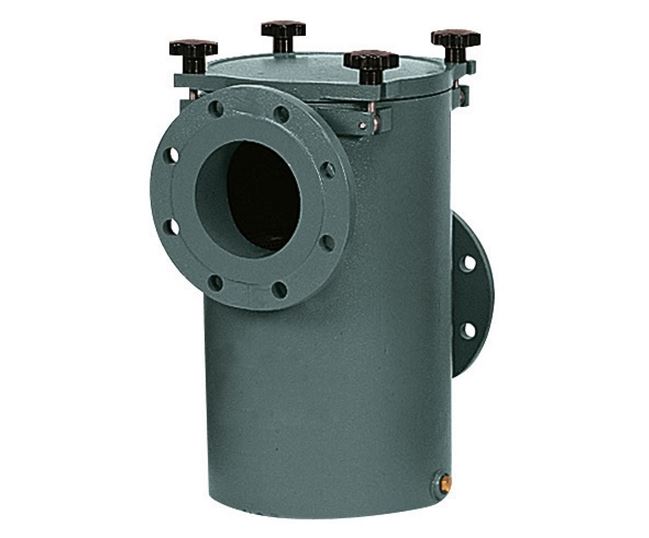

NR-CAST Industrial Strainer Range

Size: DN70 – DN80 / DN100 / DN125 / DN150 / DN200

Housing: Cast Iron / Bronze

Basket: AISI 304 Stainless Steel

Max temperature: 60 °C

Max pressure: 2 bar

NR-AISI 316-304 Industrial Strainer Range

Size: DN80 / DN100 / DN125 / DN150 / DN200 / DN250 / DN300

Housing: AISI 304 or AISI 316 Stainless Steel

Basket: AISI 304 or AISI 316 Stainless Steel

Max temperature: 60 °C

Max pressure: 3 bar

Design Features/Benefits

• Available in both vertical and horizontal installations

• Up to 3 bar pressure.

• Bespoke options available in HDPE

• Up to 400 m³/h.

• Wide range of materials available.

• Operating temperature up to 60 °C

• Suitable materials and sizes for our complete swimming pool pump range

Typical Applications:

• Water parks

• Small to large commercial swimming pools, aquariums

• Filtration equipment

• Pool cleaning equipment

• Sea water, salt ionizers, salt chlorinators and fresh water

Learn more about strainers in our guide

FAQS

What is a basket strainer and how do I know if my system requires one?

A basket strainer/filter is installed before the pump inlet to stop any unwanted suspended solids entering the pump and causing any possible damage. If you suspect that solids not suitable for your pump may be present in the system, then a basket strainer/filter may be required.

How do I know what mesh size I require for my basket strainer?

The mesh size is dictated by the maximum solids size your pump can handle. Always ensure that the mesh/filter size does not allow the passage of solids that are larger than your pump can handle.

How do I know what basket strainer materials are correct for my application?

Firstly, always check the compatibility of the materials available against the fluid being pumped. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; cast iron, plastic, bronze and stainless steel are all suitable for fresh water. If it is a simple transfer application, then the most cost-effective material cast iron or plastic will be best. However, if it is a sanitary application, then stainless steel or bronze are better choices.
