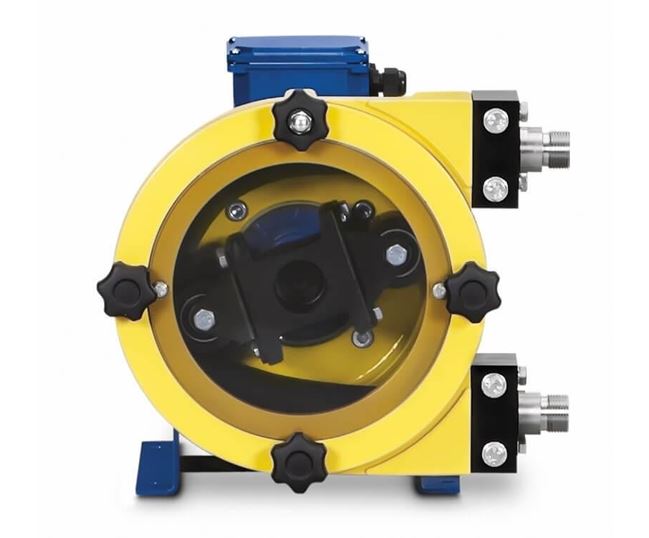

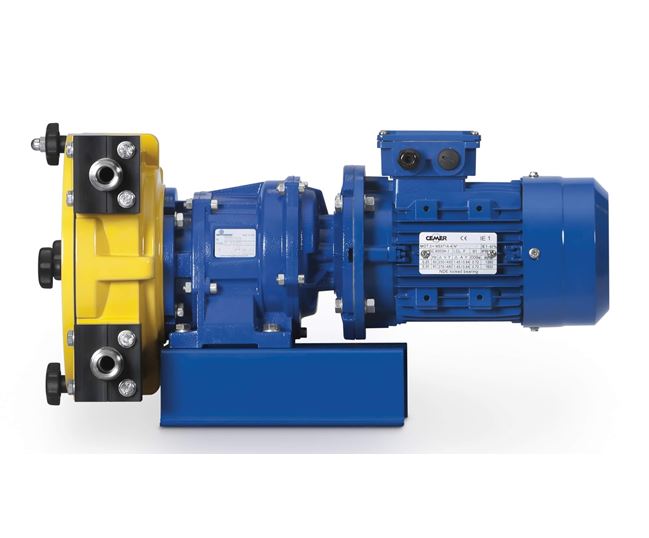

    Boyser AMP10/B Peristaltic Pumps

    RRP£81.00 (ex VAT)

    Max Flow Rate - 0.145 M³H

    Max Head - 80M

    Inlet/Outlet Sizes - 9.5mm to 13mm

    Max Temp - 80°C

    Max Viscosity - 20,000 cst

    Max Solid Passage - 10mm

    Self Priming - Y

    Max Suction Lift - 8M

    Pump Materials - NR, NBR, EPDM, NBR-A, Hypalon, Norprene, Tygon

    Pump Type - Peristaltic

    Drive - AC Electric, Bareshaft

    DOWNLOADS

    Volume Enquiry? Different Specification?

    Request a Quotation
    quote

    DESCRIPTION


    BOYSER AMP Peristaltic Hose Pumps



    AMP-10/B Model / 3/8” BSP Connections


    Capacity

    0.023 ltr/rev.

    Flow Rate

    Up To 145 l/h

    Head (Pressure)

    Up to 8 bar

    Inlet/Outlet Sizes/Types

    3/8” BSP or NPT, 1/2” Tri-Clamp & DIN 11851

    Connection Materials

    PP, PVDF, PTFE, S.S AISI316

    Temperature Range

    -15 to 60 °C – (Up to 80 °C for NBR-A

    Viscosity Range

    20,000 cSt

    Solid passage

    Up to 10 mm

    Max. Suction Lift

    Able to Self-prime up to 8 m.w.c

    Hose Materials Available

    NR, NBR, EPDM, NBR-A, HYPALON, NORPRENE


    These heavy duty industrial peristaltic pumps with roller technology are supplied with reinforced rubber hoses, integrated oversized reinforced bearings and rotors designed to perform under the most extreme environments, the AMP range is available with hose leakage detection, this feature is recommended for applications where the pump is left unattended or when pumping highly corrosive fluids.


    Design features & Benefits:



    •        Sealless – Minimising the risk of leaking.

    •        Efficient – Low power consumption.

    •        Self-priming – Up to 9 metres.

    •        Sheer sensitive – Very gentle on the product being pumped.

    •        Capable of running dry indefinitely – Without the need to install any other device.

    •        Reversible flow ability – Ideal for tank emptying and fluid transfer applications.

    •        High dispensing accuracy – Excellent for dosing applications.

    •        Easy to clean as the inner hose is the only part in contact with the product.

    •        Suitable for food-grade applications – FDA approved.

    •        Resistant to abrasion and corrosion – Optional connections and coating materials.

    •        Requires low maintenance – Economical to run.

    •        Hose leakage detector available – Recommended when pump is working unattended.





    Configurations Available



    AMP-10/B Bareshaft Pump – (Pump Only - Without   Drive Unit)


    Model: AMP10BA0 – (0.023 ltr/rev)




    Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230-400V/3Ph)

    Pumps with Gearbox/Motor Only (Fixed Speed) – 50-60Hz Freq.

    Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.

    Note, power/kW installed might need to be increased for working pressures above 4   bar


    Model No.PowerSpeedFlowRatioFrequency

    AMP10BA10

    0. 12 KW

    15 RPM

    21 l/h

    60.7

    20 – 60 Hz

    AMP10BA11

    0. 12 KW

    20 RPM

    28 l/h

    44.1

    20 – 60 Hz

    AMP10BA12

    0. 18 KW

    29 RPM

    40 l/h

    48.8

    20 – 60 Hz

    AMP10BA13

    0. 18 KW

    40 RPM

    55 l/h

    35.4

    20 – 60 Hz

    AMP10BA14

    0. 18 KW

    46 RPM

    63 l/h

    30.5

    20 – 60 Hz

    AMP10BA15

    0. 25 KW

    57 RPM

    79 l/h

    24.5

    20 – 60 Hz

    AMP10BA16

    0. 25 KW

    70 RPM

    97 l/h

    20.3

    20 – 60 Hz

    AMP10BA17

    0. 25 KW

    85 RPM

    117   l/h

    16.5

    20   – 60 Hz



    Gearbox/Motor: 50 Hz-1450 RPM / (230-400V/3Ph)

    Pumps with mechanical speed controller – 50 Hz Freq.

    Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.

    Note, power/kW installed might need to be increased for working pressures above 4 bar


    Model No.PowerSpeedFlowRatioFrequency

    AMP10BA21

    0. 12 KW

    3 - 16 RPM

    4 - 22 l/h

    35.4

    50 Hz

    AMP10BA23

    0. 25 KW

    5 - 29 RPM

    7 . 40 l/h

    30.5

    50 Hz

    AMP10BA25

    0. 25 KW

    10 - 53 RPM

    14 - 73 l/h

    16.5

    50 Hz

    AMP10BA26

    0. 25 KW

    15 - 80 RPM

    21 - 110 l/h

    10.9

    50 Hz



    Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230V/1Ph)

    Pumps with Integrated Frequency Drive – 50-60Hz.

    Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.

    Note, power/kW installed might need to be increased for working pressures above 4   bar



    Model No.PowerSpeedFlowRatioFrequency

    AMP10BA31

    0. 37 KW

    9 - 34 RPM

    12 - 47 l/h

    60.7

    20 - 75 Hz

    AMP10BA32

    0. 37 KW

    6 - 60 RPM

     22 - 83 l/h

    35.4

    20 - 75 Hz

    AMP10BA33

    0. 37 KW

    23 - 86 RPM

    32 - 119 l/h

    24.5

    20 - 75 Hz



    Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230V/1Ph)

    Pumps with Integrated Frequency Drive, Motor with Forced Cooling & PTC   Sensors  – 50-60Hz.

    Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.

    Note, power/kW installed might need to be increased for working pressures above 4 bar



    Model No.PowerSpeedFlowRatioFrequency

    AMP10BA61

    0. 37 KW

    1 - 34 RPM

    1 - 47 l/h

    60.7

    3 - 75 Hz

    AMP10BA62

    0. 37 KW

    4 - 105 RPM

     5 - 145 l/h

    20.3

    3 - 75 Hz




    Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230-400V/3Ph)

    Pumps with VFD Rated Drive, Motor with Forced Cooling & PTC Sensors  – 50-60Hz.

    Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.

    Note, power/kW installed might need to be increased for working pressures above 4 bar

    **Frequency Drive Not Included**



    Model No.PowerSpeedFlowRatioFrequency

    AMP10BA41

    0. 18 KW

    1 - 34 RPM

    1 - 47 l/h

    60.7

    3 - 75 Hz

    AMP10BA42

    0. 18 KW

    2 - 44 RPM

     3  -   60 l/h

    48.8

    3 - 75 Hz

    AMP10BA43

    0. 25 KW

    3 - 69 RPM

    4  - 95 l/h

    30.5

    3 - 75 Hz

    AMP10BA44

    0. 25 KW

    4 - 105 RPM

    6 - 145 l/h

    20.3

    3 - 75 Hz


    FAQS

    Yes, absolutely! Due to their unique design, peristaltic pumps can run dry indefinitely. As there is no mechanical seal that requires lubrication and the only pumping component is a rubber hose, the pump can run without fluid for long periods without risk of damage to the internal components or motor.
    A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to around 9m on the inlet side, however this figure is affected by fluid viscosity, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.
    Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. A typical rule of thumb with peristaltic pumps is that the maximum solids size is equal to the internal diameter of the hose. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
    Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
    A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, viscosity, size and type of solids, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Viscosity is a major factor when selecting the correct motor speed. A full speed pump will not transfer high viscosity fluid correctly, whereas a slower speed pump will have a much gentler pumping action. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a slower speed motor rather than a full speed motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.
    Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the connections and the hose. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; NR, NBR, EPDM, NBR-A, HYPALON, NORPRENE are all suitable for water. If it is a simple transfer application, then the most cost-effective material will be best. However, if it involves abrasive solids or there is another variable to consider, then an alternative material may be a better selection.
