Product code: AMP19-C

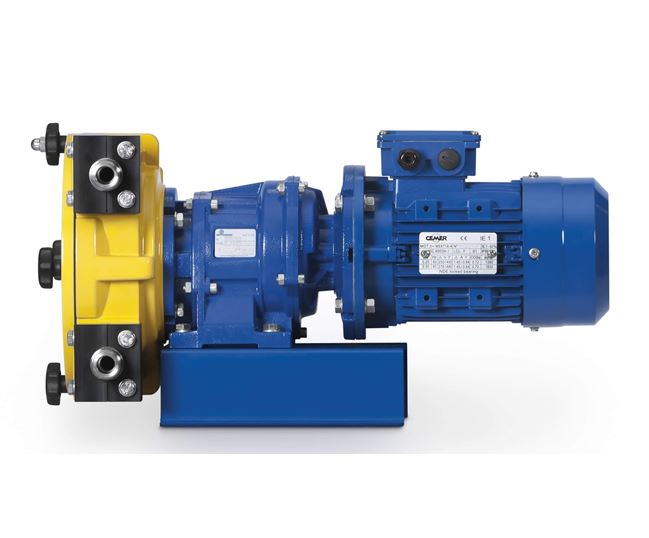

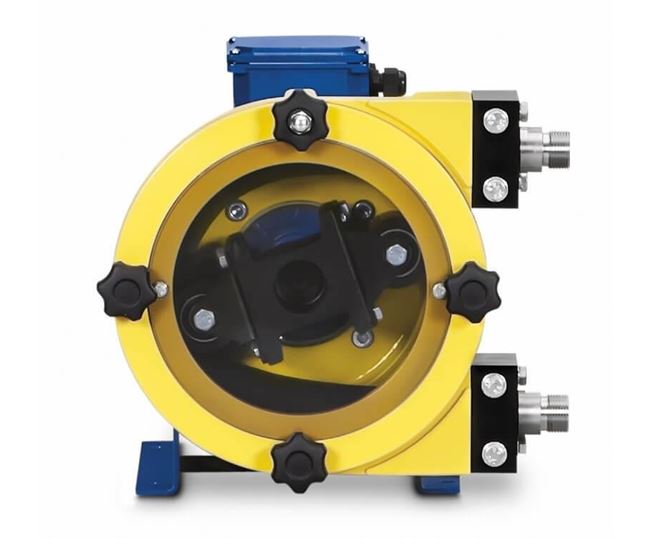

Boyser AMP19/C Peristaltic Pumps

RRP£126.00 (ex VAT)

Max Flow Rate - 0.775M³H

Max Head - 20M

Inlet/Outlet Sizes - 25mm

Max Temp - 110°C

Max Viscosity - 20,000 cst

Max Solid Passage - 19mm

Self Priming - Y

Max Suction Lift - 8M

Pump Materials - Norprene, Tygon

Pump Type - Peristaltic

Drive - AC Electric, Bareshaft

DOWNLOADS

DESCRIPTION

BOYSER AMP Peristaltic Hose Pumps



AMP-19/C Model / 1” BSP Connections


Capacity

0.123 ltr/rev.

Flow Rate

Up To 775 l/h

Head (Pressure)

Up to 2 bar

Inlet/Outlet Sizes/Types

1” BSP or NPT, 1” Tri-Clamp & DIN 11851

Connection Materials

PP, PVDF, PTFE, S.S. AISI316

Temperature Range

-15  to 110 °C

Viscosity Range

20,000 cSt

Solid passage

Up to 19 mm

Max. Suction Lift

Able to Self-prime up to 8 m.w.c

Tube Materials Available

NORPRENE, TYGON




These heavy duty industrial peristaltic pumps with roller technology are supplied with reinforced rubber hoses, integrated oversized reinforced bearings and rotors designed to perform under the most extreme environments, the AMP range is available with hose leakage detection, this feature is recommended for applications where the pump is left unattended or when pumping highly corrosive fluids.


Design features & Benefits:



        Sealless – Minimising the risk of leaking.

        Efficient – Low power consumption.

        Self-priming – Up to 9 metres.

        Sheer sensitive – Very gentle on the product being pumped.

        Capable of running dry indefinitely – Without the need to install any other device.

        Reversible flow ability – Ideal for tank emptying and fluid transfer applications.

        High dispensing accuracy – Excellent for dosing applications.

        Easy to clean as the inner hose is the only part in contact with the product.

        Suitable for food-grade applications – FDA approved.

        Resistant to abrasion and corrosion – Optional connections and coating materials.

        Requires low maintenance – Economical to run.

        Hose leakage detector available – Recommended when pump is working unattended.




Configurations Available


AMP-19/D Bareshaft Pump – (Pump Only - Without Drive Unit)


Model: AMP19DA0 – (0.123 ltr/rev)


Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230-400V/3Ph)

Pumps with Gearbox/Motor Only (Fixed Speed) – 50-60Hz Freq.

Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.


Model No.PowerSpeedFlowRatioFrequency

AMP19DA10

0. 18 KW

15 RPM

111 l/h

60.7

20 – 60 Hz

AMP19DA11

0. 18 KW

20 RPM

148 l/h

44.1

20 – 60 Hz

AMP19DA12

0. 25 KW

32 RPM

236 l/h

44.1

20 – 60 Hz

AMP19DA13

0. 25 KW

40 RPM

295 l/h

35.4

20 – 60 Hz

AMP19DA14

0. 25 KW

46 RPM

339 l/h

30.5

20 – 60 Hz

AMP19DA15

0. 37 KW

57 RPM

421 l/h

24.5

20 – 60 Hz

AMP19DA16

0. 37 KW

70 RPM

517 l/h

20.3

20 – 60 Hz

AMP19DA17

0. 37 KW

85 RPM

627   l/h

16.5

20   – 60 Hz



Gearbox/Motor: 50 Hz-1450 RPM / (230-400V/3Ph)

Pumps with mechanical speed controller – 50 Hz Freq.

Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.


Model No.PowerSpeedFlowRatioFrequency

AMP19DA21

0. 37 KW

8 - 50 RPM

59 – 369 l/h

20.3

50 Hz

AMP19DA22

0. 37 KW

10 - 61 RPM

 74 - 450 l/h

16.5

50 Hz

AMP19DA24

0. 37 KW

16 - 91 RPM

118 - 671 l/h

10.9

50 Hz



Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230V/1Ph)

Pumps with Integrated Frequency Drive – 50-60Hz.

Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.



Model No.PowerSpeedFlowRatioFrequency

AMP19DA31

0. 37 KW

9 - 34 RPM

66 - 251 l/h

60.7

20 - 75 Hz

AMP19DA32

0. 37 KW

16 - 60 RPM

118 - 443 l/h

35.4

20 - 75 Hz

AMP19DA33

0. 37 KW

23 - 86 RPM

170 - 635 l/h

24.5

20 - 75 Hz



Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230V/1Ph)

Pumps with Integrated Frequency Drive, Motor with Forced Cooling & PTC Sensors  – 50-60Hz.

Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.



Model No.PowerSpeedFlowRatioFrequency

AMP19DA61

0. 37 KW

1 - 34 RPM

7 - 251 l/h

60.7

3 - 75 Hz

AMP19DA62

0. 37 KW

4 - 105 RPM

30 - 775 l/h

20.3

3 - 75 Hz



Gearbox/Motor: 50 Hz-1450 RPM / 60 Hz-1720 RPM - (230-400V/3Ph)

Pumps with VFD Rated Drive, Motor with Forced Cooling & PTC Sensors  – 50-60Hz.

Flow rate shown on l/h – (Nominal flow, tested on clean water at 2 bar.

**Frequency Drive Not Included**



Model No.PowerSpeedFlowRatioFrequency

AMP19DA41

0. 25 KW

1 - 34 RPM

7 - 251 l/h

60.3

3 - 75 Hz

AMP19DA42

0. 25 KW

2 - 48 RPM

15 - 354 l/h

44.1

3 - 75 Hz

AMP19DA43

0. 37 KW

3 - 69 RPM

22 - 509 l/h

30.5

3 - 75 Hz

AMP19DA44

0. 37 KW

4 - 105 RPM

30 - 775 l/h

20.3

3 - 75 Hz


FAQS

Yes, absolutely! Due to their unique design, peristaltic pumps can run dry indefinitely. As there is no mechanical seal that requires lubrication and the only pumping component is a rubber hose, the pump can run without fluid for long periods without risk of damage to the internal components or motor.
A pump must be primed in order to operate correctly, this means that the pump casing and inlet pipe must be filled with fluid and the air removed before operation. This needs to be done manually by the pump operator for a non-self-priming pump each time the pump is used to avoid damage from dry running. A self-priming pump removes these issues by completing the priming process automatically. The air is removed from the inlet pipework and pump casing when the pump is activated. Self-priming pumps are particularly useful for installations with a suction lift on the inlet side of the pump, the pump will draw the fluid up the pipework by creating a vacuum and removing any air that is present. In ideal conditions, a self-priming pump can lift fluids up to around 9m on the inlet side, however this figure is affected by fluid viscosity, pipework bore and other installation conditions, therefore this figure can be much lower from case to case. Allowances must also be made for wear and tear; suction lift capabilities will be much lower for older and worn pumps.
Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. A typical rule of thumb with peristaltic pumps is that the maximum solids size is equal to the internal diameter of the hose. For details on solids passage for specific models, please refer to datasheets or contact a member of our sales team.
Please be aware that the figures displayed relate to the largest pump from this range of products, not specific models. For details on viscosity for specific models, please refer to datasheets or contact a member of our sales team.
A clear picture of the pump system is required to make an accurate selection. The main pieces of information required include; a description of the application, bore of pipework, the fluid, viscosity, size and type of solids, flow rate and pressure/head. With these pieces of information, a pump can be sized correctly to ensure it delivers the required flow rate and pressure and that is also operates at its best efficiency point to lower lifetime costs. Viscosity is a major factor when selecting the correct motor speed. A full speed pump will not transfer high viscosity fluid correctly, whereas a slower speed pump will have a much gentler pumping action. Knowing if the pump is running intermittently or continuously also allows the correct motor speed to be selected. For instance, a pump running continuously 24/7 will require a slower speed motor rather than a full speed motor. Running the motor slower and oversizing the pump will reduce wear of the motor and the pump, therefore lowering maintenance costs during their lifetime.
Firstly, always check the compatibility of the materials available against the fluid being pumped. The main materials to check are the connections and the hose. It may be that more than one material is suitable for your fluid and selection could be based on the application type. For instance; NR, NBR, EPDM, NBR-A, HYPALON, NORPRENE are all suitable for water. If it is a simple transfer application, then the most cost-effective material will be best. However, if it involves abrasive solids or there is another variable to consider, then an alternative material may be a better selection.
