Pump Type - Peristaltic
Max Flow Rate - 18.5M³H
Max Head - 80M
Max Temp - 80°C
Max Viscosity - 30,000 cst
Max Solid Passage - 65mm
Self Priming - Y
Pump Materials - EPDM, NBR, NBR-A, Norprene, NR
Inlet/Outlet Sizes - 65mm to 77mm
Drive - AC Electric, Bareshaft
Max Suction Lift - 9M

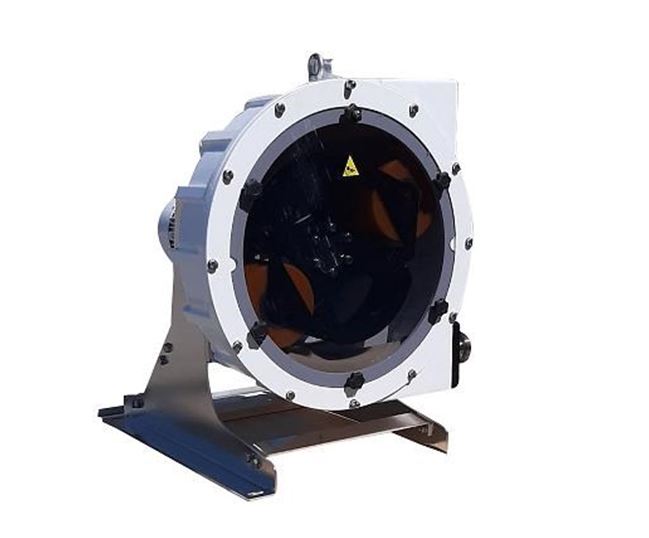

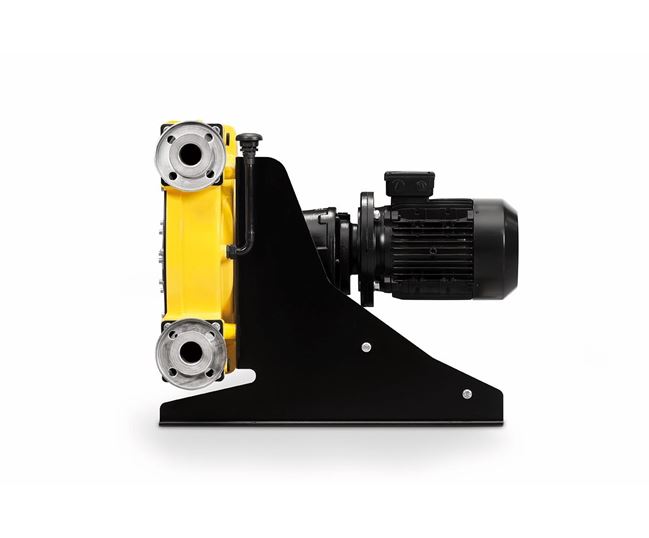

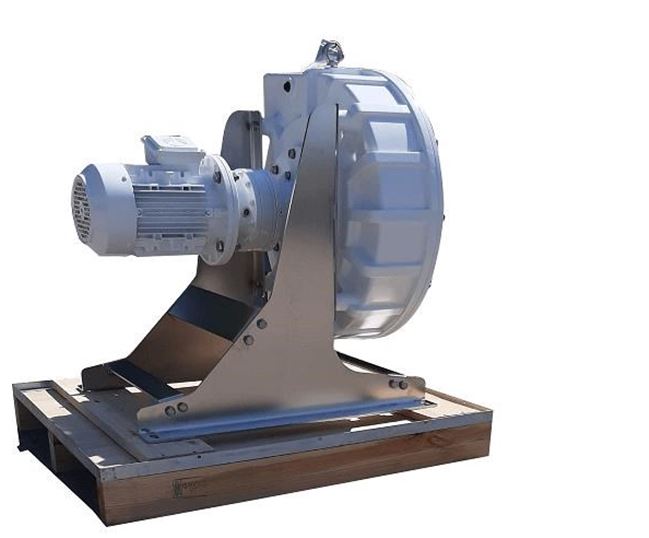

FMP-70 Model / DN65 Connections
The FMP hose pumps are our largest peristaltic pumps fitted with roller technology, these units are equipped with reinforced hoses and rotors, heavily engineered integrated bearings, enlarged PU rollers as well as our patented clamping system. Thanks to its robust design and wide capacity range these peristaltic hose roller pumps are typically used in heavy duty industrial applications where the pump is a critical component in the process hence reliability is quite simply a must. Our hose pumps are available with integrated frequency drives, VFD rated drive units, certified ATEX, (explosion proof) motors and hydraulic motors.
The FMP series peristaltic pump, also known as a hose pump, is part of the positive displacement volumetric pump group. These pumps have quite a simplistic yet extremely robust design that enables them to be used for the most difficult of applications, such as transferring high viscosity products and fluids where a high concentration of solids is present, many of them being applications where other pumps would fail. Typical fluids include; Glue, Resins, Ink, Paint, Anti-foaming, Dyes, Detergents, Oils, Concrete, Mud, Sludge and Sewage/Effluent.

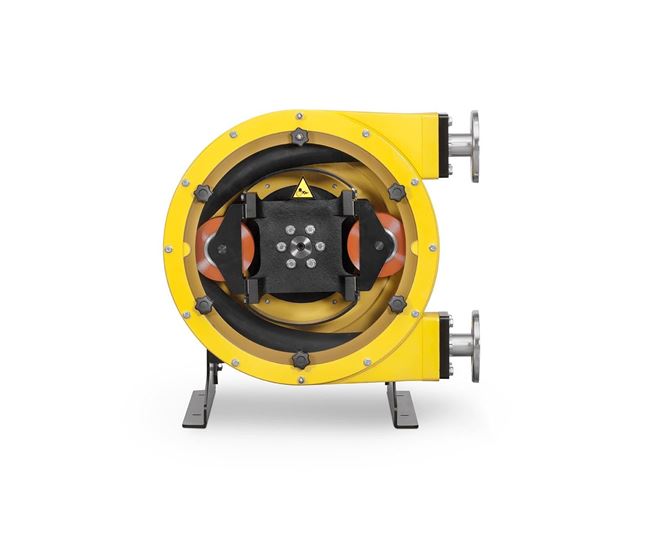

As one of their popular names indicates ‘hose pumps’, the pumping action is performed by a combination of a rubber hose located inside the casing of the pump and a rotor with a set of rollers or pads/shoes compressing the hose as they rotate. By pressing the hose whilst continually rotating, the rollers or pads push the fluid from the inlet side and towards the discharge side of the hose. This gentle pumping action means the flow rate achieved is directly proportional to the speed the rollers rotate and squeeze the tube/hose.
The unique pumping action creates a negative pressure on the suction side of the pump of up to 9 m.w.c., meaning the pump can self-prime and reach a suction lift of up to 9 metres vertically, this combined with the ability to run dry indefinitely and handle gasses makes the peristaltic hose pump the ideal solution for most pumping applications.
Another advantage of these pumps is how simple and economical they are to maintain. This is the due the fact that the hose is both the only wearing part in the pump and the only part that is in contact with the fluid.
The FMP range can be supplied either fixed speed or variable speed and is fully reversible. There are a wide range of accessories available to provide a complete custom solution for most applications, these are detailed below.
Design features & Benefits:
• Sealless – Minimising the risk of leaking.
• Efficient – Low power consumption.
• Self-priming – Up to 9 metres.
• Shear sensitive – Very gentle on the product being pumped.
• Capable of running dry indefinitely – Without the need to install any other device.
• Reversible flow ability – Ideal for tank emptying and fluid transfer applications.
• High dispensing accuracy – Excellent for dosing applications.
• Easy to clean as the inner hose is the only part in contact with the product.
• Suitable for food-grade applications – FDA approved.
• Resistant to abrasion and corrosion – Optional connections and coating materials.
• Requires low maintenance – Economical to run.
• Hose leakage detector available – Recommended when pump is working unattended and for corrosive liquids.
Typical Applications & Industries:
Up To 18.5 m³/h
Up to 8 bar
DN65 or 2 1/2” BSP – 3” Tri-Clamp, DIN 11851, NPT, ANSI
PP, PVDF, PTFE, S.S. AISI-316
-20 to 60 °C – (Up to 80 °C for NBR-A)
Up to 65 mm
Max. Suction Lift
Able to Self-prime up to 9 m.w.c
Tube Materials Available
NR, NBR, EPDM, NBR-A, NORPRENE
